BikeWise

Giant Reign 29 1 2021

MTB Trail
Groupset
Shimano XT
Frame material
Alloy
Wheel size
29"
Suspension type
Full suspension
Front travel
170mm
Rear travel
146mm

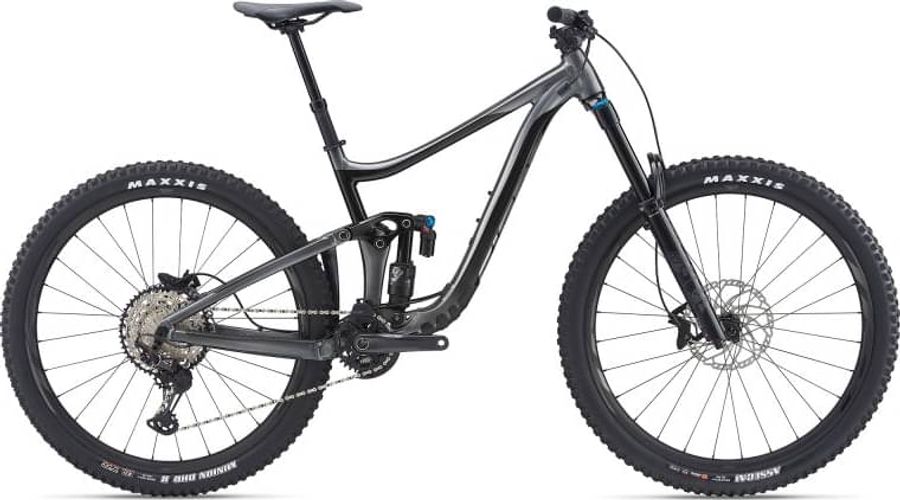

Giant Reign 29 1 2021

About the Giant Reign 29 1 2021

The Giant Reign 29 1 2021 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a Shimano XT drivetrain. Its features include dropper seatpost, boost 110 , and hydraulic disc brakes.

Features

The Giant Reign 29 1 2021 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info

Specifications

Components
Steam
Giant Contact SL 35
Saddle
Giant Romero
Seatpost
Giant Contact Switch dropper post with remote, 30.9
Handlebar
Giant Contact SL TR35, 800x35mm, 20mm rise
Brake lever
Shimano Deore
Brakes
Shimano Deore
Drivetrain
Crankset
Shimano Deore XT, 32t with MRP AMG V2 guide
Shifter
Shimano Deore XT
Bottom bracket
Shimano, press fit
Rear derailleur
Shimano Deore XT RD-M8100 284 g SGS 12s
Average weight (g)
284
B axle hollow
B axle material
Stainless steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M8100-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Cassette
Shimano SLX CS-M7100-12 HYPERGLIDE+
Aluminum gear finish
Anodized
Aluminum gear pieces
1
Aluminum spider arm finish
Painted
Aluminum spider arm pieces
1
Combination names
10-45T
10-51T
Compatible chain
HG 12-speed
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M7100-12
Steel gear finish
Plated
Steel gear pieces
11
Type
HYPERGLIDE+
Weights
10-45T: 513g
10-51T: 534g
Chain
KMC X12
Frameset
Frame
ALUXX SL-Grade Aluminium, 146mm Maestro suspension
Front suspension
Fox 38 Performance
Rear suspension
Fox Float X2 Performance
Wheels
Rims
Giant TR-1 29 WheelSystem
Tires
[F] Maxxis Assegai 29x2.5 WT, MaxxTerra, EXO+, TR [R] Maxxis Minion DHR II 29x2.4 WT, MaxxTerra, EXO+, TR tubeless
Spokes
Giant TR-1 29 WheelSystem
Rear hub
Giant TR-1 29 WheelSystem
Front hub
Giant TR-1 29 WheelSystem

Geometry

Size SM MD LG XL
a
Seat tube length
431,0
431,0
464,0
496,0
b
Seat tube angle
76,4º
76,4º
76,4º
76,4º
c
Top tube length
571,0
598,0
637,0
663,0
d
Head tube length
100,0
100,0
110,0
120,0
e
Head tube angle
64,6º
64,6º
64,6º
64,6º
f
Rake
44,0
44,0
44,0
44,0
g
Trail
132,7
132,7
132,7
132,7
h
Wheelbase
1188,0
1217,0
1259,0
1286,0
i
Chainstay length
436,0
436,0
436,0
436,0
j
Bottom bracket drop
27,0
27,0
27,0
27,0
k
Stack height
619,0
619,0
628,0
637,0
l
Reach
420,0
448,0
485,0
508,0
m
Standover height
754,0
756,0
778,0
801,0
x
Bottom bracket height
347,0
347,0
347,0
347,0
y
Front center
753,0
782,0
824,0
851,0
