Groupset
SRAM NX Eagle
Frame material
Alloy
Wheel size
29"
Suspension type
Full suspension
Front travel
170mm
Rear travel
146mm

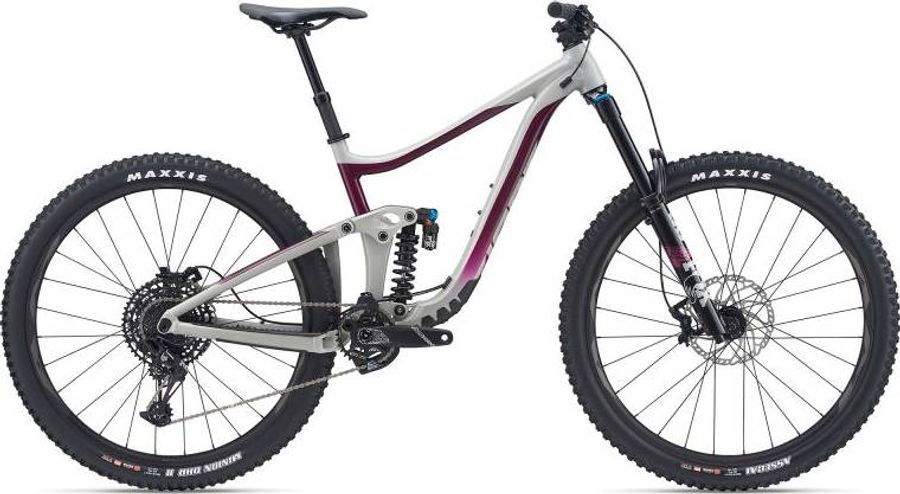

About the Giant Reign 29 SX 2021
The Giant Reign 29 SX 2021 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a SRAM NX Eagle drivetrain. Its features include dropper seatpost, boost 110 , and boost 148.
Features
Dropper seatpost
More info
Dropper seatpost
Boost 110
More info
Boost 110
Boost 148
More info
Boost 148
Hydraulic disc brakes
More info
Hydraulic disc brakes
Tapered head tube
More info
Tapered head tube
Tubeless ready
More info
Tubeless ready
Specifications
|
Pedals
|
platform
|
|---|
|
Steam
|
Giant Contact SL 35
|
|---|---|
|
Saddle
|
Giant Romero
|
|
Seatpost
|
Giant Contact Switch dropper post with remote, 30.9
|
|
Handlebar
|
Giant Contact SL TR35, 800x35mm, 20mm rise
|
|
Brake lever
|
Shimano SLX
|
|
Brakes
|
Shimano SLX BR-M7000
|
|
Crankset
|
TruVativ Descendent 6k Eagle DUB, 32t with MRP alloy guide
|
|---|---|
|
Shifter
|
SRAM NX Eagle
|
|
Bottom bracket
|
SRAM DUB, press fit
|
|
Chain
|
SRAM NX Eagle
252 g
|
|
|
|
|
Rear derailleur
|
SRAM NX Eagle
12s
339 g
|
|
|
|
|
Cassette
|
SRAM NX Eagle
|
|
Frame
|
ALUXX SL-Grade Aluminum, 146mm Maestro suspension
|
|---|---|
|
Rear suspension
|
Fox DHX2 Performance Elite
|
|
Front suspension
|
Fox 38 Performance
|
|
Rims
|
Giant AM 29, tubeless ready sleeve-joint rim, 30mm inner width
|
|---|---|
|
Tires
|
[F] Maxxis Assegai 29x2.5 WT, MaxxTerra, EXO+, TR [R] Maxxis Minion DHR II 29x2.4 WT, MaxxTerra, EXO+, TR tubeless
|
|
Spokes
|
Sapim
|
|
Rear hub
|
[F] Giant Tracker Performance Boost 15x110, sealed bearing [R] Giant Tracker Performance Boost 12x148, sealed bearing
|
|
Front hub
|
[F] Giant Tracker Performance Boost 15x110, sealed bearing [R] Giant Tracker Performance Boost 12x148, sealed bearing
|
Geometry
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
|
a
Seat tube length
|
431,0
|
431,0
|
464,0
|
496,0
|
|
b
Seat tube angle
|
76,4º
|
76,4º
|
76,4º
|
76,4º
|
|
c
Top tube length
|
571,0
|
598,0
|
637,0
|
663,0
|
|
d
Head tube length
|
100,0
|
100,0
|
110,0
|
120,0
|
|
e
Head tube angle
|
64,6º
|
64,6º
|
64,6º
|
64,6º
|
|
f
Rake
|
44,0
|
44,0
|
44,0
|
44,0
|
|
g
Trail
|
132,7
|
132,7
|
132,7
|
132,7
|
|
h
Wheelbase
|
1188,0
|
1217,0
|
1259,0
|
1286,0
|
|
i
Chainstay length
|
436,0
|
436,0
|
436,0
|
436,0
|
|
j
Bottom bracket drop
|
27,0
|
27,0
|
27,0
|
27,0
|
|
k
Stack height
|
619,0
|
619,0
|
628,0
|
637,0
|
|
l
Reach
|
420,0
|
448,0
|
485,0
|
508,0
|
|
m
Standover height
|
754,0
|
756,0
|
778,0
|
801,0
|
|
x
Bottom bracket height
|
347,0
|
347,0
|
347,0
|
347,0
|
|
y
Front center
|
753,0
|
782,0
|
824,0
|
851,0
|
