BikeWise

Giant Reign Advanced 2020

MTB Enduro
Groupset
SRAM GX Eagle
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Front travel
170mm
Rear travel
160mm

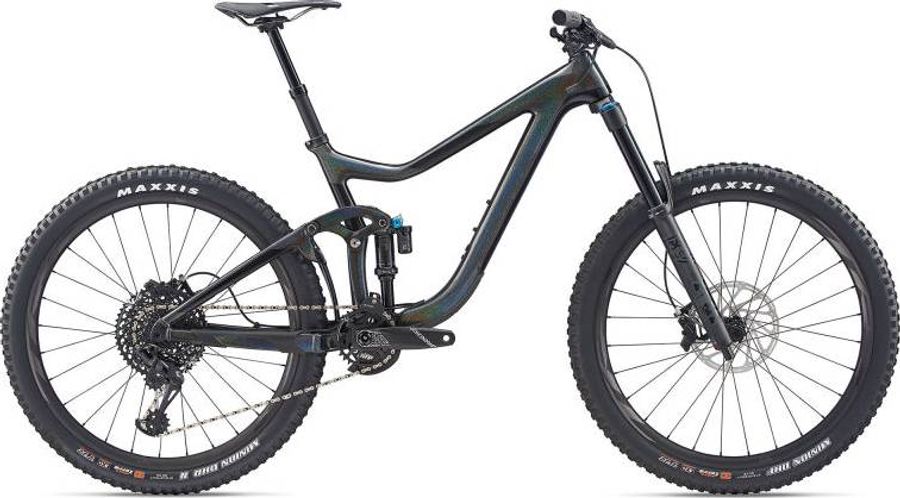

Giant Reign Advanced 2020

About the Giant Reign Advanced 2020

The Giant Reign Advanced 2020 is a Full suspension Enduro Mountain Bike with a carbon frame. Equipped with a SRAM GX Eagle drivetrain of 12 gears (1x12). Its features include boost 110 , boost 148, and hydraulic disc brakes.

Features

The Giant Reign Advanced 2020 has 3 features listed below.
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Components
Steam
Giant Contact SL 35
Saddle
Giant Contact, Neutral, UniClip Accessory Mount
Seatpost
Giant Contact Switch, 30.9, [S] 100mm, [M] 125mm, [L] 150mm, [XL] 170mm
Handlebar
Giant Contact SL TR35, 800x35mm, 20mm rise
Brake lever
SRAM Code R
Brakes
SRAM Code R Hydraulic
Application
MTB
Blade material
Aluminum - Forged
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (203mm DIR to 220mm Rotor - 17mm bracket) 17P, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Dark Grey Paint, Diffusion Black
Model
DB-CODE-R-B1
Name
Code R
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Drivetrain
Crankset
TruVativ Descendent 6k, DUB, 32t with MRP AMg V2 alloy guide
Shifter
SRAM GX Eagle
Bottom bracket
SRAM DUB, press fit
Chain
SRAM GX Eagle 244 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Black
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Black Oxide
Model
CN-EAGL-GX-A1
Name
GX Eagle Chain
Outer link finish
Nickel
Pin variant
Solid Pin
Weight based on
114 links
Weight
244
Cassette
SRAM XG-1275 Eagle 12s
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1275-B1
Name
XG-1275 Eagle Cassette
Speed
12s
Technology cassete
XG
Rear derailleur
SRAM GX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Aluminum
Color
Lunar
Max tooth
52
Model
RD-GX-1-B2
Name
GX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Frameset
Frame
Advanced-Grade Composite, 160mm
Rear suspension
Fox Float DPX2
Front suspension
Fox 36 Float Performance
Wheels
Rims
Giant TR 1 27.5" Wheelsystem, Hookless (30mm inner)
Tires
[F] Maxxis Minion DHF 27.5x2.5 WT, 3C, EXO, TR [R] Maxxis Minion DHRII 27.5x2.4 WT, 3C, EXO, TR, tubeless
Spokes
Sapim Laser w/ DBL Technology
Rear hub
Giant TR 1, [F] Boost 15x110mm [R] Boost 12x148mm
Front hub
Giant TR 1, [F] Boost 15x110mm [R] Boost 12x148mm

Geometry

Size SM MD LG XL
a
Seat tube length
380,0
431,0
464,0
496,0
b
Seat tube angle
72,5º
72,5º
72,5º
72,5º
c
Top tube length
598,0
634,0
654,0
679,0
d
Head tube length
95,0
95,0
115,0
125,0
e
Head tube angle
64,5º
64,5º
64,5º
64,5º
f
Rake
46,0
46,0
46,0
46,0
g
Trail
120,0
120,0
120,0
120,0
h
Wheelbase
1175,0
1210,0
1233,0
1259,0
i
Chainstay length
432,0
432,0
432,0
432,0
j
Bottom bracket drop
7,0
7,0
7,0
7,0
k
Stack height
577,0
577,0
596,0
605,0
l
Reach
416,0
451,0
466,0
488,0
m
Standover height
694,0
713,0
738,0
758,0
x
Bottom bracket height
348,0
348,0
348,0
348,0
y
Front center
743,0
778,0
801,0
827,0
