Giant Reign Advanced Pro 29 0 2021

MTB Trail
Groupset
Shimano XTR
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Front travel
170mm
Rear travel
146mm

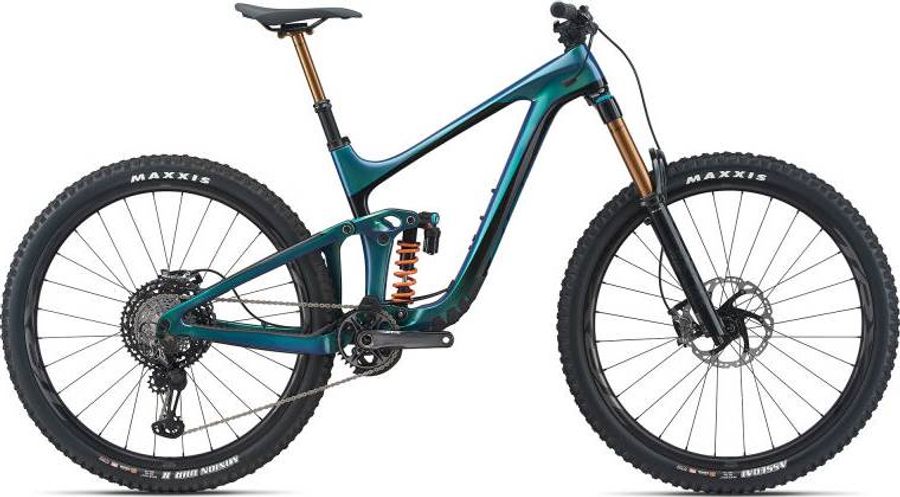

Giant Reign Advanced Pro 29 0 2021

About the Giant Reign Advanced Pro 29 0 2021

The Giant Reign Advanced Pro 29 0 2021 is a Full suspension Trail Mountain Bike with a carbon frame. Equipped with a Shimano XTR drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and hydraulic disc brakes.

Features

The Giant Reign Advanced Pro 29 0 2021 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info

Specifications

Components
Steam
Giant Contact SL 35
Saddle
Giant Romero SL
Seatpost
Fox Transfer Factory with Shimano remote
Handlebar
Giant Contact SLR TR35, 780x35mm, 20mm rise
Brake lever
Shimano XTR
Brakes
Shimano XTR BR-M9000 316.1 g Hydraulic disc brake 2 piston
Average weight (g)
316.1
Brake hose color kit
Black
Brake hose kit
SM-BH90-SBM
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Magnesium
Caliper fixing bolt anti loosen method
Wiring
Caliper fixing bolt material
Ti
Caliper fixing bolt tool size
** 4 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
J-Kit spec for OEM
Model
BR-M9000
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad option
J02A Resin
J03A Resin
Pad option
J04C Metal
Pad standard
G02A Resin
G03A Resin
Pad standard
G04Ti Metal
Pad mount
Pad axle
Piston
2
Piston material
Ceramic
Recommended disc brake rotor
SM-RT99
* SM-RT99-A
Drivetrain
Crankset
Shimano XTR, 34t with MRP AMG V2 Carbon guide
Shifter
Shimano XTR
Bottom bracket
Shimano, press fit
Chain
Shimano CN-M9100 242 g
Average weight (g)
242
Chromizing treatment roller link pin
Model
CN-M9100
Pin link plate
SIL-TEC
Roller
SIL-TEC
Roller link plate
Chromizing
Type
HG 12-speed
Cassette
Shimano XTR CS-M9100-12 12s HYPERGLIDE+
Aluminum gear finish
Painted
Aluminum gear pieces
3
Aluminum spider arm finish
Anodized
Aluminum spider arm pieces
1
Combination names
10-45T
10-51T
Combination
10-12-14-16-18-21-24-28-32-36-40-45
10-12-14-16-18-21-24-28-33-39-45-51
Compatible chain
HG 12-speed
Lock ring finish
Anodized
Lock ring material
Aluminum
Micro spline
Model
CS-M9100-12
Speeds
12
Steel gear finish
Plated
Steel gear pieces
4
Titanium gear finish
Shot
Titanium gear pieces
5
Type
HYPERGLIDE+
Weights
10-45T: 357g
10-51T: 367g
Rear derailleur
Shimano XTR RD-M9100-SGS 240 g SGS 12s
Average weight (g)
240
B axle finish
Anodized
B axle hollow
B axle material
Aluminum
Bracket body finish
Anodized
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M9100-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Frameset
Frame
Advanced-Grade Composite front and rear triangles, 146mm Maestro suspension
Front suspension
Fox 38 Float
Rear suspension
Fox DHX2 Factory
Wheels
Rims
Giant TRX-0 29 Carbon WheelSystem, 30mm inner
Tires
[F] Maxxis Assegai 29x2.5 WT, 3C MaxxTerra, EXO+, TR [R] Maxxis Minion DHR II 29x2.4 WT, 3C MaxxTerra, EXO+, TR tubeless
Spokes
Giant TRX-0 29 WheelSystem, DBL technology
Rear hub
Giant TRX-0 29 WheelSystem, Boost
Front hub
Giant TRX-0 29 WheelSystem, Boost

Geometry

Size SM MD LG XL
a
Seat tube length
431,0
431,0
464,0
496,0
b
Seat tube angle
76,4º
76,4º
76,4º
76,4º
c
Top tube length
571,0
598,0
637,0
663,0
d
Head tube length
100,0
100,0
110,0
120,0
e
Head tube angle
64,6º
64,6º
64,6º
64,6º
f
Rake
44,0
44,0
44,0
44,0
g
Trail
132,7
132,7
132,7
132,7
h
Wheelbase
1188,0
1217,0
1259,0
1286,0
i
Chainstay length
436,0
436,0
436,0
436,0
j
Bottom bracket drop
27,0
27,0
27,0
27,0
k
Stack height
619,0
619,0
628,0
637,0
l
Reach
420,0
448,0
485,0
508,0
m
Standover height
754,0
756,0
778,0
801,0
x
Bottom bracket height
347,0
347,0
347,0
347,0
y
Front center
753,0
782,0
824,0
851,0
