BikeWise

Giant Reign Advanced Pro 29 1 2020

MTB Trail
Groupset
SRAM GX Eagle
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Rear travel
146mm

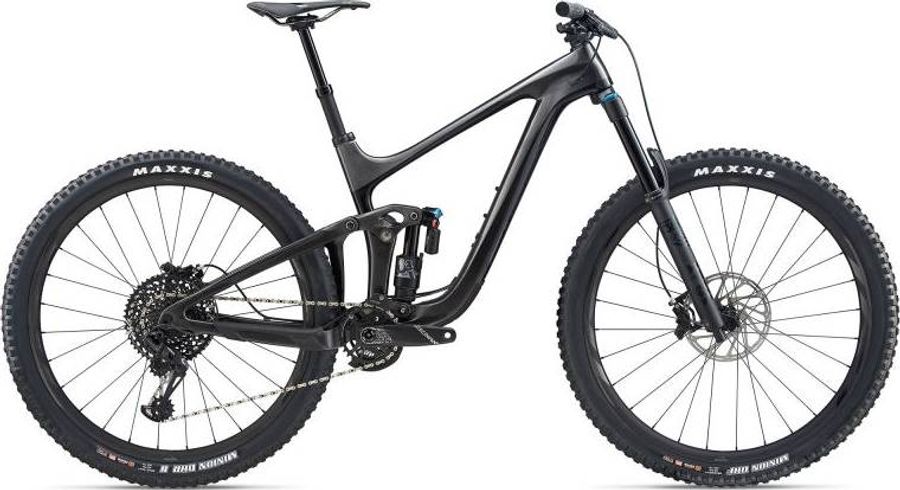

Giant Reign Advanced Pro 29 1 2020

About the Giant Reign Advanced Pro 29 1 2020

The Giant Reign Advanced Pro 29 1 2020 is a Full suspension Trail Mountain Bike with a carbon frame. Equipped with a SRAM GX Eagle drivetrain. Its features include dropper seatpost, boost 110 , and hydraulic disc brakes.

Features

The Giant Reign Advanced Pro 29 1 2020 has 3 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Components
Steam
Giant Contact SL 35
Saddle
Giant Contact SL (neutral)
Seatpost
Giant Contact Switch dropper post with remote, 30.9
Handlebar
Giant Contact SL TR35, 800x35mm, 20mm rise
Brake lever
SRAM Code R
Brakes
SRAM Code R Hydraulic
Application
MTB
Blade material
Aluminum - Forged
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (203mm DIR to 220mm Rotor - 17mm bracket) 17P, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Dark Grey Paint, Diffusion Black
Model
DB-CODE-R-B1
Name
Code R
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Drivetrain
Crankset
TruVativ Descendent 6k, DUB, 32t with MRP AMg V2 alloy guide
Shifter
SRAM GX Eagle
Bottom bracket
SRAM DUB, press fit
Chain
SRAM GX Eagle 244 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Black
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Black Oxide
Model
CN-EAGL-GX-A1
Name
GX Eagle Chain
Outer link finish
Nickel
Pin variant
Solid Pin
Weight based on
114 links
Weight
244
Rear derailleur
SRAM GX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Aluminum
Color
Lunar
Max tooth
52
Model
RD-GX-1-B2
Name
GX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Cassette
SRAM GX Eagle
Frameset
Frame
Advanced-Grade Composite front and rear triangles, 146mm
Front suspension
Fox 36 Float
Rear suspension
Fox Float X2
Wheels
Rims
Giant TR-1 29 WheelSystem
Tires
[F] Maxxis Minion DHF 29x2.5 WT, 3C MaxxTerra, EXO+, TR [R] Maxxis Minion DHR II 29x2.4 WT, 3C MaxxTerra, EXO+, TR, tubeless
Spokes
Giant TR-1 29 WheelSystem
Rear hub
Giant TR-1 29 WheelSystem
Front hub
Giant TR-1 29 WheelSystem

Geometry

Size SM MD LG XL
a
Seat tube length
431,0
431,0
464,0
496,0
b
Seat tube angle
76,8º
76,8º
76,8º
76,8º
c
Top tube length
570,0
597,0
637,0
662,0
d
Head tube length
100,0
110,0
110,0
120,0
e
Head tube angle
65,0º
65,0º
65,0º
65,0º
f
Rake
44,0
44,0
44,0
44,0
g
Trail
128,9
128,9
128,9
128,9
h
Wheelbase
1185,0
1212,0
1255,0
1262,0
i
Chainstay length
436,0
436,0
436,0
436,0
j
Bottom bracket drop
30,0
30,0
30,0
30,0
k
Stack height
616,0
616,0
625,0
634,0
l
Reach
425,0
452,0
490,0
513,0
m
Standover height
749,0
748,0
770,0
785,0
x
Bottom bracket height
344,0
344,0
344,0
344,0
y
Front center
751,0
778,0
821,0
828,0
