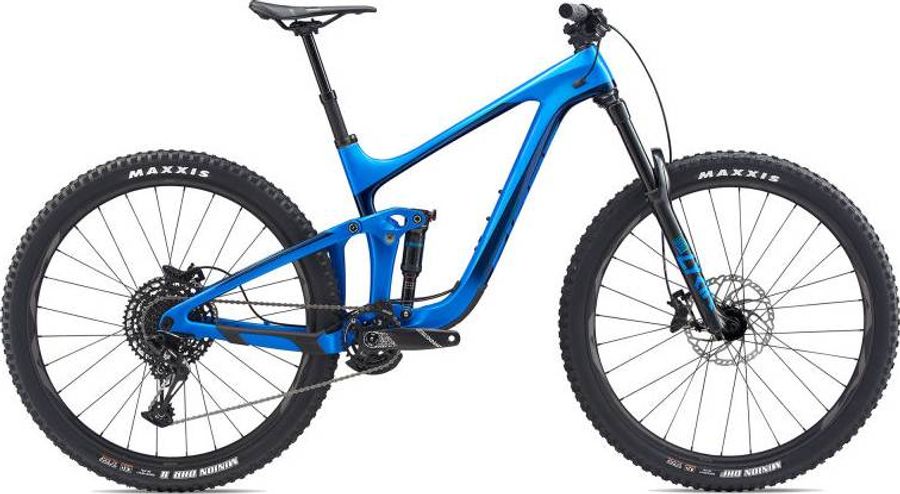

Giant Reign Advanced Pro 29 2 2020

MTB Trail
Groupset
SRAM NX Eagle
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Front travel
160mm
Rear travel
146mm
Giant Reign Advanced Pro 29 2 2020

About the Giant Reign Advanced Pro 29 2 2020

The Giant Reign Advanced Pro 29 2 2020 is a Full suspension Trail Mountain Bike with a carbon frame. Equipped with a SRAM NX Eagle drivetrain. Its features include dropper seatpost, boost 110 , and boost 148.

Features

The Giant Reign Advanced Pro 29 2 2020 has 6 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
tubeless-ready
Tubeless ready More info

Specifications

Components
Steam
Giant Contact SL 35
Saddle
Giant Contact (neutral)
Seatpost
Giant Contact Switch dropper post with remote, 30.9
Handlebar
Giant Contact TR35, 800x35mm, 20mm rise
Brake lever
Shimano MT501
Brakes
Shimano BR-MT520 Hydraulic disc brake 4 piston
Brake hose color kit
Black
Brake hose kit
SM-BH90-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT520
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
D03S resin
Pad standard
D02S Metal
Pad mount
Split pin
Piston
4
Piston material
Ceramic
Drivetrain
Crankset
TruVativ Descendent 6k DUB, 32t with MRP AMg CS guide
Shifter
SRAM NX Eagle
Bottom bracket
SRAM DUB, press fit
Chain
SRAM NX Eagle 252 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Grey
Color outer link
Grey
Compat speed
12s-Eagle
Inner link finish
Polished
Model
CN-EAGL-NX-A1
Name
NX Eagle Chain
Outer link finish
Polished
Pin variant
Solid Pin
Weight based on
114 links
Weight
252
Rear derailleur
SRAM NX Eagle 12s 339 g
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
50
Model
RD-NX-1-B1
Name
NX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Weight
339
Cassette
SRAM NX Eagle
Frameset
Frame
Advanced-Grade Composite front and rear triangles, 146mm
Front suspension
RockShox Lyrik Select DebonAir 1996 g
Color
Diffusion Black, Gloss Black
Damper type
Charger RC
fork offset
37mm (27.5"), 42mm (29"), 46mm (27.5"), 51mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
180mm
Model
FS-LYRK-SEL-C2
Name
Lyrik Select
Spring
DebonAir
Travel (mm)
150mm, 160mm, 170mm, 180mm
Upper tube type
35mm tapered wall aluminum
Weight based on
27.5" BOOST, 150mm, Maxle Stealth
Weight
1996
Wheel size
27.5", 29"
Rear suspension
RockShox Deluxe Select+ 340 g
Body eyelet
No Bushing, Standard
Compression tune
H, L, L1, LC, M
Damper type
RL, RT
Eye to eye stroke
145x35(TR), 165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 170x35, 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x50(TR), 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 230x57.5, 230x60, 230x62.5, 230x65
Lockout force
320, 380, 430
Model
RS-DLX-SELP-B2
Name
Deluxe Select+
Rebound tune
H, L, M
Shaft eyelet
No Bushing, Standard, Trunnion
Weight based on
210x50, 2 tokens, MM tune, standard/standard
Weight
340
Wheels
Rims
Giant AM 29, tubeless ready sleeve-joint rim, 30mm inner width
Tires
[F] Maxxis Minion DHF 29x2.5 WT, EXO, TR [R] Maxxis Minion DHR II 29x2.4 WT, EXO, TR, tubeless
Spokes
Sapim
Rear hub
[F] Giant Tracker Performance Boost 15x110, sealed bearing [R] Giant Tracker Performance Boost 12x148, sealed bearing
Front hub
[F] Giant Tracker Performance Boost 15x110, sealed bearing [R] Giant Tracker Performance Boost 12x148, sealed bearing

Geometry

Size SM MD LG XL
a
Seat tube length
431,0
431,0
464,0
496,0
b
Seat tube angle
76,8º
76,8º
76,8º
76,8º
c
Top tube length
570,0
597,0
637,0
662,0
d
Head tube length
100,0
110,0
110,0
120,0
e
Head tube angle
65,0º
65,0º
65,0º
65,0º
f
Rake
44,0
44,0
44,0
44,0
g
Trail
128,9
128,9
128,9
128,9
h
Wheelbase
1185,0
1212,0
1255,0
1262,0
i
Chainstay length
436,0
436,0
436,0
436,0
j
Bottom bracket drop
30,0
30,0
30,0
30,0
k
Stack height
616,0
616,0
625,0
634,0
l
Reach
425,0
452,0
490,0
513,0
m
Standover height
749,0
748,0
770,0
785,0
x
Bottom bracket height
344,0
344,0
344,0
344,0
y
Front center
751,0
778,0
821,0
828,0
