BikeWise

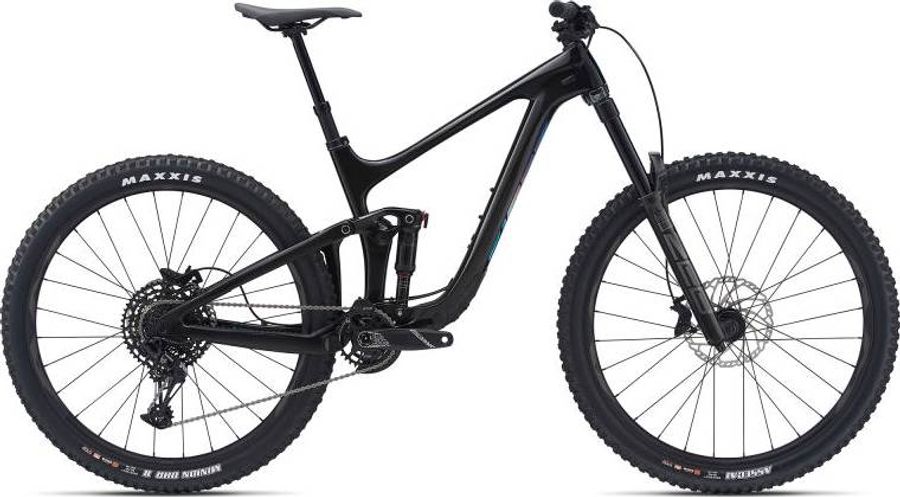

Giant Reign Advanced Pro 29 2 2021

MTB Trail
Groupset
SRAM NX Eagle
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Front travel
170mm
Rear travel
146mm
Giant Reign Advanced Pro 29 2 2021

About the Giant Reign Advanced Pro 29 2 2021

The Giant Reign Advanced Pro 29 2 2021 is a Full suspension Trail Mountain Bike with a carbon frame. Equipped with a SRAM NX Eagle drivetrain. Its features include dropper seatpost, boost 110 , and boost 148.

Features

The Giant Reign Advanced Pro 29 2 2021 has 6 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Pedals
platform
Components
Steam
Giant Contact SL 35
Saddle
Giant Romero SL
Seatpost
Giant Contact Switch dropper post with remote, 30.9
Handlebar
Giant Contact TR35, 800x35mm, 20mm rise
Brake lever
Shimano MT501
Brakes
Shimano BR-MT520 Hydraulic disc brake 4 piston
Brake hose color kit
Black
Brake hose kit
SM-BH90-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT520
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
D03S resin
Pad standard
D02S Metal
Pad mount
Split pin
Piston
4
Piston material
Ceramic
Drivetrain
Crankset
TruVativ Descendent 6k DUB, 32t with MRP AMg CS guide
Shifter
SRAM NX Eagle
Bottom bracket
SRAM DUB, press fit
Chain
SRAM NX Eagle 252 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Grey
Color outer link
Grey
Compat speed
12s-Eagle
Inner link finish
Polished
Model
CN-EAGL-NX-A1
Name
NX Eagle Chain
Outer link finish
Polished
Pin variant
Solid Pin
Weight based on
114 links
Weight
252
Rear derailleur
SRAM NX Eagle 12s 339 g
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
50
Model
RD-NX-1-B1
Name
NX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Weight
339
Cassette
SRAM NX Eagle
Frameset
Frame
Advanced-Grade Composite front and rear triangles, 146mm Maestro suspension
Front suspension
RockShox ZEB Select DebonAir, Dual Position Air 2253 g
Color
Diffusion Black, Gloss Black
Damper type
Charger RC
fork offset
38mm (27.5"), 44mm (27.5"), 44mm (29"), 51mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
200mm
Model
FS-ZEB-SEL-A1
Name
ZEB Select
Spring
DebonAir, Dual Position Air
Travel (mm)
150mm, 160mm, 170mm, 180mm, 190mm
Upper tube type
38mm aluminum
Weight based on
29" Maxle Stealth 190mm Travel 1.5" Taper Steerer
Weight
2253
Wheel size
27.5", 29"
Rear suspension
RockShox Deluxe Select+ 340 g
Body eyelet
No Bushing, Standard
Compression tune
H, L, L1, LC, M
Damper type
RL, RT
Eye to eye stroke
145x35(TR), 165x37.5(TR), 165x40(TR), 165x42.5(TR), 165x45(TR), 170x35, 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x50(TR), 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 230x57.5, 230x60, 230x62.5, 230x65
Lockout force
320, 380, 430
Model
RS-DLX-SELP-B2
Name
Deluxe Select+
Rebound tune
H, L, M
Shaft eyelet
No Bushing, Standard, Trunnion
Weight based on
210x50, 2 tokens, MM tune, standard/standard
Weight
340
Wheels
Rims
Giant AM 29, tubeless ready sleeve-joint rim, 30mm inner width
Tires
[F] Maxxis Assegai 29x2.5 WT, MaxxTerra, EXO+, TR [R] Maxxis Minion DHR II 29x2.4 WT, MaxxTerra, EXO+, TR tubeless
Spokes
Sapim
Rear hub
[F] Giant Tracker Performance Boost 15x110, sealed bearing [R] Giant Tracker Performance Boost 12x148, sealed bearing
Front hub
[F] Giant Tracker Performance Boost 15x110, sealed bearing [R] Giant Tracker Performance Boost 12x148, sealed bearing

Geometry

Size SM MD LG XL
a
Seat tube length
431,0
431,0
464,0
496,0
b
Seat tube angle
76,4º
76,4º
76,4º
76,4º
c
Top tube length
571,0
598,0
637,0
663,0
d
Head tube length
100,0
100,0
110,0
120,0
e
Head tube angle
64,6º
64,6º
64,6º
64,6º
f
Rake
44,0
44,0
44,0
44,0
g
Trail
132,7
132,7
132,7
132,7
h
Wheelbase
1188,0
1217,0
1259,0
1286,0
i
Chainstay length
436,0
436,0
436,0
436,0
j
Bottom bracket drop
27,0
27,0
27,0
27,0
k
Stack height
619,0
619,0
628,0
637,0
l
Reach
420,0
448,0
485,0
508,0
m
Standover height
754,0
756,0
778,0
801,0
x
Bottom bracket height
347,0
347,0
347,0
347,0
y
Front center
753,0
782,0
824,0
851,0
