Giant Reign E+ 0 2022

E-Bike
MTB Enduro
Groupset
SRAM X01 Eagle
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Front travel
170mm
Rear travel
160mm

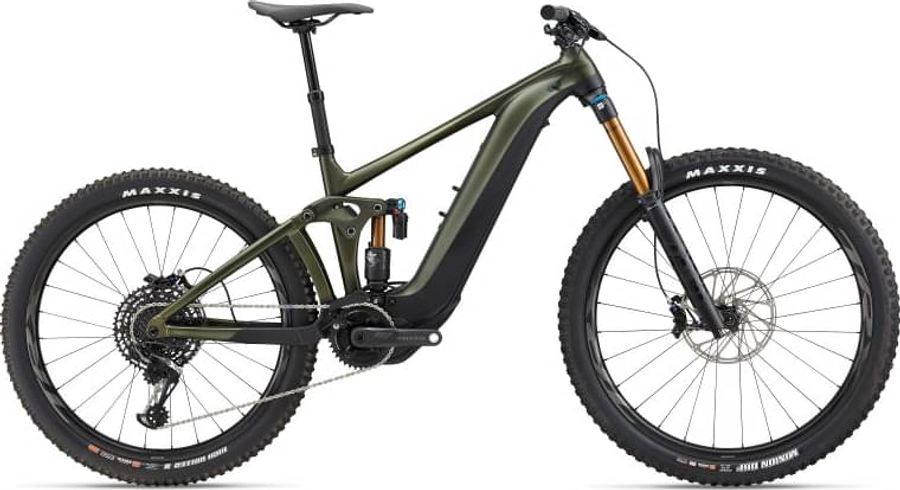

Giant Reign E+ 0 2022

About the Giant Reign E+ 0 2022

The Giant Reign E+ 0 2022 is a Full suspension Enduro Mountain Bike with a alloy frame. Equipped with a SRAM X01 Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148.

Features

The Giant Reign E+ 0 2022 has 5 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
Giant Tactal Pro-E, single lock-on
Pedals
Flat pedal
Remote
RideControl GO, frame integrated LED displayANT+ Wireless display compatible
Components
Steam
Giant Contact SL 35
Saddle
Giant Romero SL Trail
Battery
EnergyPak Smart 750WhEnergyPak Plus range extender compatible
Seatpost
Giant Contact Switch, dropper, 30,9mm (S:125, M: 150, L/XL:170)
Handlebar
Giant Contact Trail SL, 35x800mm
Brake lever
SRAM Code RSC
Brakes
SRAM Code RSC Hydraulic
Application
MTB
Blade material
Aluminum - Forged
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Black Anodized, Black Anodized w/Rainbow Hardware
Model
DB-CODE-RSC-A1
Name
Code RSC
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Drivetrain
Crankset
SRAM X-Sync Eagle 36T chainringPraxis e-Carbon custom carbon crankarm set (S/M:160, L/XL:165)
Motor
SyncDrive Pro, 85Nm, powered by Yamaha
Shifter
SRAM XO1 Eagle
Front derailleur
MRP 1X HD2 custom co-molded chain guide
Chain
SRAM X01 Eagle 239 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Silver
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Chrome Plated
Model
CN-EAGL-X01-A1
Name
X01 Eagle Chain
Outer link finish
Nickel
Pin variant
Hollow Pin
Weight based on
114 links
Weight
239
Cassette
SRAM PG-1230 Eagle 12s 615 g
Cog finish cassete
Black
Cog sizes
11-50t:11,13,15,17,19,22,25,28,32,36,42,50
Gearing
11-50t
Model
CS-PG-1230-A1
Name
PG-1230 Eagle Cassette
Speed
12s
Technology cassete
PG
Weight
615
Rear derailleur
SRAM X01 Eagle 12s
Cable pull ratio
X-actuation
Color
Black, Lunar, Red
Max tooth
52
Model
RD-X0-1-B2
Name
X01 Eagle Rear Derailleur
Speed
12s
Frameset
Frame
ALUXX SL-grade Aluminum, Advanced Forged Composite Upper Rocker, 160mm Maestro suspension system, 'Boost' 148x12mm, UDHTM derrailleur hanger
Rear suspension
Fox Float X2 Factory
Front suspension
Fox 38 Float Factory
Wheels
Rims
Giant e-TRX 29"[F] 27.5"[R], Tubeless ready, 30mm inner width
Tires
Maxxis Minion DHF 29x2.6" foldable, Tubeless, EXO+, 3C MaxxTerra[F]Maxxis High Roller II 27.5x2.5" foldable, Tubeless, DoubleDown, 3C MaxxTerra Compound [R]
Spokes
Giant e-TRX
Rear hub
Giant e-TRX [F] 110x15 [R] 148x12mm Thru-axle
Front hub
Giant e-TRX [F] 110x15 [R] 148x12mm Thru-axle

Geometry

Size SM MD LG XL
a
Seat tube length
400,0
425,0
450,0
475,0
b
Seat tube angle
76,7º
76,7º
76,7º
76,7º
c
Top tube length
-
-
-
-
d
Head tube length
100,0
100,0
110,0
120,0
e
Head tube angle
63,7º
63,7º
63,7º
63,7º
f
Rake
44,0
44,0
44,0
44,0
g
Trail
135,55
-
-
135,55
h
Wheelbase
-
-
-
-
i
Chainstay length
-
-
-
-
j
Bottom bracket drop
104,0
104,0
104,0
104,0
k
Stack height
-
-
-
-
l
Reach
-
-
-
-
m
Standover height
-
-
-
-
x
Bottom bracket height
251,0
251,0
251,0
251,0
y
Front center
-
-
-
-
