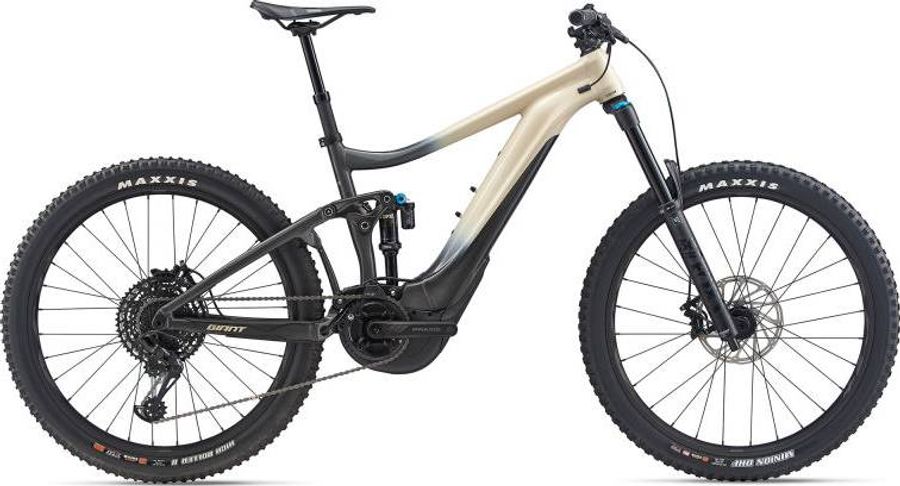

Giant Reign E+ 2 Pro Electric Bike 2020
The Giant Reign E+ 2 Pro Electric Bike 2020 is an electric-bike. E-bikes are bicycles with a battery-powered assist that comes via pedaling, so when you push the pedals a motor engages and gives you a boost.
E-Bike
Groupset
SRAM GX Eagle
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Weight
24,7 kg
Front travel
170mm
Rear travel
160mm
About the Giant Reign E+ 2 Pro Electric Bike 2020
The Giant Reign E+ 2 Pro Electric Bike 2020 is a Full suspension Enduro Mountain Bike with a alloy frame. Equipped with a SRAM GX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 24,7 kg.
Features
Dropper seatpost
More info
Dropper seatpost
Boost 110
More info
Boost 110
Boost 148
More info
Boost 148
Hydraulic disc brakes
More info
Hydraulic disc brakes
Tubeless ready
More info
Tubeless ready
Specifications
|
Remote
|
Giant RideControl One
|
|---|
|
Steam
|
Giant Contact SL 35
|
|---|---|
|
Saddle
|
Giant Contact, Neutral
|
|
Battery
|
Giant EnergyPak Smart 500, 36V 13.8Ah integrated Lithium-Ion
|
|
Seatpost
|
Giant Contact Switch, dropper, 30,9mm (S:100/M:125/L:150/XL:170)
|
|
Handlebar
|
Giant Contact Trail, 35x800mm
|
|
Brake lever
|
SRAM Guide RE
|
|
Brakes
|
SRAM Guide RE
Hydraulic
415 g
|
|
|
|
|
Crankset
|
SRAM X-Sync Eagle 36T 104BCD chainringPraxis e-Cadet+ custom forged crankarm set (Q-factor=168, S/M:160, L/XL:165)
|
|---|---|
|
Motor
|
Giant SyncDrive Pro, automatic support, 5-mode, 50-360% tunable support, 80Nm, powered by YAMAHA
|
|
Shifter
|
SRAM GX Eagle 12-speed
|
|
Front derailleur
|
MRP 1X custom "V3" co-moulded TR chain guide
|
|
Chain
|
SRAM NX Eagle
252 g
|
|
|
|
|
Rear derailleur
|
SRAM GX Eagle
12s
|
|
|
|
|
Cassette
|
SRAM PG-1230 Eagle
12s
615 g
|
|
|
|
|
Frame
|
ALUXX SL-grade aluminum, 160mm Maestro suspension system, 'Boost' 148x12QR, Giant EnergyPak Plus range extender compatible
|
|---|---|
|
Front suspension
|
Fox 36 Float Rhythm
|
|
Rear suspension
|
Fox Float DPX2 Performance EVOL
|
|
Rims
|
Giant AM 27.5+, Tubeless ready, 35mm inner width
|
|---|---|
|
Tires
|
Maxxis Minion DHF 27.5x2.6" foldable, Tubeless, EXO+, 3c MaxxTerra[F]Maxxis High Roller II 27.5x2.6" foldable, Tubeless, DoubleDown, 2x120tpi, 3C MaxxTerra Compound [R]
|
|
Spokes
|
Sapim E-Lite [r] Race [f]
|
|
Rear hub
|
Giant eTracker Boost, Sealed cartridge bearing, 6-bolt, [F] 110x15 [R] 148x12mm Thru-axle
|
|
Front hub
|
Giant eTracker Boost, Sealed cartridge bearing, 6-bolt, [F] 110x15 [R] 148x12mm Thru-axle
|
Geometry
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
|
a
Seat tube length
|
406,0
|
445,0
|
482,0
|
507,0
|
|
b
Seat tube angle
|
76,0º
|
76,0º
|
76,0º
|
76,0º
|
|
c
Top tube length
|
601,0
|
626,0
|
651,0
|
676,0
|
|
d
Head tube length
|
100,0
|
110,0
|
120,0
|
130,0
|
|
e
Head tube angle
|
64,5º
|
64,5º
|
64,5º
|
64,5º
|
|
f
Rake
|
44,0
|
44,0
|
44,0
|
44,0
|
|
g
Trail
|
124,3
|
124,3
|
124,3
|
124,3
|
|
h
Wheelbase
|
1229,0
|
1255,0
|
1282,0
|
1309,0
|
|
i
Chainstay length
|
476,0
|
476,0
|
476,0
|
476,0
|
|
j
Bottom bracket drop
|
15,0
|
15,0
|
15,0
|
15,0
|
|
k
Stack height
|
598,0
|
608,0
|
617,0
|
626,0
|
|
l
Reach
|
436,0
|
458,0
|
481,0
|
503,0
|
|
m
Standover height
|
-
|
-
|
-
|
-
|
|
x
Bottom bracket height
|
340,0
|
340,0
|
340,0
|
340,0
|
|
y
Front center
|
753,0
|
779,0
|
806,0
|
833,0
|
