Giant Reign SX 2021

MTB Enduro
Groupset
Shimano Deore
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Front travel
180mm
Rear travel
160mm

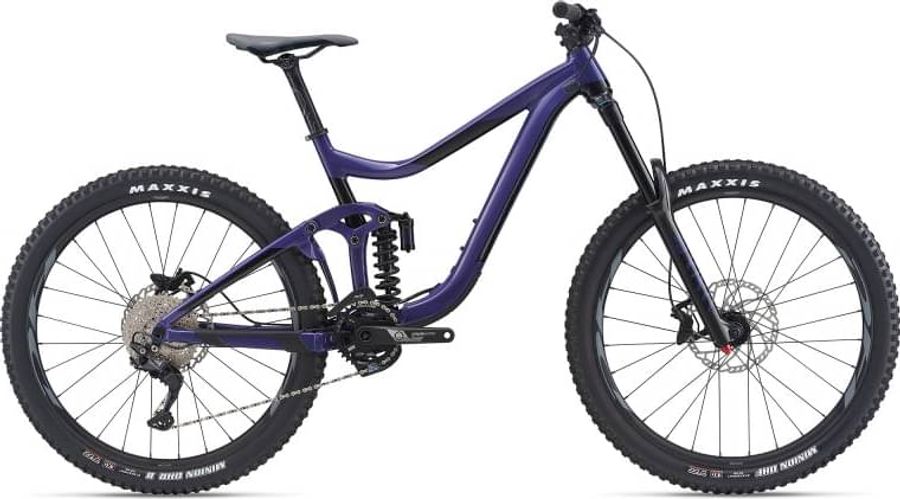

Giant Reign SX 2021

About the Giant Reign SX 2021

The Giant Reign SX 2021 is a Full suspension Enduro Mountain Bike with a alloy frame. Equipped with a Shimano Deore drivetrain of 10 gears (1x10). Its features include boost 110 , boost 148, and hydraulic disc brakes.

Features

The Giant Reign SX 2021 has 5 features listed below.
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
tubeless-ready
Tubeless ready More info

Specifications

Components
Steam
Giant Contact SL 35
Saddle
Giant Romero
Seatpost
Giant Contact SL, zero offset, 30.9
Handlebar
Giant Contact SL TR35, 800x35mm, 20mm rise
Brake lever
Shimano MT501
Brakes
Shimano BR-MT520 Hydraulic disc brake 4 piston
Brake hose color kit
Black
Brake hose kit
SM-BH90-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT520
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
D03S resin
Pad standard
D02S Metal
Pad mount
Split pin
Piston
4
Piston material
Ceramic
Drivetrain
Crankset
Praxis Cadet, 34t, Giant custom design with MRP CS guide
Shifter
Shimano Deore
Bottom bracket
Praxis BB-90, press fit
Rear derailleur
Shimano Deore RD-M6000-GS GS 10s
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 10-speed
Lower pulley max
42T
Lower pulley min
42T
Model
RD-M6000-GS
P axle finish
Painted
P axle material
Steel
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
Pulley cage
GS
Speeds
10
Upper pulley max
11T
Upper pulley min
11T
Total capacity
41T
Chain
KMC X10
Cassette
Shimano Deore CS-M4100-10 HG
Combination names
11-42T
11-46T
Compatible chain
HG-X 10-speed
Lock ring finish
Plated
Lock ring material
Steel
Model
CS-M4100-10
Steel gear finish
Plated
Steel gear pieces
10
Type
HG
Frameset
Frame
ALUXX SL-Grade Aluminium, 160mm Maestro suspension
Front suspension
RockShox Yari RC Dual Position Air, Solo Air 2023 g
Color
Diffusion Black, Gloss Black, Gloss White
Damper type
n/a, RC
fork offset
42mm (27.5"), 51mm (29")
Max tire width (mm)
62, n/a
Maximum rotor size
203mm
Minimum rotor size
160mm
Model
FS-YARI-RC-A1
Name
Yari RC
Spring
Dual Position Air, Solo Air
Travel (mm)
110mm, 120mm, 130mm, 140mm, 150mm, 160mm, 170mm, 180mm
Upper tube type
35mm tapered wall aluminum
Weight based on
29"/27.5"+ Boost Solo Air, RC, 180mm travel
Weight
2023
Wheel size
27.5", 27.5" B, 29", 29" B/27.5"+, 29"+
Rear suspension
RockShox Super Deluxe Coil Select 393 g
Body eyelet
No Bushing, Standard, Trunnion
Compression tune
H, L, L1, LC, M
Damper type
R
Eye to eye stroke
185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 225x67.5(TR), 225x70(TR), 225x72.5(TR), 225x75(TR), 230x57.5, 230x60, 230x62.5, 230x65, 250x67.5, 250x70, 250x72.5, 250x75
Model
RS-SDLC-SEL-A2
Name
Super Deluxe Coil Select
Rebound tune
H, L, M
Shaft eyelet
No Bushing, Standard
Weight based on
W/O coil spring, 210x50, MM tune, standard/standard
Weight
393
Wheels
Rims
Giant DH 27.5 tubeless ready sleeve-joint rim, 27mm inner width
Tires
[F] Maxxis Minion DHF 27.5x2.5 WT, folding, EXO, TR [R] Maxxis Minion DHRII 27.5x2.4 WT, folding, EXO, TR, tubeless
Spokes
Sapim
Rear hub
[F] Giant Tracker Performance Boost 15x110, sealed bearing [R] Giant Tracker Performance Boost 12x148, sealed bearing
Front hub
[F] Giant Tracker Performance Boost 15x110, sealed bearing [R] Giant Tracker Performance Boost 12x148, sealed bearing

Geometry

Size SM MD LG XL
a
Seat tube length
380,0
431,0
464,0
496,0
b
Seat tube angle
72,0º
72,0º
72,0º
72,0º
c
Top tube length
600,0
635,0
655,0
680,0
d
Head tube length
95,0
95,0
115,0
125,0
e
Head tube angle
64,0º
64,0º
64,0º
64,0º
f
Rake
46,0
46,0
46,0
46,0
g
Trail
123,0
123,0
123,0
123,0
h
Wheelbase
1179,0
1214,0
1237,0
1264,0
i
Chainstay length
432,0
432,0
432,0
432,0
j
Bottom bracket drop
4,0
4,0
4,0
4,0
k
Stack height
580,0
581,0
599,0
608,0
l
Reach
412,0
447,0
461,0
484,0
m
Standover height
698,0
716,0
742,0
761,0
x
Bottom bracket height
351,0
351,0
351,0
351,0
y
Front center
747,0
782,0
805,0
832,0
