Groupset
SRAM NX
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Front travel
130mm
Rear travel
120mm

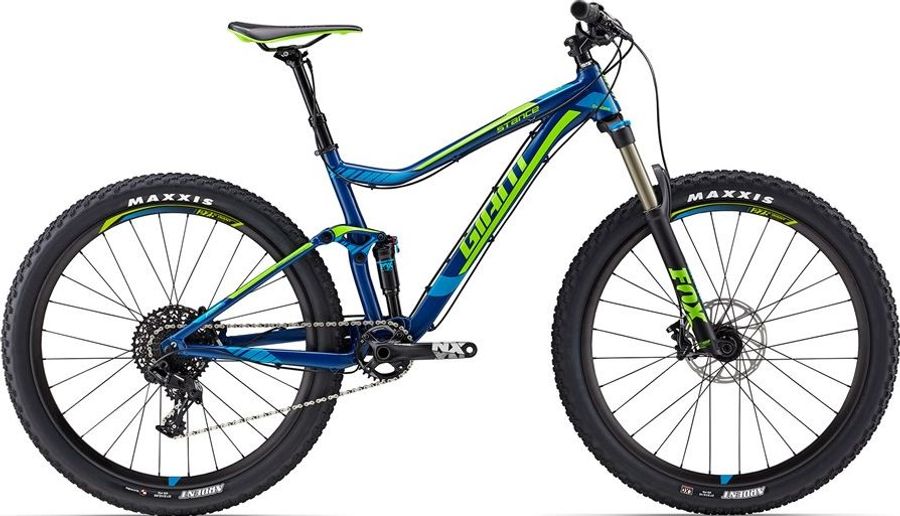

About the Giant Stance 1 2017
The Giant Stance 1 2017 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a SRAM NX drivetrain of 11 gears (1x11). Its features include dropper seatpost, boost 110 , and hydraulic disc brakes.
Features
Dropper seatpost
More info
Dropper seatpost
Boost 110
More info
Boost 110
Hydraulic disc brakes
More info
Hydraulic disc brakes
Specifications
|
Steam
|
Giant Connect
|
|---|---|
|
Saddle
|
Giant Contact Neutral
|
|
Seatpost
|
Tranz X YSP-11 Dropper Post w/ under bar remote, 27.2mm
|
|
Handlebar
|
Giant Connect Trail, 31.8mm
|
|
Brake lever
|
Shimano M425
|
|
Brakes
|
Shimano Alivio BR-M395
|
|
Crankset
|
SRAM NX, 30T
|
|---|---|
|
Shifter
|
SRAM NX
|
|
Bottom bracket
|
SRAM GXP, Press fit
|
|
Rear derailleur
|
SRAM NX
11s
322 g
|
|
|
|
|
Cassette
|
SRAM PG-1130
11s
|
|
11-28t:11,12,13,14,15,16,17,19,22,25,28 11-32t:11,12,13,14,15,17,19,22,25,28,32 11-36t:11,12,13,15,17,19,22,25,28,32,36 11-42t: 11,13,15,17,19,22,25,28,32,36,42 11-28t 11-32t 11-36t 11-42t |
|
|
Chain
|
KMC X11
|
|
Frame
|
ALUXX-grade aluminum, 120mm FlexPoint suspension
|
|---|---|
|
Front suspension
|
Fox 34 Rhythm
|
|
Rear suspension
|
Fox Float Performance
|
|
Rims
|
Giant XC-1
|
|---|---|
|
Tires
|
Maxxis Ardent, [F] 27.5x2.4, Folding [R] 27.5x2.25, Folding
|
|
Spokes
|
Stainless Steel, 14g
|
|
Rear hub
|
Giant Performance Tracker Disc, 28h, [F] Boost 110x15mm, [R] QR
|
|
Front hub
|
Giant Performance Tracker Disc, 28h, [F] Boost 110x15mm, [R] QR
|
Geometry
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
|
a
Seat tube length
|
390,0
|
400,0
|
431,0
|
482,0
|
507,0
|
|
b
Seat tube angle
|
74,0º
|
73,5º
|
73,5º
|
73,5º
|
73,5º
|
|
c
Top tube length
|
562,0
|
582,0
|
602,0
|
622,0
|
642,0
|
|
d
Head tube length
|
99,0
|
99,0
|
104,0
|
119,0
|
135,0
|
|
e
Head tube angle
|
68,0º
|
68,0º
|
68,0º
|
68,0º
|
68,0º
|
|
f
Rake
|
42,0
|
42,0
|
42,0
|
42,0
|
42,0
|
|
g
Trail
|
97,0
|
97,0
|
97,0
|
97,0
|
97,0
|
|
h
Wheelbase
|
1102,0
|
1117,0
|
1137,0
|
1158,0
|
1180,0
|
|
i
Chainstay length
|
441,0
|
441,0
|
441,0
|
441,0
|
441,0
|
|
j
Bottom bracket drop
|
17,0
|
17,0
|
17,0
|
17,0
|
17,0
|
|
k
Stack height
|
571,0
|
571,0
|
576,0
|
589,0
|
603,0
|
|
l
Reach
|
400,0
|
415,0
|
433,0
|
449,0
|
465,0
|
|
m
Standover height
|
733,0
|
731,0
|
718,0
|
754,0
|
777,0
|
|
x
Bottom bracket height
|
338,0
|
338,0
|
338,0
|
338,0
|
338,0
|
|
y
Front center
|
662,0
|
677,0
|
697,0
|
718,0
|
740,0
|
