Giant Stance 2020

MTB Trail
Groupset
Shimano Deore
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Front travel
130mm
Rear travel
120mm

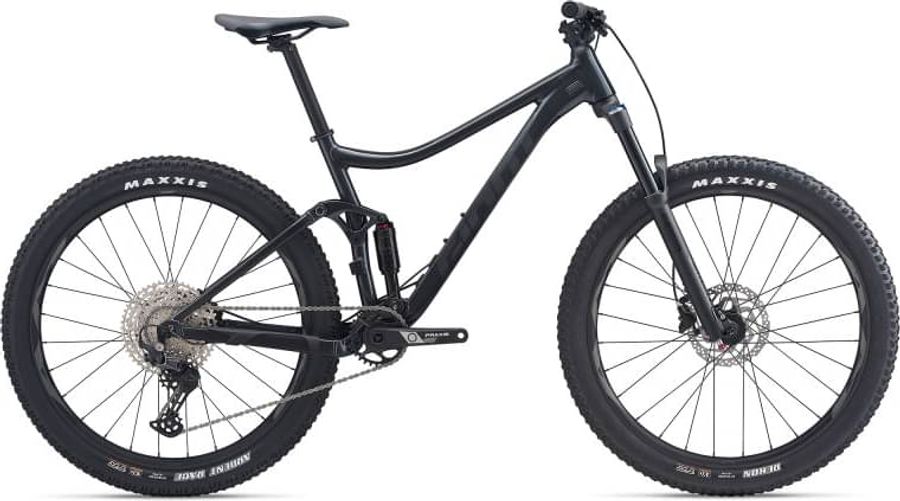

Giant Stance 2020

About the Giant Stance 2020

The Giant Stance 2020 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a Shimano Deore drivetrain. Its features include boost 110 , hydraulic disc brakes, and tapered head tube.

Features

The Giant Stance 2020 has 4 features listed below.
cubo-dianteiro-boost
Boost 110 More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
tubeless-ready
Tubeless ready More info

Specifications

Components
Steam
Giant Contact
Saddle
Giant Romero
Seatpost
Giant Connect, 30.9
Handlebar
Giant Connect Trail, 31.8
Brake lever
Shimano MT201
Brakes
Shimano BR-MT200 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT200
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin
Piston
2
Piston material
Resin
Recommended brake lever
BL-MT201
BL-MT200
Recommended disc brake rotor
SM-RT10*
SM-RT26*
Drivetrain
Chain
Shimano
Crankset
Praxis Cadet, 30t
Shifter
Shimano Deore
Bottom bracket
Shimano, press fit
Rear derailleur
Shimano Deore XT RD-M8100 284 g SGS 12s
Average weight (g)
284
B axle hollow
B axle material
Stainless steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M8100-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Cassette
Shimano Deore CS-M5100-11 HG
Aluminum spider arm finish
Painted
Aluminum spider arm pieces
1
Combination names
11-42T
11-51T
Compatible chain
HG 11-speed, LG
Lock ring finish
Plated
Lock ring material
Steel
Model
CS-M5100-11
Steel gear finish
Plated
Steel gear pieces
11
Type
HG
Frameset
Frame
ALUXX-Grade Aluminium, 120mm FlexPoint suspension
Front suspension
SR Suntour Raidon 34
Rear suspension
SR Suntour Raidon
Wheels
Rims
Giant AM 27.5 alloy, tubeless ready
Tires
[F] Maxxis Rekon 27.5x2.6 WT, EXO, TR, tubeless, [R] Maxxis Ardent Race 27.5x2.6 WT, EXO, TR, tubeless
Spokes
Sapim
Rear hub
[F] Giant Tracker Performance Boost 15x110, sealed bearing [R] Giant Tracker Giant Sport QR141, loose ball
Front hub
[F] Giant Tracker Performance Boost 15x110, sealed bearing [R] Giant Tracker Giant Sport QR141, loose ball

Geometry

Size SM MD LG XL
a
Seat tube length
400,0
431,0
482,0
507,0
b
Seat tube angle
74,0º
74,0º
74,0º
74,0º
c
Top tube length
585,0
605,0
625,0
645,0
d
Head tube length
100,0
105,0
130,0
145,0
e
Head tube angle
67,5º
67,5º
67,5º
67,5º
f
Rake
43,0
43,0
43,0
43,0
g
Trail
103,6
103,6
103,6
103,6
h
Wheelbase
1130,0
1151,0
1174,0
1195,0
i
Chainstay length
435,0
435,0
435,0
435,0
j
Bottom bracket drop
20,0
20,0
20,0
20,0
k
Stack height
566,0
571,0
594,0
608,0
l
Reach
423,0
441,0
455,0
471,0
m
Standover height
703,0
727,0
761,0
774,0
x
Bottom bracket height
335,0
335,0
335,0
335,0
y
Front center
696,0
717,0
740,0
761,0
