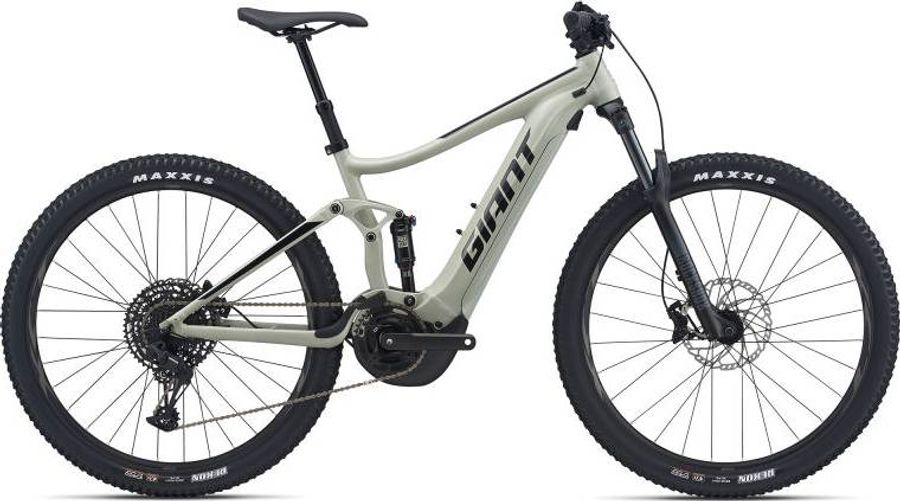

Giant Stance E+ 1 2021

E-Bike
MTB Trail
Groupset
SRAM SX Eagle
Frame material
Alloy
Wheel size
29"
Suspension type
Full suspension
Front travel
130mm
Rear travel
120mm
Giant Stance E+ 1 2021

About the Giant Stance E+ 1 2021

The Giant Stance E+ 1 2021 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a SRAM SX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and hydraulic disc brakes.

Features

The Giant Stance E+ 1 2021 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
freio-hidraulico
Hydraulic disc brakes More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Pedals
Aluminum Platform
Remote
Giant RideControl Plus
Components
Steam
Giant Contact
Saddle
Giant Sport
Battery
Giant EnergyPak Smart 625, 36V Integrated Lithium-Ion
Seatpost
Giant Contact Switch, dropper, 30,9mm (S:125/M:150/L&XL:170)
Handlebar
Giant Connect TR Riser 31.8x780mm
Brake lever
Shimano MT401
Brakes
Shimano BR-MT420 Hydraulic disc brake 4 piston
Brake hose color kit
Black
Brake hose kit
SM-BH90-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT420
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
D03S Resin
Pad standard
D02S Metal
Pad mount
Split pin
Piston
4
Piston material
Resin
Recommended brake lever
BL-MT401
BL-MT402-3A
Recommended disc brake rotor
SM-RT30 *
SM-RT54 *
SM-RT56 *
SM-RT64
Drivetrain
Crankset
SRAM X-Sync Eagle 38T 104BCD chainring Forged Alloy minimal Q-factor, (S:160, M/L:165, XL:170)
Motor
Giant SyncDrive Sport
Shifter
SRAM SX Eagle 12-speed
Front derailleur
MRP 1X CS custom
Chain
SRAM SX Eagle
Cassette
SRAM PG-1210 Eagle 12s
Cog finish cassete
Black
Cog sizes
11-50t:11,13,15,17,19,22,25,28,32,36,42,50
Gearing
11-50t
Model
CS-PG-1210-A1
Name
PG-1210 Eagle™ Cassette
Speed
12s
Technology cassete
PG
Rear derailleur
SRAM SX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
50
Model
RD-SX-1-A1
Name
SX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Frameset
Frame
ALUXX SL-grade aluminum, 120mm FlexPoint suspension system
Front suspension
RockShox Recon Silver RL Solo Air
Color
Diffusion Black, Gloss Black
Damper type
Motion Control
fork offset
37mm (27.5"), 42mm (27.5"), 42mm (29"), 46mm (27.5"), 46mm (29"), 51mm (29")
Max tire width (mm)
62, 81
Maximum rotor size
220mm
Minimum rotor size
160mm
Model
FS-RCNS-RL-D1
Name
Recon Silver RL
Spring
Solo Air
Travel (mm)
100mm, 120mm, 130mm, 140mm, 150mm
Upper tube type
32mm straight wall steel
Wheel size
27.5", 29"
Rear suspension
RockShox Monarch RT
Body eyelet
No Bushing, Standard
Compression tune
H, L, L1, L3, M
Eye to eye stroke
152x31, 165x38, 184x44, 190x51, 200x51, 200x57, 216x63
Lockout force
320, 380
Model
RS-MNR-RT-D3
Name
Monarch RT
Rebound tune
H, L, M
Shaft eyelet
No Bushing, Standard
Wheels
Rims
Giant XCT 29 Tubeless Ready 25mm e-bike optimized
Tires
Maxxis Rekon 29x2.4" foldable, 60tpi, EXO, Tubeless Ready
Spokes
Stainless Steel
Rear hub
Giant eTracker Sport, [F] 15mm Thru-Axle [R] 141mm QR
Front hub
Giant eTracker Sport, [F] 15mm Thru-Axle [R] 141mm QR

Geometry

Size SM MD LG XL
a
Seat tube length
406,0
432,0
482,0
507,0
b
Seat tube angle
73,5º
73,5º
73,5º
73,5º
c
Top tube length
586,0
606,0
631,0
656,0
d
Head tube length
100,0
110,0
120,0
135,0
e
Head tube angle
67,0º
67,0º
67,0º
67,0º
f
Rake
40,0
40,0
40,0
40,0
g
Trail
113,6
113,6
113,6
113,6
h
Wheelbase
1172,0
1193,0
1219,0
1246,0
i
Chainstay length
481,0
481,0
481,0
481,0
j
Bottom bracket drop
20,0
20,0
20,0
20,0
k
Stack height
599,0
609,0
618,0
632,0
l
Reach
410,0
427,0
450,0
471,0
m
Standover height
747,0
762,0
794,0
798,0
x
Bottom bracket height
354,0
354,0
354,0
354,0
y
Front center
692,0
713,0
739,0
766,0
