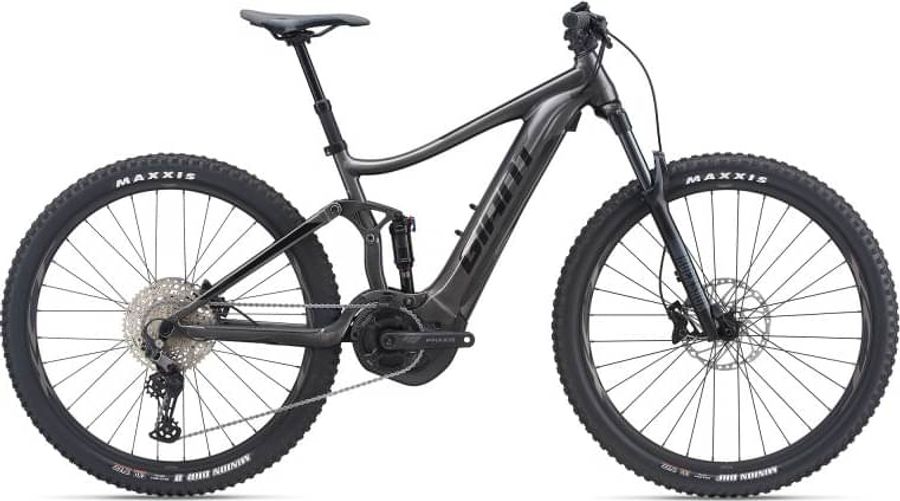

Giant Stance E+ 1 Pro 2021
The Giant Stance E+ 1 Pro 2021 is an electric-bike. E-bikes are bicycles with a battery-powered assist that comes via pedaling, so when you push the pedals a motor engages and gives you a boost.
E-Bike
Groupset
Shimano Deore
Frame material
Alloy
Wheel size
29"
Suspension type
Full suspension
Front travel
130mm
Rear travel
120mm
About the Giant Stance E+ 1 Pro 2021
The Giant Stance E+ 1 Pro 2021 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a Shimano Deore drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148.
Features
Dropper seatpost
More info
Dropper seatpost
Boost 110
More info
Boost 110
Boost 148
More info
Boost 148
E-THRU AXLE
More info
E-THRU AXLE
Hydraulic disc brakes
More info
Hydraulic disc brakes
Tapered head tube
More info
Tapered head tube
Tubeless ready
More info
Tubeless ready
Specifications
|
Steam
|
Giant Contact
|
|---|---|
|
Saddle
|
Giant Romero Trail
|
|
Battery
|
Giant EnergyPak Smart 625, 36V 17.3Ah integrated Lithium-Ion
|
|
Seatpost
|
Giant Contact Switch, dropper, 30,9mm (S:100/M:125/L:150/XL:170)
|
|
Handlebar
|
Giant Connect TR Riser 31.8x780mm
|
|
Brake lever
|
Shimano Deore BL-M4100 I-spec EV
|
|
Brakes
|
Shimano BR-MT420
Hydraulic disc brake
4 piston
|
|
BL-MT402-3A SM-RT54 * SM-RT56 * SM-RT64 |
|
|
Crankset
|
Praxis Wavetm 36T Cold Forged 4130 premium steel Praxis e-Cadet+ custom forged crankarm set (Q-factor=168, S:160, M/L:165, XL:170)
|
|---|---|
|
Motor
|
Giant SyncDrive Pro
|
|
Shifter
|
Shimano Deore 12-speed I-spec EV
|
|
Front derailleur
|
MRP 1X custom "V3" co-moulded TR chain guide
|
|
Cassette
|
Shimano Deore CS-M6100-12
HYPERGLIDE+
|
|
|
|
|
Rear derailleur
|
Shimano Deore RD-M6100
SGS
12s
|
|
|
|
|
Chain
|
KMC e12 Turbo
|
|
Frame
|
ALUXX SL-grade aluminium, 120mm FlexPoint suspension system
|
|---|---|
|
Front suspension
|
RockShox Recon Silver RL
Solo Air
|
|
|
|
|
Rear suspension
|
RockShox Monarch RT
|
|
|
|
|
Rims
|
Giant XCT 29 Tubeless Ready 25mm e-bike optimised
|
|---|---|
|
Tires
|
Maxxis Minion DHF 29X2.5" 60TPI Foldable, TLR EXO [F]Maxxis Minion DHR II 29X2.40 60TPI Foldable TLR EXO [R]
|
|
Spokes
|
Sapim E-Lite [R] Race [F], e-bike optimised
|
|
Rear hub
|
Shimano MT410 Boost, Center-Lock, [F] 110x15 [R] 148x12mm Micro-Spline Drive Body Thru-axle
|
|
Front hub
|
Shimano MT410 Boost, Center-Lock, [F] 110x15 [R] 148x12mm Micro-Spline Drive Body Thru-axle
|
Geometry
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
|
a
Seat tube length
|
406,0
|
432,0
|
482,0
|
507,0
|
|
b
Seat tube angle
|
73,5º
|
73,5º
|
73,5º
|
73,5º
|
|
c
Top tube length
|
586,0
|
606,0
|
631,0
|
656,0
|
|
d
Head tube length
|
100,0
|
110,0
|
120,0
|
135,0
|
|
e
Head tube angle
|
67,0º
|
67,0º
|
67,0º
|
67,0º
|
|
f
Rake
|
40,0
|
40,0
|
40,0
|
40,0
|
|
g
Trail
|
113,6
|
113,6
|
113,6
|
113,6
|
|
h
Wheelbase
|
1172,0
|
1193,0
|
1219,0
|
1246,0
|
|
i
Chainstay length
|
481,0
|
481,0
|
481,0
|
481,0
|
|
j
Bottom bracket drop
|
20,0
|
20,0
|
20,0
|
20,0
|
|
k
Stack height
|
599,0
|
609,0
|
618,0
|
632,0
|
|
l
Reach
|
410,0
|
427,0
|
450,0
|
471,0
|
|
m
Standover height
|
747,0
|
762,0
|
794,0
|
798,0
|
|
x
Bottom bracket height
|
354,0
|
354,0
|
354,0
|
354,0
|
|
y
Front center
|
692,0
|
713,0
|
739,0
|
766,0
|
