Giant Stance E+ 2 2022

E-Bike
MTB Trail
Groupset
Shimano Deore
Frame material
Alloy
Wheel size
29"
Suspension type
Full suspension
Front travel
130mm
Rear travel
120mm

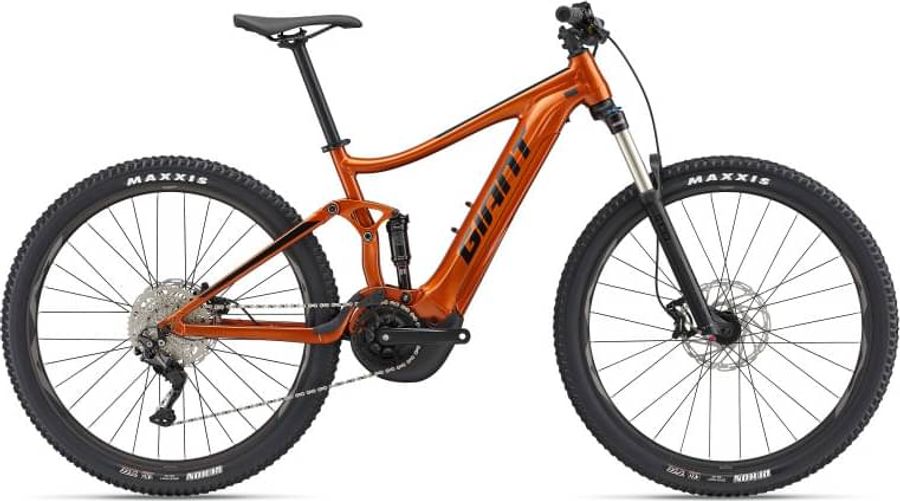

Giant Stance E+ 2 2022

About the Giant Stance E+ 2 2022

The Giant Stance E+ 2 2022 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a Shimano Deore drivetrain of 10 gears (1x10). Its features include boost 110 , hydraulic disc brakes, and tubeless ready.

Features

The Giant Stance E+ 2 2022 has 3 features listed below.
cubo-dianteiro-boost
Boost 110 More info
freio-hidraulico
Hydraulic disc brakes More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Grip
Giant Tactal single lock-on
Pedals
Platform
Remote
ANT+ Wireless display compatible
Components
Steam
Giant Contact S:50mm, M:50mm, L:50mm, XL:60mm
Saddle
Giant Sport
Battery
EnergyPak Smart 500Wh
Charger
EnergyPak 4A smart charger
Seatpost
Giant 30.9mm, 2-bolt Micro Adjust, alloy
Handlebar
Giant Connect TR Riser 31.8mm
Brake lever
Tektro HD-M745 Orion
Brakes
Tektro HD-M745
Drivetrain
Crankset
Forged Alloy minimal Q-factor, 36T Steel Direct Mount ring (S:160mm, M:165mm, L:165mm, XL:170mm)
Motor
SyncDrive Sport, 70Nm, powered by Yamaha
Shifter
Shimano Deore, 10-speed
Rear derailleur
Shimano Deore RD-M6000-GS GS 10s
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 10-speed
Lower pulley max
42T
Lower pulley min
42T
Model
RD-M6000-GS
P axle finish
Painted
P axle material
Steel
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
Pulley cage
GS
Speeds
10
Upper pulley max
11T
Upper pulley min
11T
Total capacity
41T
Chain
KMC e10 Sport
Cassette
Shimano Deore CS-M4100-10 HG
Combination names
11-42T
11-46T
Compatible chain
HG-X 10-speed
Lock ring finish
Plated
Lock ring material
Steel
Model
CS-M4100-10
Steel gear finish
Plated
Steel gear pieces
10
Type
HG
Frameset
Frame
ALUXX grade aluminum, FlexPoint, 120mm travel
Rear suspension
RockShox Monarch R 205 g
Body eyelet
Standard
Compression tune
H, L, L3, M
Eye to eye stroke
152x31, 165x38, 184x44, 190x51, 200x51, 200x57, 216x63
Model
RS-MNR-R-C3
Name
Monarch R
Rebound tune
H, L, M
Shaft eyelet
Standard
Weight based on
165x38, standard air can, standard eyelet, no hardware
Weight
205
Front suspension
SR Suntour XCR-34
Wheels
Rims
Giant AM 29", Tubeless ready
Tires
Maxxis Rekon 29x2.4", foldable, TLR, EXO
Spokes
Stainless steel
Rear hub
Giant eTracker Sport
Front hub
Giant eTracker Sport

Geometry

Size SM MD LG XL
a
Seat tube length
406,0
432,0
482,0
507,0
b
Seat tube angle
73,5º
73,5º
73,5º
73,5º
c
Top tube length
586,0
606,0
631,0
656,0
d
Head tube length
100,0
110,0
120,0
135,0
e
Head tube angle
67,0º
67,0º
67,0º
67,0º
f
Rake
40,0
40,0
40,0
40,0
g
Trail
113,6
113,6
113,6
113,6
h
Wheelbase
1172,0
1193,0
1219,0
1246,0
i
Chainstay length
481,0
481,0
481,0
481,0
j
Bottom bracket drop
20,0
20,0
20,0
20,0
k
Stack height
599,0
609,0
618,0
632,0
l
Reach
410,0
427,0
450,0
471,0
m
Standover height
747,0
762,0
794,0
798,0
x
Bottom bracket height
354,0
354,0
354,0
354,0
y
Front center
692,0
713,0
739,0
766,0
