Giant STP 26 2021

MTB Trail
Groupset
Shimano Deore
Frame material
Alloy
Wheel size
26"
Suspension type
Hardtail
Front travel
120mm

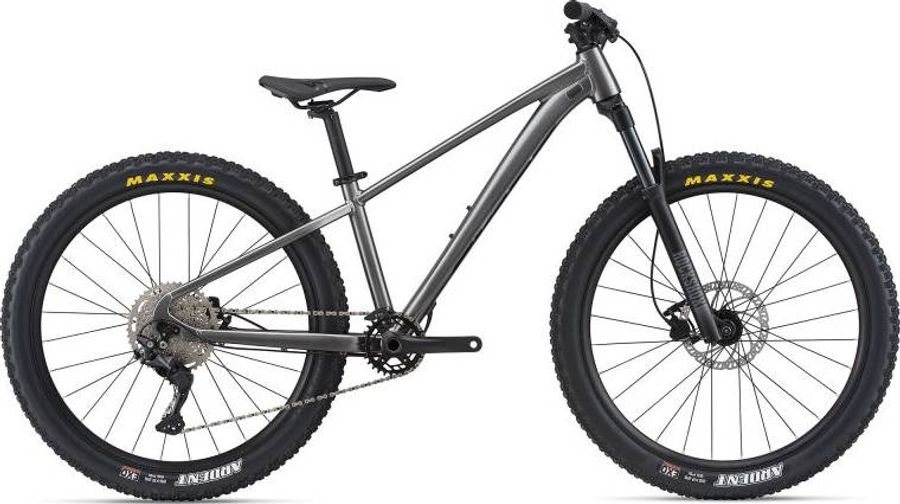

Giant STP 26 2021

About the Giant STP 26 2021

The Giant STP 26 2021 is a Hardtail Trail Mountain Bike with a alloy frame. Equipped with a Shimano Deore drivetrain of 10 gears (1x10). Its features include boost 110 , hydraulic disc brakes, and remote lockout.

Features

The Giant STP 26 2021 has 3 features listed below.
cubo-dianteiro-boost
Boost 110 More info
freio-hidraulico
Hydraulic disc brakes More info
trava-remota-guidao
Remote lockout More info

Specifications

Acessories
Pedals
platform
Components
Steam
forged alloy, 0-degree
Saddle
Giant Sport
Seatpost
alloy, two-bolt, 30.9x350
Handlebar
Giant Sport, alloy, 31.8
Brake lever
Tektro HD-M275
Brakes
Tektro HD-M275
Drivetrain
Crankset
alloy forged, 30t
Shifter
Shimano
Bottom bracket
threaded
Rear derailleur
Shimano Deore RD-M6000-GS GS 10s
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 10-speed
Lower pulley max
42T
Lower pulley min
42T
Model
RD-M6000-GS
P axle finish
Painted
P axle material
Steel
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
Pulley cage
GS
Speeds
10
Upper pulley max
11T
Upper pulley min
11T
Total capacity
41T
Chain
KMC X10
Cassette
Shimano Deore CS-M4100-10 HG
Combination names
11-42T
11-46T
Compatible chain
HG-X 10-speed
Lock ring finish
Plated
Lock ring material
Steel
Model
CS-M4100-10
Steel gear finish
Plated
Steel gear pieces
10
Type
HG
Frameset
Frame
ALUXX-Grade Aluminum, horizontal dropouts, integrated chain tensioner
Front suspension
RockShox Recon Silver RL Solo Air
Color
Diffusion Black, Gloss Black
Damper type
Motion Control
fork offset
37mm (27.5"), 42mm (27.5"), 42mm (29"), 46mm (27.5"), 46mm (29"), 51mm (29")
Max tire width (mm)
62, 81
Maximum rotor size
220mm
Minimum rotor size
160mm
Model
FS-RCNS-RL-D1
Name
Recon Silver RL
Spring
Solo Air
Travel (mm)
100mm, 120mm, 130mm, 140mm, 150mm
Upper tube type
32mm straight wall steel
Wheel size
27.5", 29"
Wheels
Rims
Giant 26", alloy, 28mm inner width
Tires
Maxxis Ardent, 26x2.25
Spokes
stainless, 14g
Rear hub
Giant Disc, 28h, QR, alloy, disc
Front hub
Giant Disc, 28h, QR, alloy, disc

Geometry

Size Regular LG
a
Seat tube length
-
-
b
Seat tube angle
73,5º
73,5º
c
Top tube length
545,0
575,0
d
Head tube length
100,0
110,0
e
Head tube angle
67,0º
67,0º
f
Rake
-
-
g
Trail
-
-
h
Wheelbase
1086,0
1117,0
i
Chainstay length
435,0
435,0
j
Bottom bracket drop
-
-
k
Stack height
579,0
588,0
l
Reach
374,0
401,0
m
Standover height
-
-
x
Bottom bracket height
-
-
y
Front center
-
-
