Giant Talon 2 2018

MTB Cross Country
Groupset
Shimano Deore
Frame material
Alloy
Wheel size
27,5"
Suspension type
Hardtail
Front travel
100mm

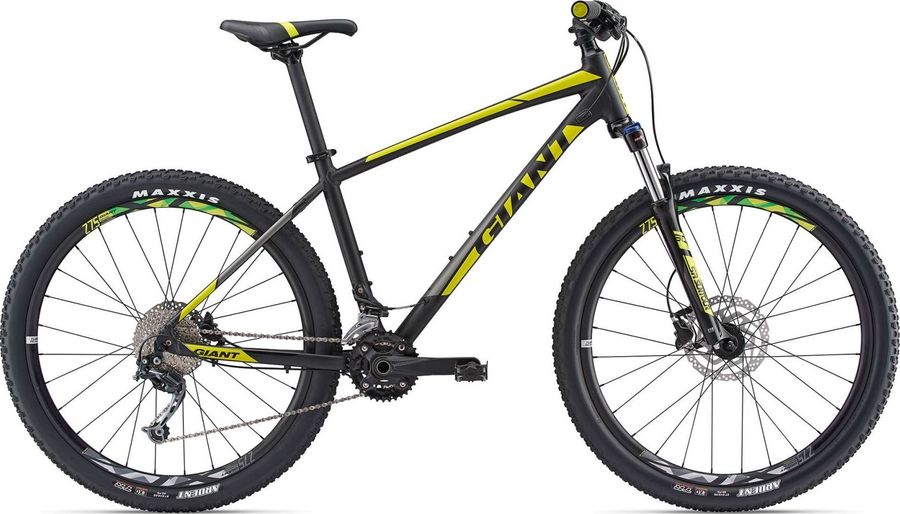

Giant Talon 2 2018

About the Giant Talon 2 2018

The Giant Talon 2 2018 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano Deore drivetrain of 18 gears (2x9). Its features include hydraulic disc brakes.

Features

The Giant Talon 2 2018 has 1 features listed below.
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Pedals
Platform, Caged
Components
Steam
Giant Sport
Saddle
Giant Contact Comfort
Seatpost
Giant Sport, 30.9mm
Handlebar
Giant Connect Trail, 31.8mm
Brake lever
Tektro HDC-M285
Brakes
Tektro HD-M285
Drivetrain
Crankset
Prowheel RAID-501TT, 22/36
Shifter
Shimano Acera
Bottom bracket
Sealed Cartridge, Threaded
Front derailleur
Shimano Alivio, Direct Mount
Rear derailleur
Shimano Deore RD-M592 SGS 9s
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Steel
Bracket body finish
Painted
Bracket body material
Aluminum
Cable fixing bolt finish
Plated
Cable fixing bolt material
Steel
Compatible chain
HG 9-speed
Lower pulley max
36T
Lower pulley min
32T
Model
RD-M592-SGS
P axle material
Steel
Pulley bolts material
Stainless steel
Sunken type pulley bolt
Pulley teeth
11T
Pulley cage
SGS
Speeds
9
Upper pulley max
12T
Upper pulley min
11T
Total capacity
45T
Chain
KMC X9
Cassette
Shimano Alivio CS-HG400-9 HG
Combination names
11-28T
11-32T
11-34T
12-36T
11-36T
Compatible chain
HG 9-speed
Lock ring finish
Ni-Ni plated
Lock ring material
Steel
Model
CS-HG400-9
Steel gear finish
Ni-Ni plated
Steel gear pieces
9
Type
HG
Frameset
Frame
ALUXX-grade aluminum
Front suspension
SR Suntour XCM HLO
Wheels
Rims
Giant XC-2 Disc, Tubeless
Tires
Maxxis Ardent, 27.5x2.25, Tubeless, 60 TPI
Spokes
Sapim Leader, 14g
Rear hub
Giant Tracker Sport
Front hub
Giant Tracker Sport

Geometry

Size SM MD LG XL
a
Seat tube length
390,0
430,0
490,0
535,0
b
Seat tube angle
73,5º
73,5º
73,5º
73,5º
c
Top tube length
577,0
602,0
622,0
647,0
d
Head tube length
115,0
130,0
155,0
170,0
e
Head tube angle
68,0º
68,0º
68,0º
68,0º
f
Rake
42,0
42,0
42,0
42,0
g
Trail
98,0
98,0
98,0
98,0
h
Wheelbase
1110,0
1135,0
1160,0
1186,0
i
Chainstay length
447,0
447,0
447,0
447,0
j
Bottom bracket drop
45,0
45,0
45,0
45,0
k
Stack height
598,0
612,0
635,0
649,0
l
Reach
406,0
426,0
441,0
462,0
m
Standover height
721,0
756,0
795,0
830,0
x
Bottom bracket height
310,0
310,0
310,0
310,0
y
Front center
667,0
692,0
717,0
743,0
