Giant Talon 3 2017

MTB Cross Country
Groupset
Shimano Acera
Frame material
Alloy
Wheel size
27,5"
Suspension type
Hardtail
Front travel
100mm

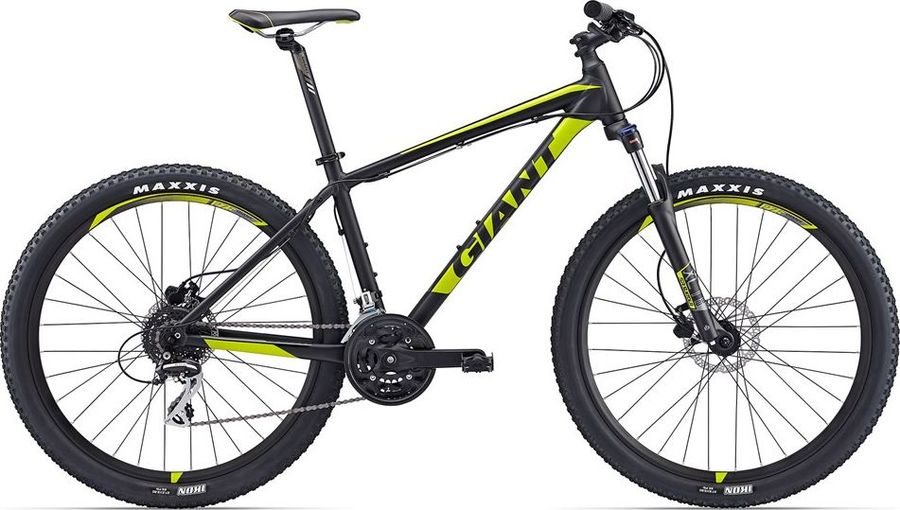

Giant Talon 3 2017

About the Giant Talon 3 2017

The Giant Talon 3 2017 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano Acera drivetrain of 24 gears (3x8). Its features include hydraulic disc brakes.

Features

The Giant Talon 3 2017 has 1 features listed below.
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Pedals
MTB Caged
Components
Steam
Giant Sport
Saddle
Giant Connect Upright
Seatpost
Giant Sport, 30.9mm
Handlebar
Giant Connect Trail, 31.8mm
Brake lever
Tektro Auriga
Brakes
Tektro Auriga
Drivetrain
Crankset
Prowheel, 24/34/42
Shifter
Shimano M310
Bottom bracket
Sealed Cartridge, Threaded
Front derailleur
Shimano Altus
Chain
KMC Z7
Cassette
Shimano CS-HG31-8 HG
Combination names
11-30T
11-32T
11-34T
Compatible chain
IG/HG
Lock ring finish
Phosphate coated
Lock ring material
Steel
Model
CS-HG31-8
Steel gear finish
Phosphate coated
Steel gear pieces
8
Type
HG
Rear derailleur
Shimano Acera RD-M360 SGS 8/7s
B axle material
Stainless steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG 8/7-speed
Lower pulley max
34T
Lower pulley min
28T
Model
RD-M360-SGS
P axle finish
Zinc plated
P axle material
Steel
pulley.screws_material
Steel
Pulley teeth
13/13T
Pulley cage
SGS
Speeds
8/7
Upper pulley max
14T
Upper pulley min
11T
Total capacity
43T
Frameset
Frame
ALUXX-grade aluminum
Front suspension
SR Suntour XCT
Wheels
Rims
Giant Alloy, Double wall
Tires
Maxxis Ikon, 27.5x2.2, Wire
Spokes
Stainless Steel, 14g
Rear hub
Alloy, 32h
Front hub
Alloy, 32h

Geometry

Size XS SM MD LG XL
a
Seat tube length
-
-
-
-
-
b
Seat tube angle
73,5º
73,5º
73,0º
73,0º
72,5º
c
Top tube length
545,0
570,0
595,0
615,0
640,0
d
Head tube length
100,0
105,0
115,0
130,0
145,0
e
Head tube angle
68,0º
68,0º
68,0º
68,0º
68,0º
f
Rake
-
-
-
-
-
g
Trail
-
-
-
-
-
h
Wheelbase
1072,0
1098,0
1118,0
1139,0
1160,0
i
Chainstay length
440,0
440,0
440,0
440,0
440,0
j
Bottom bracket drop
-
-
-
-
-
k
Stack height
578,0
583,0
592,0
606,0
620,0
l
Reach
374,0
397,0
414,0
430,0
445,0
m
Standover height
679,0
704,0
732,0
769,0
806,0
x
Bottom bracket height
-
-
-
-
-
y
Front center
-
-
-
-
-
