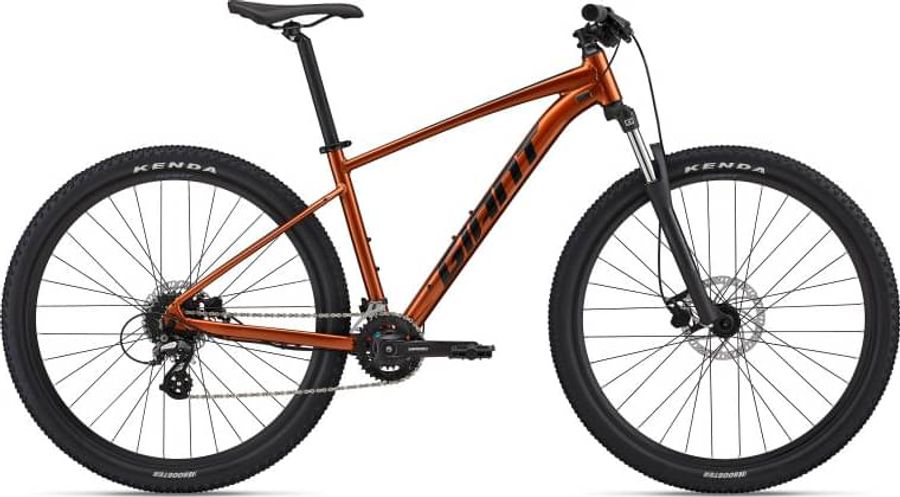

Giant Talon 3 2022
Groupset
Shimano Altus
Frame material
Alloy
Wheel size
27,5" / 29"
Suspension type
Hardtail
Front travel
80mm
About the Giant Talon 3 2022
The Giant Talon 3 2022 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano Altus drivetrain of 16 gears (2x8). Its features include hydraulic disc brakes.
Features
Hydraulic disc brakes
More info
Hydraulic disc brakes
Specifications
|
Grip
|
Giant Sole-O
|
|---|---|
|
Pedals
|
MTB caged
|
|
Steam
|
Giant Sport, 7-degree XS: 40mm (27.5) S: 50mm (27.5) / 50mm (29) M: 60mm (29) L: 70mm (29) XL: 80mm (29)
|
|---|---|
|
Saddle
|
Giant custom
|
|
Seatpost
|
Giant Sport, 30.9mm
|
|
Handlebar
|
Giant Connect Trail, 31.8mm
|
|
Brake lever
|
Tektro TDK143
|
|
Brakes
|
Tektro TKD 143
|
|
Crankset
|
Shimano FC-M315, 22/36 XS: 170mm (27.5) S: 170mm (27.5) / 170mm (29) M: 175mm (29), L: 175mm (29) XL: 175mm (29)
|
|---|---|
|
Shifter
|
microSHIFT TS39, 2x8
|
|
Bottom bracket
|
Cartridge
|
|
Front derailleur
|
microSHIFT FD-M282
|
|
Rear derailleur
|
Shimano Altus RD-M310
Smart
8/7s
|
|
|
|
|
Chain
|
KMC 8v
|
|
Cassette
|
Shimano Altus CS-HG200-8
HG
|
|
|
|
|
Frame
|
ALUXX-Grade Aluminium, disc
|
|---|---|
|
Front suspension
|
SR Suntour XCE
|
|
Rims
|
Giant GX03V 29 or 27.5, alloy, double wall
|
|---|---|
|
Tires
|
Kenda Booster 27.5 or 29x2.2", wire bead
|
|
Spokes
|
Stainless, 14g
|
|
Rear hub
|
Alloy, sealed bearing
|
|
Front hub
|
Alloy, sealed bearing
|
Geometry
| Size | XS | SM | SM | MD | LG | XL |
|---|---|---|---|---|---|---|
|
a
Seat tube length
|
350,0
|
385,0
|
390,0
|
440,0
|
490,0
|
535,0
|
|
b
Seat tube angle
|
74,0º
|
74,0º
|
74,0º
|
74,0º
|
74,0º
|
74,0º
|
|
c
Top tube length
|
545,0
|
570,0
|
578,0
|
600,0
|
621,0
|
640,0
|
|
d
Head tube length
|
95,0
|
115,0
|
95,0
|
105,0
|
125,0
|
140,0
|
|
e
Head tube angle
|
67,5º
|
67,5º
|
68,5º
|
68,5º
|
68,5º
|
68,5º
|
|
f
Rake
|
42,0
|
42,0
|
51,0
|
51,0
|
51,0
|
51,0
|
|
g
Trail
|
103,0
|
103,0
|
94,0
|
94,0
|
94,0
|
94,0
|
|
h
Wheelbase
|
1080,0
|
1107,0
|
1127,0
|
1151,0
|
1173,0
|
1193,0
|
|
i
Chainstay length
|
441,0
|
441,0
|
456,0
|
456,0
|
456,0
|
456,0
|
|
j
Bottom bracket drop
|
45,0
|
45,0
|
55,0
|
55,0
|
55,0
|
55,0
|
|
k
Stack height
|
534,0
|
572,0
|
603,0
|
612,0
|
631,0
|
645,0
|
|
l
Reach
|
386,0
|
406,0
|
405,0
|
425,0
|
440,0
|
455,0
|
|
m
Standover height
|
687,0
|
712,0
|
733,0
|
767,0
|
806,0
|
840,0
|
|
x
Bottom bracket height
|
310,0
|
310,0
|
319,0
|
319,0
|
319,0
|
319,0
|
|
y
Front center
|
643,0
|
670,0
|
677,0
|
700,0
|
722,0
|
742,0
|
