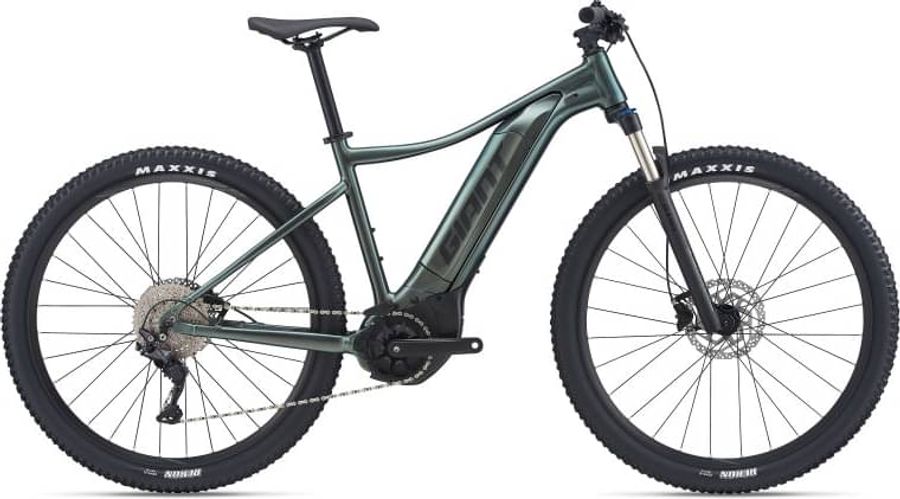

Giant Talon E+ 1 2022

E-Bike
MTB Cross Country
Groupset
Shimano Deore
Frame material
Alloy
Wheel size
29"
Suspension type
Hardtail
Front travel
100mm
Giant Talon E+ 1 2022

About the Giant Talon E+ 1 2022

The Giant Talon E+ 1 2022 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano Deore drivetrain of 10 gears (1x10). Its features include hydraulic disc brakes.

Features

The Giant Talon E+ 1 2022 has 1 features listed below.
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Grip
Giant Sole-O Grip
Remote
RideControl Dash, full colour LCD screen
Components
Steam
Giant Sport, alloy, 7-degree S: 50mm, M: 60mm, L: 60mm, XL: 70MM
Saddle
Giant Sport
Battery
EnergyPak 500Wh
Seatpost
Giant 30.9mm, 2-bolt Micro Adjust, alloy
Handlebar
Giant Connect TR Riser 31.8mm
Brake lever
Shimano BL-MT200
Brakes
Shimano BR-MT200 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT200
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin
Piston
2
Piston material
Resin
Recommended brake lever
BL-MT201
BL-MT200
Recommended disc brake rotor
SM-RT10*
SM-RT26*
Drivetrain
Crankset
Forged alloy, 36T S:165mm, M:165mm, L:170mm, XL:170mm
Motor
SyncDrive Core, 50Nm, Powered by Yamaha
Shifter
Shimano Deore
Rear derailleur
Shimano Deore RD-M6000-GS GS 10s
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 10-speed
Lower pulley max
42T
Lower pulley min
42T
Model
RD-M6000-GS
P axle finish
Painted
P axle material
Steel
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
Pulley cage
GS
Speeds
10
Upper pulley max
11T
Upper pulley min
11T
Total capacity
41T
Cassette
Shimano Deore CS-HG50-10 HG
Combination names
11-36T
Compatible chain
HG-X 10-speed
Lock ring finish
Cr plated
Lock ring material
Steel
Model
CS-HG50-10
Steel gear finish
Ni plated
Steel gear pieces
10
Type
HG
Chain
KMC e10 Sport
Frameset
Frame
ALUXX-Grade aluminium, disc
Front suspension
SR Suntour XCR 32
Wheels
Rims
Giant alloy disc
Tires
Maxxis Rekon 29x2.4"
Spokes
Stainless steel
Rear hub
Giant eTracker Sport
Front hub
Giant eTracker Sport

Geometry

Size SM MD LG XL
a
Seat tube length
405,0
455,0
505,0
535,0
b
Seat tube angle
73,0º
73,0º
73,0º
73,0º
c
Top tube length
580,0
605,0
630,0
655,0
d
Head tube length
105,0
115,0
125,0
140,0
e
Head tube angle
68,0º
68,0º
68,0º
68,0º
f
Rake
46,0
46,0
46,0
46,0
g
Trail
100,7
100,7
100,7
100,7
h
Wheelbase
1146,0
1172,0
1198,0
1224,0
i
Chainstay length
480,0
480,0
480,0
480,0
j
Bottom bracket drop
45,0
45,0
45,0
45,0
k
Stack height
630,0
639,0
648,0
662,0
l
Reach
389,0
411,0
433,0
454,0
m
Standover height
728,0
758,0
793,0
813,0
x
Bottom bracket height
329,0
329,0
329,0
329,0
y
Front center
670,0
696,0
722,0
747,0
