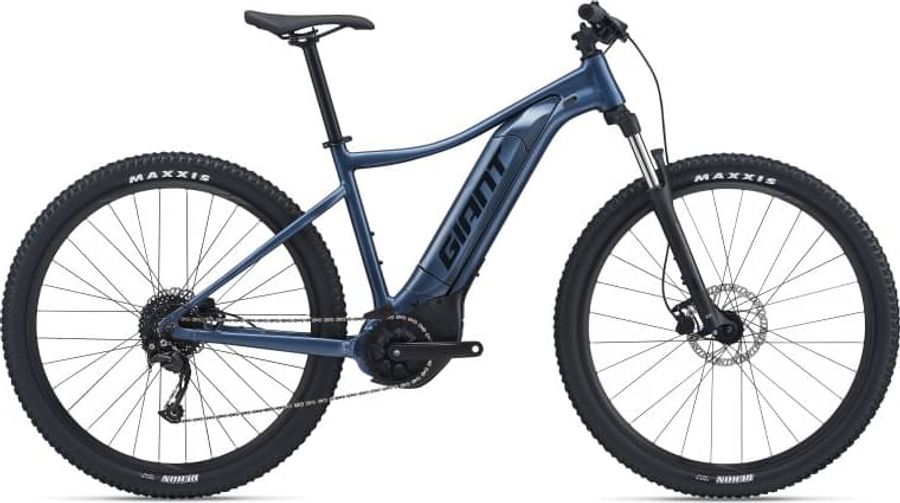

Giant Talon E+ 3 2022
The Giant Talon E+ 3 2022 is an electric-bike. E-bikes are bicycles with a battery-powered assist that comes via pedaling, so when you push the pedals a motor engages and gives you a boost.
E-Bike
Groupset
Shimano Alivio
Frame material
Alloy
Wheel size
29"
Suspension type
Hardtail
Front travel
100mm
About the Giant Talon E+ 3 2022
The Giant Talon E+ 3 2022 is a Hardtail Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano Alivio drivetrain of 9 gears (1x9). Its features include hydraulic disc brakes.
Features
Hydraulic disc brakes
More info
Hydraulic disc brakes
Specifications
|
Grip
|
Giant Sole-O Grip
|
|---|---|
|
Remote
|
RideControl Dash, full colour LCD screen
|
|
Steam
|
Giant Sport, alloy, 7-degree S: 50mm, M: 60mm, L: 60mm, XL: 70mm
|
|---|---|
|
Saddle
|
Giant Sport
|
|
Battery
|
EnergyPak 400Wh
|
|
Seatpost
|
Giant 30.9mm, 2-bolt Micro Adjust, alloy
|
|
Handlebar
|
Giant Connect TR Riser 31.8mm
|
|
Brake lever
|
Tektro HD-M285
|
|
Brakes
|
Tektro HD-M285
|
|
Crankset
|
Forged alloy, 36T S:165mm, M:165mm, L:170mm, XL:170mm
|
|---|---|
|
Motor
|
SyncDrive Core, 50Nm, Powered by Yamaha
|
|
Shifter
|
Shimano Altus
|
|
Cassette
|
Shimano Altus CS-HG200-9
HG
|
|
11-34T 11-36T |
|
|
Rear derailleur
|
Shimano Alivio RD-M3100
SGS
9s
|
|
|
|
|
Chain
|
KMC e9 Sport
|
|
Frame
|
ALUXX-Grade aluminium, disc
|
|---|---|
|
Front suspension
|
SR Suntour XCM ATB
|
|
Rims
|
Giant alloy disc
|
|---|---|
|
Tires
|
Maxxis Rekon 29x2.4"
|
|
Spokes
|
Stainless steel
|
|
Rear hub
|
Giant eTracker Sport
|
|
Front hub
|
Giant eTracker Sport
|
Geometry
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
|
a
Seat tube length
|
405,0
|
455,0
|
505,0
|
535,0
|
|
b
Seat tube angle
|
73,0º
|
73,0º
|
73,0º
|
73,0º
|
|
c
Top tube length
|
580,0
|
605,0
|
630,0
|
655,0
|
|
d
Head tube length
|
105,0
|
115,0
|
125,0
|
140,0
|
|
e
Head tube angle
|
68,0º
|
68,0º
|
68,0º
|
68,0º
|
|
f
Rake
|
46,0
|
46,0
|
46,0
|
46,0
|
|
g
Trail
|
100,7
|
100,7
|
100,7
|
100,7
|
|
h
Wheelbase
|
1146,0
|
1172,0
|
1198,0
|
1224,0
|
|
i
Chainstay length
|
480,0
|
480,0
|
480,0
|
480,0
|
|
j
Bottom bracket drop
|
45,0
|
45,0
|
45,0
|
45,0
|
|
k
Stack height
|
630,0
|
639,0
|
648,0
|
662,0
|
|
l
Reach
|
389,0
|
411,0
|
433,0
|
454,0
|
|
m
Standover height
|
728,0
|
758,0
|
793,0
|
813,0
|
|
x
Bottom bracket height
|
329,0
|
329,0
|
329,0
|
329,0
|
|
y
Front center
|
670,0
|
696,0
|
722,0
|
747,0
|
