Giant Trance 2 2019

MTB Cross Country
Groupset
Shimano SLX
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension

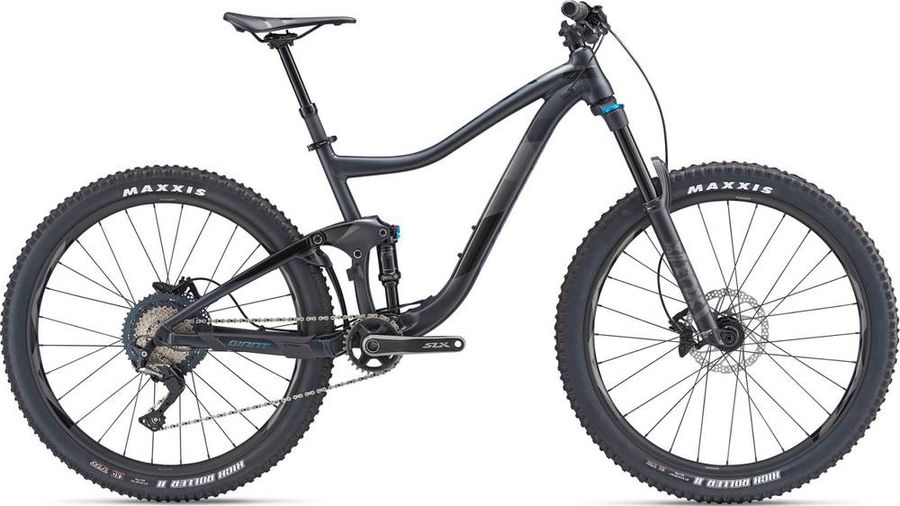

Giant Trance 2 2019

About the Giant Trance 2 2019

The Giant Trance 2 2019 is a Full suspension Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano SLX drivetrain of 11 gears (1x11).

Specifications

Components
Brake lever
Shimano BL-MT501
Seatpost
Giant Contact
Steam
Giant Connect
Handlebar
Giant Connect
Brakes
Shimano BR-MT520 Hydraulic disc brake 4 piston
Brake hose color kit
Black
Brake hose kit
SM-BH90-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT520
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
D03S resin
Pad standard
D02S Metal
Pad mount
Split pin
Piston
4
Piston material
Ceramic
Saddle
Giant Contact
Drivetrain
Crankset
Shimano SLX FC-M7000-11-1 11s
Chain line (mm)
50
Chainring combination
34T, 32T, 30T (SM-CRM70)
Primary color
Series color
Compatible bottom bracket type (outboard)
Compatible chain
HG-X11
Crank arm finish
Anodized
Crank arm material
Aluminum
Crank arm length 170 mm
Crank arm length 175 mm
Crank axle finish
Plated
Crank axle material
Steel
Crank fixing bolt included
Hollowtech II
Model
FC-M7000-11-1
Pitch circle diameter
96
Q factor (mm)
176
Speeds
11
Recommended bottom bracket (press fit)
BB-MT800-PA
Recommended bottom bracket (threaded normal)
BB-MT800
Spider arm finish
Painted
Spider arm material
Aluminum
Spider gear arms
4
Threaded bottom bracket shell width 68 mm
Threaded bottom bracket shell width 73 mm
Cassette
Shimano SLX CS-M7000-11 HG
Aluminum gear pieces
1 (11-40T)
1 (11-42T)
2 (11-46T)
Aluminum spider arm finish
Anodized
Aluminum spider arm pieces
1
Combination names
11-40T
11-42T
11-46T
Compatible chain
HG 11-speed, LG
Lock ring finish
Plated
Lock ring material
Steel
Model
CS-M7000-11
Steel gear finish
Shot-Ni
Steel gear pieces
10 (11-40T)
10 (11-42T)
9 (11-46T)
Type
HG
Weights
11-40T: 450g
11-42T: 476g
11-46T: 482g
Rear derailleur
Shimano SLX RD-M7000-10-SGS 313 g SGS 10s
Average weight (g)
313
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 10-speed
Lower pulley max
36T
Lower pulley min
32T
Model
RD-M7000-10-SGS
P axle material
Steel
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
Pulley cage
SGS
Speeds
10
Upper pulley max
11T
Upper pulley min
11T
Total capacity
43T
Shifter
Shimano SLX SL-M7000 135 ( /pc) g RAPIDFIRE PLUS
Average weight (g)
135 ( /pc)
Base cover material
GFRP
Clamp bolt material
Stainless steel
Primary color
Series color
Compatible rear derailleur type
MTB 11-speed
Compatible with I spec
Main lever body material
GFRP & Steel
Max multiple shifts main lever rear
3
Model
SL-M7000-11-R
Mount type
Clamp band
Optical gear display
With (removable)
Speeds
11
Release function
2-WAY RELEASE
release_lever_body.material
GFRP & Steel
Shifter type
RAPIDFIRE PLUS
Shifting lever bracket finish
Painted
Shifting lever bracket material
Aluminum
Shifting lever cable finish
OPTISLICK
Shifting lever cable material
Stainless steel
Shifting lever cable adjust
Chain
KMC X11
Frameset
Front suspension
Fox 34 Rhythm
Rear suspension
Fox Float DPS Performance
Frame
Giant ALUXX SL-Grade Alumínio
Wheels
Front hub
Giant Tracker Performance
Spokes
Sapim Leader
Rear hub
Giant Tracker Performance
Tires
Maxxis High Roller II

Geometry

Size XL XS S M L
a
Seat tube length
507,0
370,0
380,0
431,0
482,0
b
Seat tube angle
73,5º
73,5º
73,5º
73,5º
73,5º
c
Top tube length
655,0
560,0
580,0
610,0
630,0
d
Head tube length
145,0
100,0
100,0
105,0
130,0
e
Head tube angle
67,0º
67,0º
67,0º
67,0º
67,0º
f
Rake
-
-
-
-
-
g
Trail
-
-
-
-
-
h
Wheelbase
1209,0
1109,0
1129,0
1160,0
1183,0
i
Chainstay length
435,0
435,0
435,0
435,0
435,0
j
Bottom bracket drop
15,0
15,0
15,0
15,0
15,0
k
Stack height
628,0
587,0
587,0
591,0
614,0
l
Reach
469,0
386,0
406,0
435,0
448,0
m
Standover height
788,0
697,0
701,0
723,0
768,0
x
Bottom bracket height
-
-
-
-
-
y
Front center
-
-
-
-
-
