BikeWise

Giant Trance 2 2020

MTB Trail
Groupset
Shimano SLX
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Front travel
150mm
Rear travel
140mm

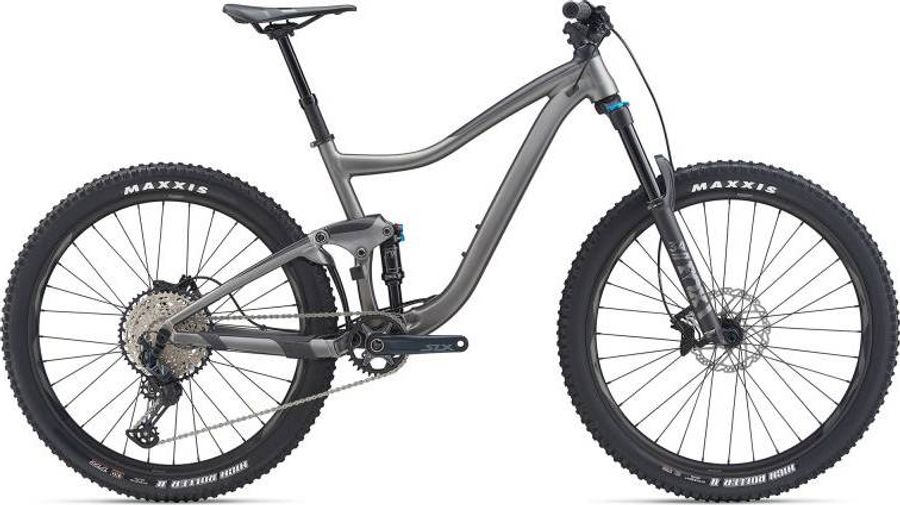

Giant Trance 2 2020

About the Giant Trance 2 2020

The Giant Trance 2 2020 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a Shimano SLX drivetrain of 12 gears (1x12). Its features include boost 110 , boost 148, and hydraulic disc brakes.

Features

The Giant Trance 2 2020 has 4 features listed below.
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info

Specifications

Components
Steam
Giant Contact
Saddle
Giant Contact, Neutral, UniClip Accessory Mount
Seatpost
Giant Contact Switch, 30.9, [S] 100mm, [M] 125mm, [L] 150mm, [XL] 170mm
Handlebar
Giant Connect Trail, 780x31.8
Brake lever
Shimano MT501
Brakes
Shimano BR-MT520 Hydraulic disc brake 4 piston
Brake hose color kit
Black
Brake hose kit
SM-BH90-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT520
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
D03S resin
Pad standard
D02S Metal
Pad mount
Split pin
Piston
4
Piston material
Ceramic
Drivetrain
Chain
Shimano
Crankset
Shimano SLX, 32t
Shifter
Shimano SLX
Bottom bracket
Shimano, press fit
Cassette
Shimano SLX CS-M7100-12 HYPERGLIDE+
Aluminum gear finish
Anodized
Aluminum gear pieces
1
Aluminum spider arm finish
Painted
Aluminum spider arm pieces
1
Combination names
10-45T
10-51T
Compatible chain
HG 12-speed
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M7100-12
Steel gear finish
Plated
Steel gear pieces
11
Type
HYPERGLIDE+
Weights
10-45T: 513g
10-51T: 534g
Rear derailleur
Shimano SLX RD-M7100 313 g SGS 12s
Average weight (g)
313
B axle hollow
B axle material
Stainless steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M7100-SGS
P axle material
Steel
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Frameset
Frame
ALUXX SL-Grade Aluminum, 140mm
Front suspension
Fox 34 Rhythm
Rear suspension
Fox Float DPS Performance
Wheels
Rims
Giant AM Tubeless, 27.5", Disc (30mm inner)
Tires
[F] Maxxis High Roller II 27.5x2.5 WT, EXO, TR [R] Maxxis High Roller II 27.5x2.4, EXO, TR, tubeless
Spokes
Sapim
Rear hub
Shimano, [F] MT400 Boost 15x110mm, [R] MT510 Boost 12x148mm
Front hub
Shimano, [F] MT400 Boost 15x110mm, [R] MT510 Boost 12x148mm

Geometry

Size XS SM MD LG XL
a
Seat tube length
370,0
380,0
431,0
482,0
507,0
b
Seat tube angle
73,5º
73,5º
73,5º
73,5º
73,5º
c
Top tube length
564,0
584,0
614,0
634,0
659,0
d
Head tube length
100,0
100,0
105,0
130,0
145,0
e
Head tube angle
67,0º
67,0º
67,0º
67,0º
67,0º
f
Rake
42,0
42,0
42,0
42,0
42,0
g
Trail
104,2
104,2
104,2
104,2
104,2
h
Wheelbase
1113,0
1133,0
1164,0
1187,0
1213,0
i
Chainstay length
439,0
439,0
439,0
439,0
439,0
j
Bottom bracket drop
15,0
15,0
15,0
15,0
15,0
k
Stack height
591,0
591,0
595,0
618,0
632,0
l
Reach
390,0
410,0
439,0
452,0
473,0
m
Standover height
701,0
705,0
727,0
772,0
792,0
x
Bottom bracket height
340,0
340,0
340,0
340,0
340,0
y
Front center
674,0
694,0
725,0
748,0
774,0
