Giant Trance 2021

MTB Trail
Groupset
Shimano Deore
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Front travel
150mm
Rear travel
140mm
Giant Trance 2021

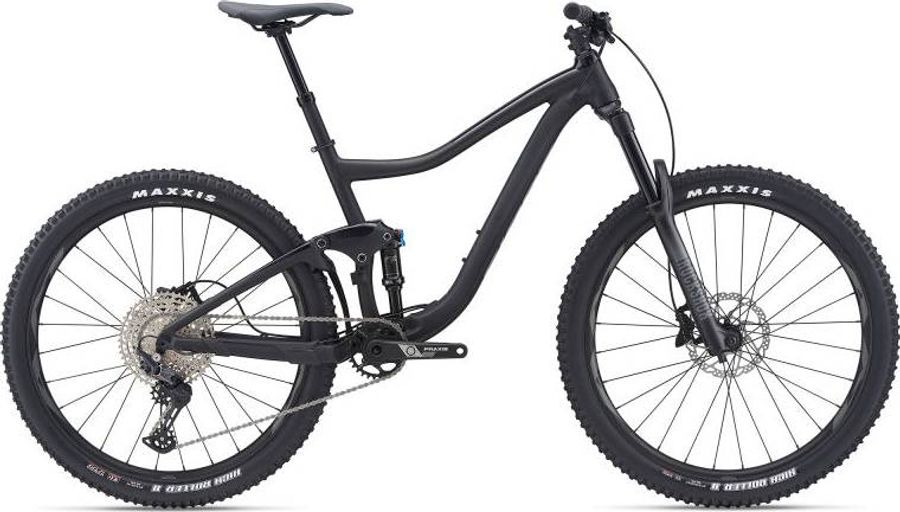

About the Giant Trance 2021

The Giant Trance 2021 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a Shimano Deore drivetrain. Its features include dropper seatpost, boost 110 , and boost 148.

Features

The Giant Trance 2021 has 6 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Pedals
platform
Components
Steam
Giant Contact
Saddle
Giant Romero
Seatpost
Giant Contact Switch dropper post with remote, 30.9
Handlebar
Giant Connect Trail, 780x35mm, 20mm rise
Brake lever
Shimano MT401
Brakes
Shimano BR-MT420 Hydraulic disc brake 4 piston
Brake hose color kit
Black
Brake hose kit
SM-BH90-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT420
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
D03S Resin
Pad standard
D02S Metal
Pad mount
Split pin
Piston
4
Piston material
Resin
Recommended brake lever
BL-MT401
BL-MT402-3A
Recommended disc brake rotor
SM-RT30 *
SM-RT54 *
SM-RT56 *
SM-RT64
Drivetrain
Chain
Shimano
Crankset
Praxis Cadet Boost, 30t
Shifter
Shimano Deore
Bottom bracket
Praxis, press fit
Rear derailleur
Shimano Deore XT RD-M8100 284 g SGS 12s
Average weight (g)
284
B axle hollow
B axle material
Stainless steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M8100-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Cassette
Shimano Deore CS-M6100-12 HYPERGLIDE+
Aluminum spider arm finish
Painted
Aluminum spider arm pieces
1
Combination names
10-51T
Compatible chain
HG 12-speed
Lock ring finish
Plated
Lock ring material
Steel
Model
CS-M6100-12
Steel gear finish
Plated
Steel gear pieces
12
Type
HYPERGLIDE+
Frameset
Frame
ALUXX SL-Grade Aluminum, 140mm Maestro suspension
Rear suspension
Fox Float DPS Performance
Front suspension
RockShox 35 Gold
Wheels
Rims
Giant AM 27.5 tubeless ready sleeve-joint rim, 30mm inner width
Tires
[F] Maxxis High Roller II 27.5x2.5, 3C, EXO, TR, tubeless [R] Maxxis High Roller II 27.5x2.4, 3C, EXO, TR, tubeless
Spokes
Sapim
Rear hub
[F] Shimano Boost 15x110, sealed bearing [R] Shimano Boost 12x148, sealed bearing
Front hub
[F] Shimano Boost 15x110, sealed bearing [R] Shimano Boost 12x148, sealed bearing

Geometry

Size SM MD LG XL
a
Seat tube length
380,0
431,0
482,0
507,0
b
Seat tube angle
73,5º
73,5º
73,5º
73,5º
c
Top tube length
577,0
607,0
627,0
652,0
d
Head tube length
100,0
105,0
130,0
145,0
e
Head tube angle
67,0º
67,0º
67,0º
67,0º
f
Rake
42,0
42,0
42,0
42,0
g
Trail
104,2
104,2
104,2
104,2
h
Wheelbase
1126,0
1157,0
1180,0
1206,0
i
Chainstay length
432,0
432,0
432,0
432,0
j
Bottom bracket drop
15,0
15,0
15,0
15,0
k
Stack height
584,0
588,0
611,0
625,0
l
Reach
403,0
432,0
445,0
466,0
m
Standover height
698,0
720,0
765,0
785,0
x
Bottom bracket height
340,0
340,0
340,0
340,0
y
Front center
694,0
725,0
748,0
774,0
