BikeWise

Giant Trance 29 2 2020

MTB Cross Country
Groupset
Shimano SLX
Frame material
Alloy
Wheel size
29"
Suspension type
Full suspension
Front travel
130mm
Rear travel
115mm

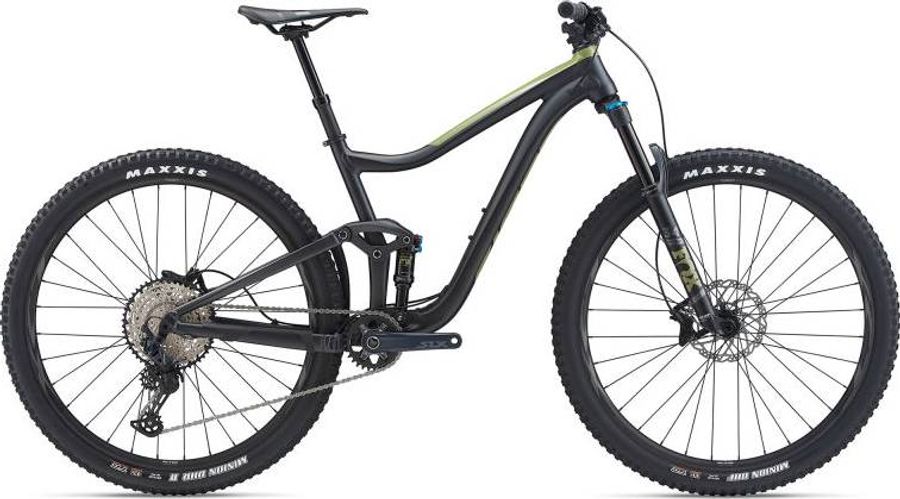

Giant Trance 29 2 2020

About the Giant Trance 29 2 2020

The Giant Trance 29 2 2020 is a Full suspension Cross Country Mountain Bike with a alloy frame. Equipped with a Shimano SLX drivetrain. Its features include dropper seatpost, boost 110 , and boost 148.

Features

The Giant Trance 29 2 2020 has 6 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
tubeless-ready
Tubeless ready More info

Specifications

Components
Steam
Giant Contact SL 35
Saddle
Giant Contact (neutral)
Seatpost
Giant Contact Switch dropper post with remote, 30.9
Handlebar
Giant Contact TR35, 780x35mm, 20mm rise
Brake lever
Shimano MT501
Brakes
Shimano BR-MT520 Hydraulic disc brake 4 piston
Brake hose color kit
Black
Brake hose kit
SM-BH90-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT520
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
D03S resin
Pad standard
D02S Metal
Pad mount
Split pin
Piston
4
Piston material
Ceramic
Drivetrain
Chain
Shimano
Crankset
Shimano SLX, 30t
Shifter
Shimano SLX
Bottom bracket
Shimano, press fit
Rear derailleur
Shimano SLX RD-M7000-11-GS
Cassette
Shimano SLX CS-M7100-12 HYPERGLIDE+
Aluminum gear finish
Anodized
Aluminum gear pieces
1
Aluminum spider arm finish
Painted
Aluminum spider arm pieces
1
Combination names
10-45T
10-51T
Compatible chain
HG 12-speed
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M7100-12
Steel gear finish
Plated
Steel gear pieces
11
Type
HYPERGLIDE+
Weights
10-45T: 513g
10-51T: 534g
Frameset
Frame
ALUXX SL-Grade Aluminum, 115mm
Front suspension
Fox 34 Float Rhythm
Rear suspension
Fox Float DPS Performance
Wheels
Rims
Giant XCT 29” tubeless ready sleeve-joint rim, 25mm inner width
Tires
[F] Maxxis Minion DHF 29x2.3, EXO, TR [R] Maxxis DHR II 29x2.3, EXO, TR, tubeless
Spokes
Sapim
Rear hub
[F] Shimano Boost 15x110, sealed bearing [R] Shimano Boost 12x148, sealed bearing
Front hub
[F] Shimano Boost 15x110, sealed bearing [R] Shimano Boost 12x148, sealed bearing

Geometry

Size SM MD LG XL
a
Seat tube length
380,0
431,0
464,0
496,0
b
Seat tube angle
74,5º
74,5º
74,5º
74,5º
c
Top tube length
589,0
609,0
629,0
649,0
d
Head tube length
95,0
110,0
110,0
120,0
e
Head tube angle
66,5º
66,5º
66,5º
66,5º
f
Rake
44,0
44,0
44,0
44,0
g
Trail
116,8
116,8
116,8
116,8
h
Wheelbase
1151,0
1173,0
1193,0
1215,0
i
Chainstay length
432,0
432,0
432,0
432,0
j
Bottom bracket drop
35,0
35,0
35,0
35,0
k
Stack height
596,0
610,0
610,0
619,0
l
Reach
423,0
439,0
459,0
477,0
m
Standover height
705,0
737,0
758,0
782,0
x
Bottom bracket height
339,0
339,0
339,0
339,0
y
Front center
721,0
743,0
763,0
785,0
