BikeWise

Giant Trance Advanced 0 2017

MTB Trail
Groupset
SRAM X01 Eagle
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Front travel
150mm
Rear travel
140mm

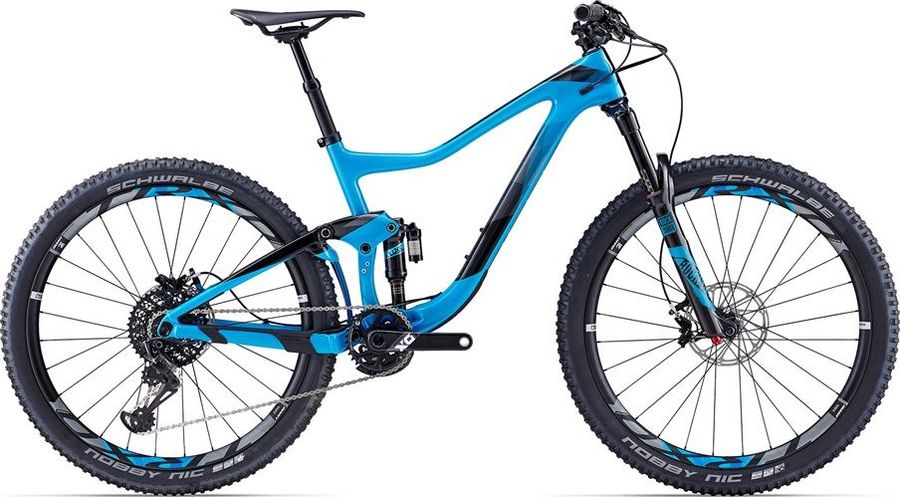

Giant Trance Advanced 0 2017

About the Giant Trance Advanced 0 2017

The Giant Trance Advanced 0 2017 is a Full suspension Trail Mountain Bike with a carbon frame. Equipped with a SRAM X01 Eagle drivetrain of 12 gears (1x12). Its features include boost 110 , boost 148, and hydraulic disc brakes.

Features

The Giant Trance Advanced 0 2017 has 3 features listed below.
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Components
Steam
Giant Contact SL
Saddle
Giant Contact SLR Neutral, Composite rails
Seatpost
Giant Contact SL Switch-R, 30.9mm
Handlebar
Giant Contact SLR Trail, Composite, 31.8mm
Brake lever
SRAM Guide Ultimate
Brakes
SRAM Guide Ultimate Hydraulic 360 g
Application
MTB
Blade material
Carbon
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Arctic Grey Anodized, Black Anodized
Model
DB-GDE-ULT-A1
Name
Guide Ultimate
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount (Ti Bolts), 800mm hose, 160mm CLX Rotor (Ti Bolts)
Weight
360
Drivetrain
Crankset
SRAM X01 Eagle, 34T w/ MRP chain guide
Shifter
SRAM X01 Eagle
Bottom bracket
SRAM GXP, Press fit
Cassette
SRAM X01 Eagle
Chain
SRAM X01 Eagle 239 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Silver
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Chrome Plated
Model
CN-EAGL-X01-A1
Name
X01 Eagle Chain
Outer link finish
Nickel
Pin variant
Hollow Pin
Weight based on
114 links
Weight
239
Rear derailleur
SRAM X01 Eagle 12s
Cable pull ratio
X-actuation
Color
Black, Lunar, Red
Max tooth
52
Model
RD-X0-1-B2
Name
X01 Eagle Rear Derailleur
Speed
12s
Frameset
Frame
Advanced-grade composite w/ ALUXX SL rear triangle, Advanced Forged composite upper rocker, 140mm Maestro suspension
Rear suspension
RockShox Super Deluxe RC3
Body eyelet
Bearing, No Bushing, Off-Center, Standard
Compression tune
L, L1, L3, M
Eye to eye stroke
165x42.5(TR), 165x45(TR), 185x47.5(TR), 185x50(TR), 185x52.5(TR), 185x55(TR), 190x37.5, 190x40, 190x42.5, 190x45, 205x57.5(TR), 205x60(TR), 205x62.5(TR), 205x65(TR), 210x47.5, 210x50, 210x52.5, 210x55, 225x67.5(TR), 225x70(TR), 225x72.5(TR), 225x75(TR), 230x57.5, 230x60, 230x62.5, 230x65, 250x67.5, 250x70, 250x72.5, 250x75
Lockout force
320, 380
Model
RS-SDLX-RC3-B1
Name
Super Deluxe RC3
Rebound tune
L, M
Shaft eyelet
Bearing, No Bushing, Standard, Trunnion
Front suspension
RockShox Pike RCT3 Dual Position Air, Solo Air 1835 g
Color
Diffusion Black, Gloss Black, Gloss White
Damper type
Charger, n/a
fork offset
40mm (26"), 42mm (27.5"), 46mm (29"), 51mm (29")
Maximum rotor size
203mm
Minimum rotor size
160mm
Model
FS-PIKE-RCT3-A2
Name
Pike RCT3
Spring
Dual Position Air, Solo Air
Travel (mm)
110mm, 120mm, 130mm, 140mm, 150mm, 160mm
Upper tube type
35mm tapered wall aluminum
Weight based on
26", Solo Air, 265mm tapered aluminum steerer, 15X100mm Maxle Ultimate
Weight
1835
Wheel size
26", 27.5", 27.5" B, 29", 29" B/27.5"+, 29"+
Wheels
Rims
Giant TRX 0 Composite DBL WheelSystem; 27mm, Tubeless compatible
Tires
[F] Schwalbe Nobby Nic, 27.5x2.35, Snakeskin, TL Easy, Trailstar [R] Schwalbe Nobby Nic, 27.5x2.25, Snakeskin, TL Easy, Pacestar
Spokes
Giant TRX 0 Composite DBL WheelSystem; DT Swiss Aerolite Bladed Stainless
Rear hub
Giant TRX 0 Composite DBL WheelSystem; 28h, [F] Boost 110x15mm, [R] Boost 148x12mm
Front hub
Giant TRX 0 Composite DBL WheelSystem; 28h, [F] Boost 110x15mm, [R] Boost 148x12mm

Geometry

Size XS SM MD LG XL
a
Seat tube length
370,0
380,0
431,0
482,0
507,0
b
Seat tube angle
73,5º
73,5º
73,5º
73,5º
73,5º
c
Top tube length
564,0
584,0
614,0
634,0
659,0
d
Head tube length
100,0
100,0
105,0
130,0
145,0
e
Head tube angle
67,0º
67,0º
67,0º
67,0º
67,0º
f
Rake
42,0
42,0
42,0
42,0
42,0
g
Trail
104,0
104,0
104,0
104,0
104,0
h
Wheelbase
1113,0
1133,0
1164,0
1187,0
1213,0
i
Chainstay length
439,0
439,0
439,0
439,0
439,0
j
Bottom bracket drop
15,0
15,0
15,0
15,0
15,0
k
Stack height
591,0
591,0
595,0
618,0
632,0
l
Reach
390,0
410,0
439,0
452,0
473,0
m
Standover height
701,0
705,0
727,0
772,0
792,0
x
Bottom bracket height
340,0
340,0
340,0
340,0
340,0
y
Front center
674,0
694,0
725,0
748,0
774,0
