Giant Trance Advanced 0 2019

MTB Cross Country
Groupset
SRAM X01 Eagle
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension

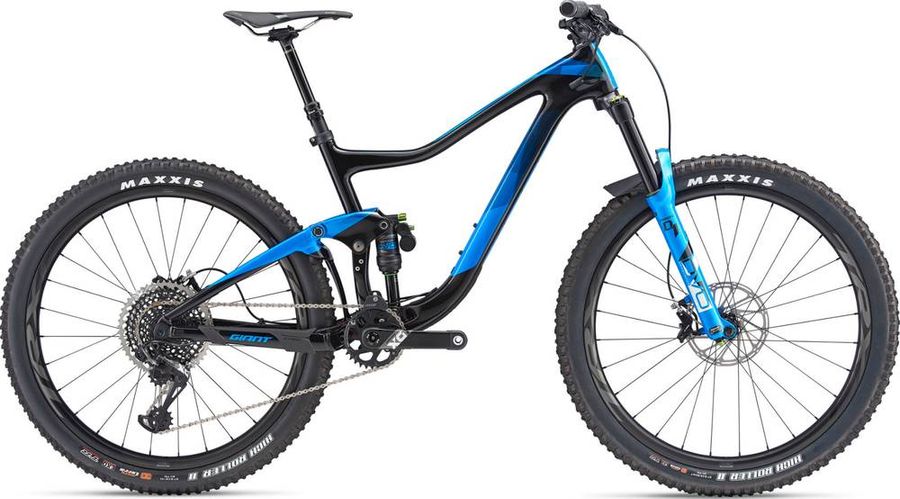

Giant Trance Advanced 0 2019

About the Giant Trance Advanced 0 2019

The Giant Trance Advanced 0 2019 is a Full suspension Cross Country Mountain Bike with a carbon frame. Equipped with a SRAM X01 Eagle drivetrain of 12 gears (1x12).

Specifications

Components
Steam
Truvativ Descendant
Handlebar
Truvativ Descendant Carbon
Brake lever
SRAM Guide R
Brakes
SRAM Guide R Hydraulic 392 g
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Gloss Black
Model
DB-GDE-R-B1
Name
Guide R
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor
Weight
392
Saddle
Giant Contact
Seatpost
RockShox Reverb
Drivetrain
Crankset
SRAM X01 Eagle 11/12s
BB compatibility
BB30/PF30-68/73mm
BB30A
GXP 100mm/PF GXP 121mm
GXP/PF GXP 68/73mm
BB spindle interface
24mm, 30mm
Bolt circle diameter bcd
Direct Mount (DM)
Chain line
49.0mm, 52.0mm, 66.5mm, 76.5mm
Chainring material
Aluminum
Chainring size
30T, 32T, 34T, 36T, 38T
Crank arm length
170mm, 175mm
Model
FC-X0-1-B1
Name
X01 Eagle™ Crankset
Speeds
11/12
Cassette
SRAM XG-1295 X01 Eagle
Bottom bracket
SRAM GXP 108 g
BB frame interface
English/BSA (MTB/Road: 68/73mm), English/BSA (MTB: 83mm), English/BSA 100mm, English/BSA 68/73mm, English/BSA 68mm, English/BSA 73mm, English/BSA 83mm, English/BSA Tandem, Italian (70mm)
Bearing type
Ceramic, Standard
Chain line
51.0mm, n/a
Crank interface
GXP
Cup material
Aluminum
Model
BB-GXP-A1
Name
GXP Bottom Bracket
Spindle diameter
24mm
Weight based on
BB GXP Team English 68/73
Weight
108
Chain guide
MRP Upper Guide
Chain
SRAM X01 Eagle 239 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Silver
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Chrome Plated
Model
CN-EAGL-X01-A1
Name
X01 Eagle Chain
Outer link finish
Nickel
Pin variant
Hollow Pin
Weight based on
114 links
Weight
239
Shifter
SRAM X01 Eagle
Rear derailleur
SRAM X01 Eagle 12s
Cable pull ratio
X-actuation
Color
Black, Lunar, Red
Max tooth
52
Model
RD-X0-1-B2
Name
X01 Eagle Rear Derailleur
Speed
12s
Frameset
Frame
Giant Advanced-Grade Composite Carbon
Front suspension
DVO Diamond D1
Rear suspension
DVO Topaz 2
Wheels
Front hub
Giant TRX 0
Rims
Giant TRX 0
Spokes
Giant TRX 0
Rear hub
Giant TRX 0
Tires
Maxxis High Roller II

Geometry

Size S M L XL
a
Seat tube length
380,0
431,0
482,0
507,0
b
Seat tube angle
73,5º
73,5º
73,5º
73,5º
c
Top tube length
580,0
610,0
630,0
655,0
d
Head tube length
100,0
105,0
130,0
145,0
e
Head tube angle
67,0º
67,0º
67,0º
67,0º
f
Rake
-
-
-
-
g
Trail
-
-
-
-
h
Wheelbase
1129,0
1160,0
1183,0
1209,0
i
Chainstay length
435,0
435,0
435,0
435,0
j
Bottom bracket drop
15,0
15,0
15,0
15,0
k
Stack height
587,0
591,0
614,0
628,0
l
Reach
406,0
435,0
448,0
469,0
m
Standover height
701,0
723,0
768,0
788,0
x
Bottom bracket height
-
-
-
-
y
Front center
-
-
-
-
