Giant Trance Advanced 1 2020

MTB Trail
Groupset
SRAM GX Eagle
Frame material
Carbon
Wheel size
27,5"
Suspension type
Full suspension
Front travel
150mm
Rear travel
140mm

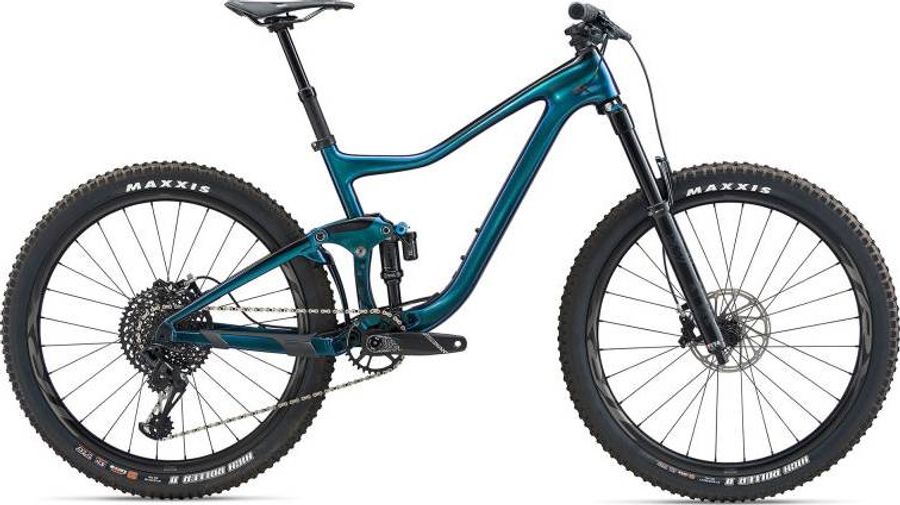

Giant Trance Advanced 1 2020

About the Giant Trance Advanced 1 2020

The Giant Trance Advanced 1 2020 is a Full suspension Trail Mountain Bike with a carbon frame. Equipped with a SRAM GX Eagle drivetrain. Its features include dropper seatpost, boost 110 , and hydraulic disc brakes.

Features

The Giant Trance Advanced 1 2020 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info

Specifications

Components
Steam
Giant Contact SL 35
Saddle
Giant Contact SL (neutral)
Seatpost
Giant Contact Switch dropper post with remote, 30.9
Handlebar
Giant Contact SL TR35, 780x35mm, 20mm rise
Brake lever
SRAM G2 RSC
Brakes
SRAM G2 RSC Hydraulic 248 g
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Diffusion Black
Model
DB-G2-RSC-A1
Name
G2 RSC
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount 800mm Hose, no clamp/mounting hardware
Weight
248
Drivetrain
Crankset
TruVativ Descendent 6k DUB, 32t
Shifter
SRAM GX Eagle
Bottom bracket
SRAM DUB, press fit
Chain
SRAM GX Eagle 244 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Black
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Black Oxide
Model
CN-EAGL-GX-A1
Name
GX Eagle Chain
Outer link finish
Nickel
Pin variant
Solid Pin
Weight based on
114 links
Weight
244
Rear derailleur
SRAM GX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Aluminum
Color
Lunar
Max tooth
52
Model
RD-GX-1-B2
Name
GX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Cassette
SRAM GX Eagle
Frameset
Frame
Advanced-Grade Composite, 140mm
Front suspension
Fox 36 Performance Elite
Rear suspension
Fox Float DPX2 Performance
Wheels
Rims
Giant TRX-1 27.5 Composite WheelSystem
Tires
[F] Maxxis High Roller II 27.5x2.5 WT, 3C, EXO, TR [R] Maxxis High Roller II 27.5x2.4, 3C, EXO, TR, tubeless
Spokes
Giant TRX-1 27.5 WheelSystem
Rear hub
Giant TRX-1 27.5 WheelSystem
Front hub
Giant TRX-1 27.5 WheelSystem

Geometry

Size SM MD LG XL
a
Seat tube length
380,0
431,0
482,0
507,0
b
Seat tube angle
73,5º
73,5º
73,5º
73,5º
c
Top tube length
577,0
607,0
627,0
652,0
d
Head tube length
100,0
105,0
130,0
145,0
e
Head tube angle
67,0º
67,0º
67,0º
67,0º
f
Rake
42,0
42,0
42,0
42,0
g
Trail
104,2
104,2
104,2
104,2
h
Wheelbase
1126,0
1157,0
1180,0
1206,0
i
Chainstay length
432,0
432,0
432,0
432,0
j
Bottom bracket drop
15,0
15,0
15,0
15,0
k
Stack height
584,0
588,0
611,0
625,0
l
Reach
403,0
432,0
445,0
466,0
m
Standover height
698,0
720,0
765,0
785,0
x
Bottom bracket height
340,0
340,0
340,0
340,0
y
Front center
694,0
725,0
748,0
774,0
