Giant Trance Advanced Pro 29 1 2020

MTB Cross Country
Groupset
SRAM GX Eagle
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Rear travel
115mm

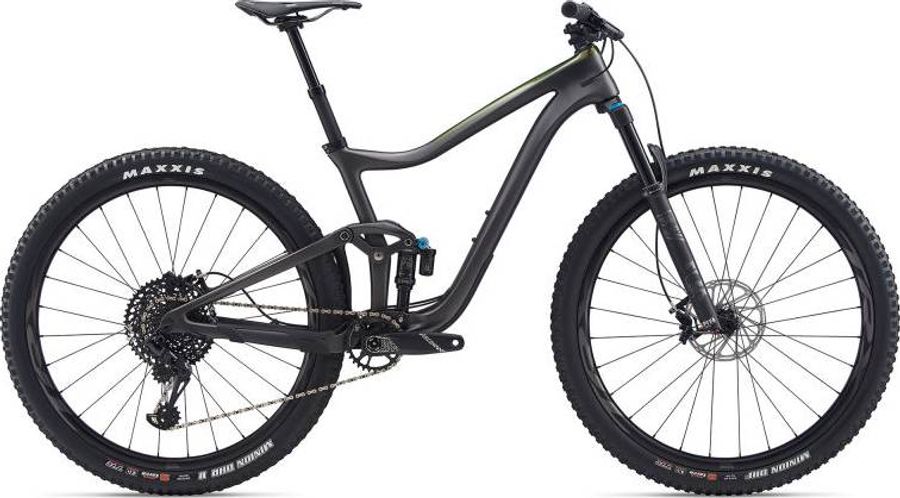

Giant Trance Advanced Pro 29 1 2020

About the Giant Trance Advanced Pro 29 1 2020

The Giant Trance Advanced Pro 29 1 2020 is a Full suspension Cross Country Mountain Bike with a carbon frame. Equipped with a SRAM GX Eagle drivetrain. Its features include dropper seatpost e hydraulic disc brakes.

Features

The Giant Trance Advanced Pro 29 1 2020 has 2 features listed below.
canote-retratil
Dropper seatpost More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Components
Steam
Giant Contact SL 35
Saddle
Giant Contact SL (neutral)
Seatpost
Giant Contact Switch dropper with remote, 30.9
Handlebar
Giant Contact SL TR35, 780x35mm, 20mm rise
Brake lever
SRAM guide T
Brakes
SRAM Guide T Hydraulic
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Gloss Black
Model
DB-GDE-T-A1
Name
Guide T
Orientation
L/F, L/R, R/F, R/R
Pad type disc
Steel-backed organic
Drivetrain
Crankset
TruVativ Descendent 6k DUB, 30t
Shifter
SRAM GX Eagle
Bottom bracket
SRAM DUB, press fit
Chain
SRAM GX Eagle 244 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Black
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Black Oxide
Model
CN-EAGL-GX-A1
Name
GX Eagle Chain
Outer link finish
Nickel
Pin variant
Solid Pin
Weight based on
114 links
Weight
244
Rear derailleur
SRAM GX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Aluminum
Color
Lunar
Max tooth
52
Model
RD-GX-1-B2
Name
GX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Cassette
SRAM GX Eagle
Frameset
Frame
Advanced-Grade Composite front and rear triangles, 115mm
Front suspension
Fox 34 Float
Rear suspension
Fox Float DPX2
Wheels
Rims
Giant TRX-1 29 Composite WheelSystem
Tires
[F] Maxxis Minion DHF 29x2.3, 3C, EXO, TR [R] Maxxis DHR II 29x2.3, 3C, EXO, TR, tubeless
Spokes
Giant TRX-1 29 WheelSystem
Rear hub
Giant TRX-1 29 WheelSystem
Front hub
Giant TRX-1 29 WheelSystem

Geometry

Size SM MD LG XL
a
Seat tube length
380,0
431,0
464,0
496,0
b
Seat tube angle
74,5º
74,5º
74,5º
74,5º
c
Top tube length
589,0
609,0
629,0
649,0
d
Head tube length
95,0
110,0
110,0
120,0
e
Head tube angle
66,5º
66,5º
66,5º
66,5º
f
Rake
44,0
44,0
44,0
44,0
g
Trail
116,8
116,8
116,8
116,8
h
Wheelbase
1151,0
1173,0
1193,0
1215,0
i
Chainstay length
432,0
432,0
432,0
432,0
j
Bottom bracket drop
35,0
35,0
35,0
35,0
k
Stack height
596,0
610,0
610,0
619,0
l
Reach
423,0
439,0
459,0
477,0
m
Standover height
705,0
737,0
758,0
782,0
x
Bottom bracket height
339,0
339,0
339,0
339,0
y
Front center
721,0
743,0
763,0
785,0
