Giant Trance Advanced Pro 29 1 2021

MTB Cross Country
Groupset
Shimano XT
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Front travel
130mm
Rear travel
115mm

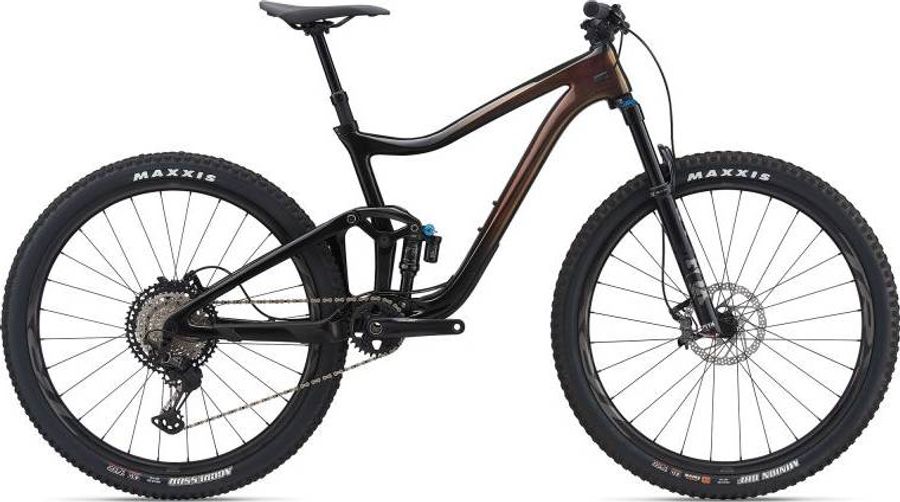

Giant Trance Advanced Pro 29 1 2021

About the Giant Trance Advanced Pro 29 1 2021

The Giant Trance Advanced Pro 29 1 2021 is a Full suspension Cross Country Mountain Bike with a carbon frame. Equipped with a Shimano XT drivetrain. Its features include dropper seatpost, boost 110 , and hydraulic disc brakes.

Features

The Giant Trance Advanced Pro 29 1 2021 has 3 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Acessories
Pedals
platform
Components
Steam
Giant Contact SL 35
Saddle
Giant Romero SL
Seatpost
Giant Contact Switch dropper with remote, 30.9
Handlebar
Giant Contact SLR TR35, 780x35mm, 20mm rise
Brake lever
Shimano Deore XT
Brakes
Shimano Deore XT BR-M8000 403 (BL-M8000) g Hydraulic disc brake 2 piston
Average weight (g)
403 (BL-M8000)
Brake hose color kit
Black
Brake hose kit
SM-BH90-SB
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
Model
BR-M8000
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad option
G04S Metal
Pad option
J04C Metal
Pad standard
G02A Resin
G03A Resin
Pad standard
J02A Resin
J03A Resin
Pad mount
Pad axle
Piston
2
Piston material
Ceramic
Recommended brake lever
BL-M8000
BL-T8000
Recommended disc brake rotor
RT-MT800
SM-RT86
Drivetrain
Crankset
Shimano Deore XT, 30t
Shifter
Shimano Deore XT
Bottom bracket
Shimano, press fit
Rear derailleur
Shimano Deore XT RD-M8100 284 g SGS 12s
Average weight (g)
284
B axle hollow
B axle material
Stainless steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M8100-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Cassette
Shimano Deore XT CS-M8100-12 HYPERGLIDE+
Aluminum gear finish
Anodized
Aluminum gear pieces
2
Aluminum spider arm finish
Painted
Aluminum spider arm pieces
1
Combination names
10-45T
10-51T
Compatible chain
HG 12-speed
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M8100-12
Steel gear finish
Plated
Steel gear pieces
10
Type
HYPERGLIDE+
Weights
10-45T: 461g
10-51T: 470g
Chain
KMC X12
Frameset
Front suspension
Fox 34 Performance Elite, FIT4, 44mm offset, 130mm, 15x110 Kabolt, custom tuned for Giant
Frame
Advanced-Grade Composite front and rear triangles, 115mm Maestro suspension
Rear suspension
Fox Float DPX2 Performance
Wheels
Rims
Giant TRX-1 29 WheelSystem
Tires
[F] Maxxis Minion DHF 29x2.3, 3C, EXO, TR [R] Maxxis Aggressor 29x2.3, 3C, EXO, TR, tubeless
Spokes
Giant TRX-1 29 WheelSystem
Rear hub
Giant TRX-1 29 WheelSystem
Front hub
Giant TRX-1 29 WheelSystem

Geometry

Size SM MD LG XL
a
Seat tube length
380,0
431,0
464,0
496,0
b
Seat tube angle
74,5º
74,5º
74,5º
74,5º
c
Top tube length
589,0
609,0
629,0
649,0
d
Head tube length
95,0
110,0
110,0
120,0
e
Head tube angle
66,5º
66,5º
66,5º
66,5º
f
Rake
44,0
44,0
44,0
44,0
g
Trail
116,8
116,8
116,8
116,8
h
Wheelbase
1151,0
1173,0
1193,0
1215,0
i
Chainstay length
432,0
432,0
432,0
432,0
j
Bottom bracket drop
35,0
35,0
35,0
35,0
k
Stack height
596,0
610,0
610,0
619,0
l
Reach
423,0
439,0
459,0
477,0
m
Standover height
705,0
737,0
758,0
782,0
x
Bottom bracket height
339,0
339,0
339,0
339,0
y
Front center
721,0
743,0
763,0
785,0
