Giant Trance Advanced Pro 29 2 2021

MTB Cross Country
Groupset
Shimano SLX
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Front travel
130mm
Rear travel
115mm

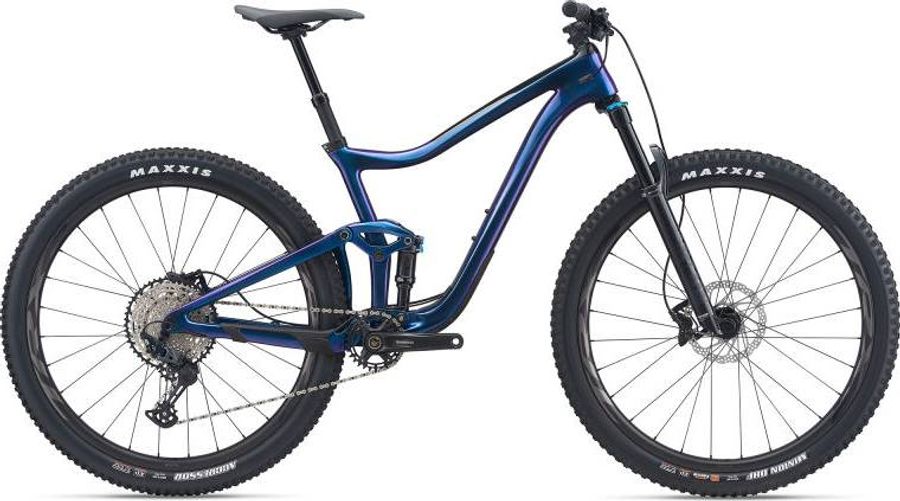

Giant Trance Advanced Pro 29 2 2021

About the Giant Trance Advanced Pro 29 2 2021

The Giant Trance Advanced Pro 29 2 2021 is a Full suspension Cross Country Mountain Bike with a carbon frame. Equipped with a Shimano SLX drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and hydraulic disc brakes.

Features

The Giant Trance Advanced Pro 29 2 2021 has 3 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Components
Steam
Giant Contact SL 35
Saddle
Giant Romero SL
Seatpost
Giant Contact Switch dropper with remote, 30.9
Handlebar
Giant Contact TR35, 780x35mm, 20mm rise
Brake lever
Shimano MT401
Brakes
Shimano BR-MT420 Hydraulic disc brake 4 piston
Brake hose color kit
Black
Brake hose kit
SM-BH90-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT420
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
D03S Resin
Pad standard
D02S Metal
Pad mount
Split pin
Piston
4
Piston material
Resin
Recommended brake lever
BL-MT401
BL-MT402-3A
Recommended disc brake rotor
SM-RT30 *
SM-RT54 *
SM-RT56 *
SM-RT64
Drivetrain
Crankset
Shimano MT510, 30t
Shifter
Shimano SLX
Bottom bracket
Shimano, press fit
Cassette
Shimano SLX CS-M7100-12 HYPERGLIDE+
Aluminum gear finish
Anodized
Aluminum gear pieces
1
Aluminum spider arm finish
Painted
Aluminum spider arm pieces
1
Combination names
10-45T
10-51T
Compatible chain
HG 12-speed
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M7100-12
Steel gear finish
Plated
Steel gear pieces
11
Type
HYPERGLIDE+
Weights
10-45T: 513g
10-51T: 534g
Chain
KMC X12
Rear derailleur
Shimano SLX RD-M7100 313 g SGS 12s
Average weight (g)
313
B axle hollow
B axle material
Stainless steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M7100-SGS
P axle material
Steel
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Frameset
Frame
Advanced-Grade Composite front and rear triangles, 115mm Maestro suspension
Front suspension
Fox 34 Rhythm
Rear suspension
Fox Float DPS Performance
Wheels
Rims
Giant TRX-2 29 Carbon WheelSystem, 30mm inner
Tires
[F] Maxxis Minion DHF 29x2.3, 3C, EXO, TR [R] Maxxis Aggressor 29x2.3, 3C, EXO, TR, tubeless
Spokes
Giant TRX-2 29 WheelSystem, DBL technology
Rear hub
Giant TRX-2 29 WheelSystem, Boost
Front hub
Giant TRX-2 29 WheelSystem, Boost

Geometry

Size SM MD LG
a
Seat tube length
380,0
431,0
464,0
b
Seat tube angle
74,5º
74,5º
74,5º
c
Top tube length
589,0
609,0
629,0
d
Head tube length
95,0
110,0
110,0
e
Head tube angle
66,5º
66,5º
66,5º
f
Rake
44,0
44,0
44,0
g
Trail
116,8
116,8
116,8
h
Wheelbase
1151,0
1173,0
1193,0
i
Chainstay length
432,0
432,0
432,0
j
Bottom bracket drop
35,0
35,0
35,0
k
Stack height
596,0
610,0
610,0
l
Reach
423,0
439,0
459,0
m
Standover height
705,0
737,0
758,0
x
Bottom bracket height
339,0
339,0
339,0
y
Front center
721,0
743,0
763,0
