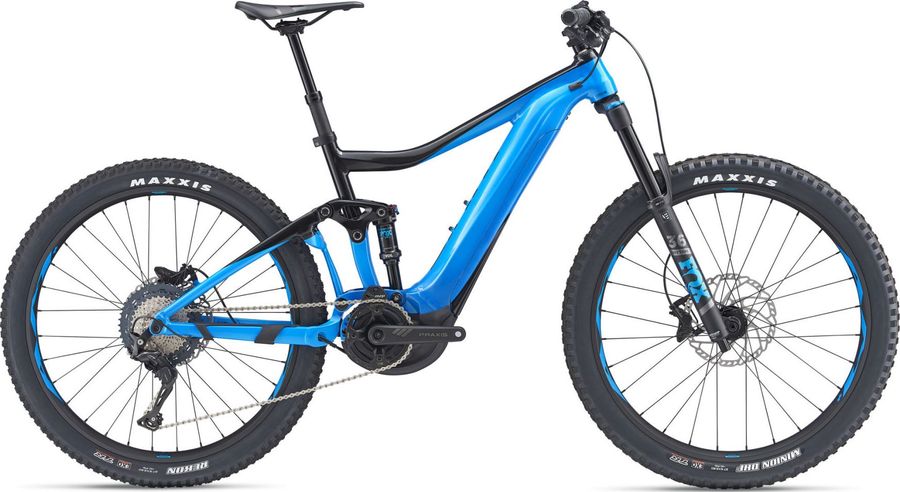

Giant Trance E+ 2 2019
The Giant Trance E+ 2 2019 is an electric-bike. E-bikes are bicycles with a battery-powered assist that comes via pedaling, so when you push the pedals a motor engages and gives you a boost.
E-Bike
Groupset
Shimano XT
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Front travel
150mm
Rear travel
140mm
About the Giant Trance E+ 2 2019
The Giant Trance E+ 2 2019 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a Shimano XT drivetrain of 11 gears (1x11). Its features include dropper seatpost, boost 110 , and boost 148.
Features
Dropper seatpost
More info
Dropper seatpost
Boost 110
More info
Boost 110
Boost 148
More info
Boost 148
Hydraulic disc brakes
More info
Hydraulic disc brakes
Tubeless ready
More info
Tubeless ready
Specifications
|
Remote
|
Giant RideControl ONE, remote button
|
|---|
|
Steam
|
Giant Contact SL 35
|
|---|---|
|
Saddle
|
Giant Contact, Neutral
|
|
Battery
|
Giant EnergyPak 500, 36V 13.8Ah integrated Lithium-Ion
|
|
Seatpost
|
Giant Contact Switch, dropper, 30,9mm, under bar remote lever
|
|
Handlebar
|
Giant Contact 35 Trail, 35x800mm
|
|
Brake lever
|
Shimano BL-MT520, i-spec II
|
|
Brakes
|
Shimano BR-MT520
Hydraulic disc brake
4 piston
|
|
|
|
|
Crankset
|
Praxis Wavetm 36T Cold Forged 4130 premium steel Praxis e-Cadet+ custom forged crankarm set
|
|---|---|
|
Motor
|
Giant SyncDrive Pro, 360% tuneable support, powered by YAMAHA
|
|
Shifter
|
Shimano SLX
|
|
Front derailleur
|
MRP 1X CS custom
|
|
Rear derailleur
|
Shimano Deore XT RD-M8000-GS
271 g
GS
11s
|
|
46T(1x11-speed) |
|
|
Cassette
|
Shimano SLX CS-M7000-11
HG
|
|
1 (11-42T) 2 (11-46T) 11-42T 11-46T 10 (11-42T) 9 (11-46T) 11-42T: 476g 11-46T: 482g |
|
|
Chain
|
KMC e11 Turbo
|
|
Frame
|
ALUXX SL-grade aluminum, Advanced forged composite upper rocker, 140mm Maestro suspension system
|
|---|---|
|
Rear suspension
|
Fox Float DPS Performance EVOL
|
|
Front suspension
|
Fox 36 Float Rhythm
|
|
Rims
|
Giant AM 27.5+, Tubeless ready, 35mm inner width, e-bike optimized
|
|---|---|
|
Tires
|
Maxxis Minion DHF 27.5x2.6" Foldable, Tubeless, EXO, Dual compound [F] Maxxis Rekon 27.5x2.6" Foldable, Tubeless, EXO, Dual Compound [R]
|
|
Spokes
|
Sapim E-Lite [r] Race [f], e-bike optimized
|
|
Rear hub
|
Giant eTracker Boost, Sealed cartridge bearing, 6-bolt, [F] 110x15 [R] 148x12mm Thru-axle, e-bike optimized
|
|
Front hub
|
Giant eTracker Boost, Sealed cartridge bearing, 6-bolt, [F] 110x15 [R] 148x12mm Thru-axle, e-bike optimized
|
Geometry
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
|
a
Seat tube length
|
406,0
|
445,0
|
482,0
|
507,0
|
|
b
Seat tube angle
|
74,0º
|
74,0º
|
74,0º
|
74,0º
|
|
c
Top tube length
|
591,0
|
616,0
|
636,0
|
661,0
|
|
d
Head tube length
|
95,0
|
100,0
|
110,0
|
130,0
|
|
e
Head tube angle
|
66,5º
|
66,5º
|
66,5º
|
66,5º
|
|
f
Rake
|
46,0
|
46,0
|
46,0
|
46,0
|
|
g
Trail
|
109,0
|
109,0
|
109,0
|
109,0
|
|
h
Wheelbase
|
1190,0
|
1216,0
|
1237,0
|
1265,0
|
|
i
Chainstay length
|
476,0
|
476,0
|
476,0
|
476,0
|
|
j
Bottom bracket drop
|
15,0
|
15,0
|
15,0
|
15,0
|
|
k
Stack height
|
585,0
|
590,0
|
599,0
|
617,0
|
|
l
Reach
|
424,0
|
448,0
|
466,0
|
485,0
|
|
m
Standover height
|
745,0
|
746,0
|
778,0
|
798,0
|
|
x
Bottom bracket height
|
340,0
|
340,0
|
340,0
|
340,0
|
|
y
Front center
|
714,0
|
740,0
|
761,0
|
789,0
|
