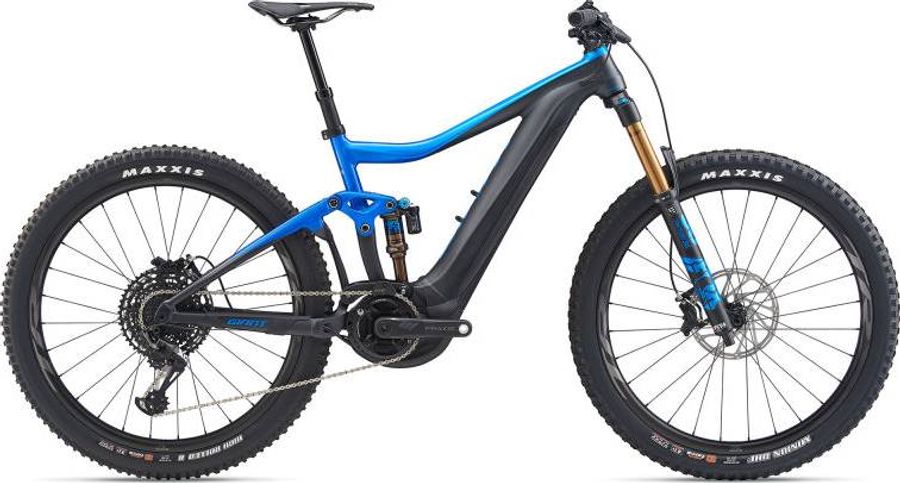

Giant Trance E+ 0 Pro 2020

E-Bike
MTB Trail
Groupset
SRAM X01 Eagle
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Front travel
150mm
Rear travel
140mm
Giant Trance E+ 0 Pro 2020

About the Giant Trance E+ 0 Pro 2020

The Giant Trance E+ 0 Pro 2020 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a SRAM X01 Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148.

Features

The Giant Trance E+ 0 Pro 2020 has 5 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Remote
Giant RideControl ONE, remote button
Components
Steam
Giant Contact SL 35
Saddle
Giant Contact SL, Neutral
Battery
Giant EnergyPak Smart 500, 36V 13.8Ah integrated Lithium-Ion
Seatpost
Giant Contact Switch, dropper, 30,9mm (S:100/M:125/L:150/XL:170)
Handlebar
Giant Contact SL 35 Trail, 35x780mm
Brake lever
SRAM Code R
Brakes
SRAM Code R Hydraulic
Application
MTB
Blade material
Aluminum - Forged
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (203mm DIR to 220mm Rotor - 17mm bracket) 17P, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Dark Grey Paint, Diffusion Black
Model
DB-CODE-R-B1
Name
Code R
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Drivetrain
Crankset
SRAM X-Sync Eagle 36T 104BCD chainringPraxis e-Carbon custom crankarm set (Q-factor=168, XS/S:160, M/L/XL:165
Motor
Giant SyncDrive Pro
Shifter
SRAM XO1 Eagle
Front derailleur
MRP 1X custom "V3" co-moulded TR chain guide
Chain
SRAM X01 Eagle 239 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Silver
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Chrome Plated
Model
CN-EAGL-X01-A1
Name
X01 Eagle Chain
Outer link finish
Nickel
Pin variant
Hollow Pin
Weight based on
114 links
Weight
239
Cassette
SRAM PG-1230 Eagle 12s 615 g
Cog finish cassete
Black
Cog sizes
11-50t:11,13,15,17,19,22,25,28,32,36,42,50
Gearing
11-50t
Model
CS-PG-1230-A1
Name
PG-1230 Eagle Cassette
Speed
12s
Technology cassete
PG
Weight
615
Rear derailleur
SRAM X01 Eagle 12s
Cable pull ratio
X-actuation
Color
Black, Lunar, Red
Max tooth
52
Model
RD-X0-1-B2
Name
X01 Eagle Rear Derailleur
Speed
12s
Frameset
Frame
ALUXX SL-grade aluminum, Advanced forged composite upper rocker, 140mm Maestro suspension system
Rear suspension
Fox Float DPX2 Factory EVOL
Front suspension
Fox 36 Float Factory
Wheels
Rims
Giant e-TRX 27.5+, Tubeless ready, 35mm inner width
Tires
Maxxis Minion DHF 27.5x2.6" foldable, Tubeless, EXO, 3c MaxxTerra[F]Maxxis HighRollerII 27.5x2.6" Foldable, Tubeless, EXO, 120tpi 3C Compound [R]
Spokes
Giant e-TRX
Rear hub
Giant e-TRX [F] 110x15 [R] 148x12mm Thru-axle
Front hub
Giant e-TRX [F] 110x15 [R] 148x12mm Thru-axle

Geometry

Size SM MD LG
a
Seat tube length
406,0
445,0
482,0
b
Seat tube angle
74,0º
74,0º
74,0º
c
Top tube length
591,0
616,0
636,0
d
Head tube length
95,0
100,0
110,0
e
Head tube angle
66,5º
66,5º
66,5º
f
Rake
46,0
46,0
46,0
g
Trail
109,0
109,0
109,0
h
Wheelbase
1190,0
1216,0
1237,0
i
Chainstay length
476,0
476,0
476,0
j
Bottom bracket drop
15,0
15,0
15,0
k
Stack height
585,0
590,0
599,0
l
Reach
424,0
448,0
466,0
m
Standover height
745,0
746,0
778,0
x
Bottom bracket height
340,0
340,0
340,0
y
Front center
714,0
740,0
761,0
