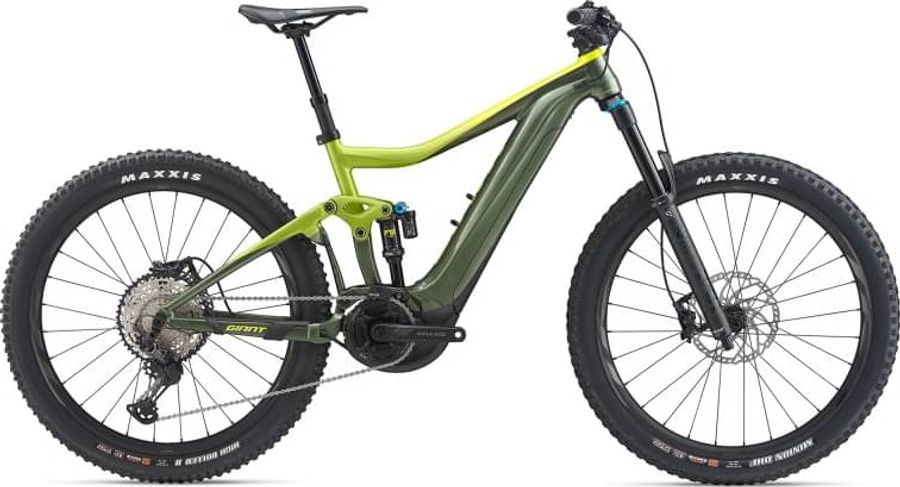

Giant Trance E+ 1 Pro Electric Bike 2020
The Giant Trance E+ 1 Pro Electric Bike 2020 is an electric-bike. E-bikes are bicycles with a battery-powered assist that comes via pedaling, so when you push the pedals a motor engages and gives you a boost.
E-Bike
Groupset
Shimano XT
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Weight
24,9 kg
Front travel
150mm
Rear travel
140mm
About the Giant Trance E+ 1 Pro Electric Bike 2020
The Giant Trance E+ 1 Pro Electric Bike 2020 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a Shimano XT drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148. The bike weighs approximately 24,9 kg.
Features
Dropper seatpost
More info
Dropper seatpost
Boost 110
More info
Boost 110
Boost 148
More info
Boost 148
Hydraulic disc brakes
More info
Hydraulic disc brakes
Tubeless ready
More info
Tubeless ready
Specifications
|
Remote
|
Giant RideControl ONE, remote button
|
|---|
|
Steam
|
Giant Contact SL 35
|
|---|---|
|
Saddle
|
Giant Contact, Neutral
|
|
Battery
|
Giant EnergyPak Smart 500, 36V 13.8Ah integrated Lithium-Ion
|
|
Seatpost
|
Giant Contact Switch, dropper, 30,9mm (S:100/M:125/L:150/XL:170)
|
|
Handlebar
|
Giant Contact 35 Trail, 35x780mm
|
|
Brake lever
|
Shimano Deore XT, BL-M8120
|
|
Brakes
|
Shimano Deore XT BR-M8120
410 (BL-M8100) g
Hydraulic disc brake
4 piston
|
|
BL-T8100 |
|
|
Crankset
|
Praxis Wavetm 36T Cold Forged 4130 premium steel Praxis e-Cadet+ custom forged crankarm set (Q-factor=168, XS/S:160, M/L:165, XL:170)
|
|---|---|
|
Motor
|
Giant SyncDrive Pro, automatic support, 5-mode, 50-360% tunable support, 80Nm, powered by YAMAHA
|
|
Shifter
|
Shimano Deore XT, 12-speed
|
|
Front derailleur
|
MRP 1X custom "V3" co-moulded TR chain guide
|
|
Rear derailleur
|
Shimano Deore XT RD-M8100
284 g
SGS
12s
|
|
|
|
|
Cassette
|
Shimano SLX CS-M7100-12
HYPERGLIDE+
|
|
10-51T 10-51T: 534g |
|
|
Chain
|
KMC e12 Turbo
|
|
Frame
|
ALUXX SL-grade aluminum, Advanced forged composite upper rocker, 140mm Maestro suspension system
|
|---|---|
|
Rear suspension
|
Fox Float DPX2 Performance EVOL
|
|
Front suspension
|
Fox 36 Float Performance
|
|
Rims
|
Giant e-TR1 27.5, Tubeless ready, 30mm inner width
|
|---|---|
|
Tires
|
Maxxis Minion DHF 27.5x2.6" foldable, Tubeless, EXO, 3c MaxxTerra[F]Maxxis HighRollerII 27.5x2.6" Foldable, Tubeless, EXO, 120tpi 3C Compound [R]
|
|
Spokes
|
Giant e-TR1
|
|
Rear hub
|
Giant e-TR1 [F] 110x15 [R] 148x12mm Thru-axle
|
|
Front hub
|
Giant e-TR1 [F] 110x15 [R] 148x12mm Thru-axle
|
Geometry
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
|
a
Seat tube length
|
380,0
|
406,0
|
445,0
|
482,0
|
507,0
|
|
b
Seat tube angle
|
74,0º
|
74,0º
|
74,0º
|
74,0º
|
74,0º
|
|
c
Top tube length
|
567,0
|
582,0
|
607,0
|
627,0
|
652,0
|
|
d
Head tube length
|
95,0
|
95,0
|
100,0
|
110,0
|
130,0
|
|
e
Head tube angle
|
66,5º
|
66,5º
|
66,5º
|
66,5º
|
66,5º
|
|
f
Rake
|
46,0
|
46,0
|
46,0
|
46,0
|
46,0
|
|
g
Trail
|
109,0
|
109,0
|
109,0
|
109,0
|
109,0
|
|
h
Wheelbase
|
1166,0
|
1181,0
|
1207,0
|
1228,0
|
1256,0
|
|
i
Chainstay length
|
467,0
|
467,0
|
467,0
|
467,0
|
467,0
|
|
j
Bottom bracket drop
|
15,0
|
15,0
|
15,0
|
15,0
|
15,0
|
|
k
Stack height
|
576,0
|
576,0
|
581,0
|
590,0
|
608,0
|
|
l
Reach
|
400,0
|
415,0
|
439,0
|
457,0
|
476,0
|
|
m
Standover height
|
725,0
|
736,0
|
737,0
|
769,0
|
789,0
|
|
x
Bottom bracket height
|
340,0
|
340,0
|
340,0
|
340,0
|
340,0
|
|
y
Front center
|
699,0
|
714,0
|
740,0
|
761,0
|
789,0
|
