Giant Trance E+ 2 Pro 2020

E-Bike
MTB Trail
Groupset
Shimano XT
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Front travel
150mm
Rear travel
140mm

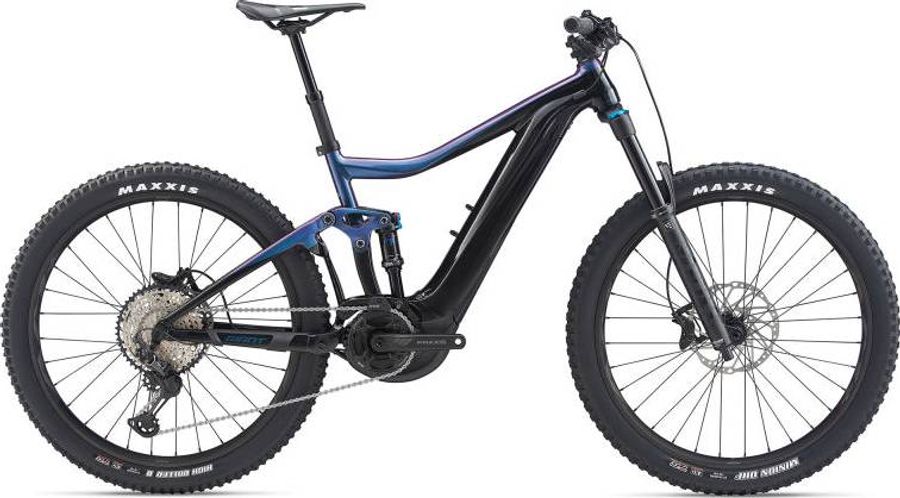

Giant Trance E+ 2 Pro 2020

About the Giant Trance E+ 2 Pro 2020

The Giant Trance E+ 2 Pro 2020 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a Shimano XT drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148.

Features

The Giant Trance E+ 2 Pro 2020 has 5 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tubeless-ready
Tubeless ready More info

Specifications

Acessories
Remote
Giant RideControl ONE, remote button
Components
Steam
Giant Contact SL 35
Saddle
Giant Contact, Neutral
Battery
Giant EnergyPak Smart 500, 36V 13.8Ah integrated Lithium-Ion
Seatpost
Giant Contact Switch, dropper, 30,9mm (S:100/M:125/L:150/XL:170)
Handlebar
Giant Contact 35 Trail, 35x780mm
Brake lever
Shimano BL-MT501
Brakes
Shimano BR-MT520 Hydraulic disc brake 4 piston
Brake hose color kit
Black
Brake hose kit
SM-BH90-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT520
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
D03S resin
Pad standard
D02S Metal
Pad mount
Split pin
Piston
4
Piston material
Ceramic
Drivetrain
Crankset
Praxis Wavetm 36T Cold Forged 4130 premium steel Praxis e-Cadet+ custom forged crankarm set (Q-factor=168, XS/S:160, M/L:165, XL:170)
Motor
Giant SyncDrive Pro
Shifter
Shimano SLX 12-speed
Front derailleur
MRP 1X CS custom
Rear derailleur
Shimano Deore XT RD-M8100 284 g SGS 12s
Average weight (g)
284
B axle hollow
B axle material
Stainless steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M8100-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Cassette
Shimano SLX CS-M7100-12 HYPERGLIDE+
Aluminum gear finish
Anodized
Aluminum gear pieces
1
Aluminum spider arm finish
Painted
Aluminum spider arm pieces
1
Combination names
10-45T
10-51T
Compatible chain
HG 12-speed
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M7100-12
Steel gear finish
Plated
Steel gear pieces
11
Type
HYPERGLIDE+
Weights
10-45T: 513g
10-51T: 534g
Chain
KMC e12 Turbo
Frameset
Frame
ALUXX SL-grade aluminum, Advanced forged composite upper rocker, 140mm Maestro suspension system
Rear suspension
Fox Float DPS Performance EVOL
Front suspension
Fox 36 Float Rhythm
Wheels
Rims
Giant AM 27.5+, Tubeless ready, 35mm inner width
Tires
Maxxis Minion DHF 27.5x2.6" Foldable, Tubeless, EXO, Dual compound [F] Maxxis HighRollerII 27.5x2.6" Foldable, Tubeless, EXO, Dual Compound [R]
Spokes
Sapim E-Lite [r] Race [f]
Rear hub
Shimano Boost, Center-Lock, [F] 110x15 [R] 148x12mm Micro-Spling Drive Body Thru-axle
Front hub
Shimano Boost, Center-Lock, [F] 110x15 [R] 148x12mm Micro-Spling Drive Body Thru-axle

Geometry

Size XS SM MD LG XL
a
Seat tube length
380,0
406,0
445,0
482,0
507,0
b
Seat tube angle
74,0º
74,0º
74,0º
74,0º
74,0º
c
Top tube length
567,0
582,0
607,0
627,0
652,0
d
Head tube length
95,0
95,0
100,0
110,0
130,0
e
Head tube angle
66,5º
66,5º
66,5º
66,5º
66,5º
f
Rake
46,0
46,0
46,0
46,0
46,0
g
Trail
109,0
109,0
109,0
109,0
109,0
h
Wheelbase
1166,0
1181,0
1207,0
1228,0
1256,0
i
Chainstay length
467,0
467,0
467,0
467,0
467,0
j
Bottom bracket drop
15,0
15,0
15,0
15,0
15,0
k
Stack height
576,0
576,0
581,0
590,0
608,0
l
Reach
400,0
415,0
439,0
457,0
476,0
m
Standover height
725,0
736,0
737,0
769,0
789,0
x
Bottom bracket height
340,0
340,0
340,0
340,0
340,0
y
Front center
699,0
714,0
740,0
761,0
789,0
