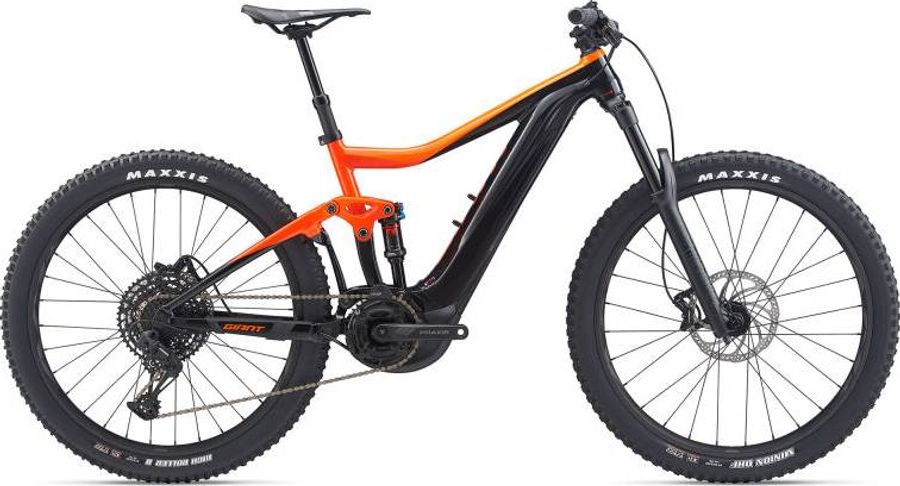

Giant Trance E+ 3 Pro 2020
The Giant Trance E+ 3 Pro 2020 is an electric-bike. E-bikes are bicycles with a battery-powered assist that comes via pedaling, so when you push the pedals a motor engages and gives you a boost.
E-Bike
Groupset
SRAM SX Eagle
Frame material
Alloy
Wheel size
27,5"
Suspension type
Full suspension
Front travel
150mm
Rear travel
140mm
About the Giant Trance E+ 3 Pro 2020
The Giant Trance E+ 3 Pro 2020 is a Full suspension Trail Mountain Bike with a alloy frame. Equipped with a SRAM SX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148.
Features
Dropper seatpost
More info
Dropper seatpost
Boost 110
More info
Boost 110
Boost 148
More info
Boost 148
Hydraulic disc brakes
More info
Hydraulic disc brakes
Tubeless ready
More info
Tubeless ready
Specifications
|
Remote
|
Giant RideControl ONE, remote button
|
|---|
|
Steam
|
Giant Contact SL 35
|
|---|---|
|
Saddle
|
Giant Contact, Neutral
|
|
Battery
|
Giant EnergyPak Smart 500, 36V 13.8Ah integrated Lithium-Ion
|
|
Seatpost
|
Giant Contact Switch, dropper, 30,9mm (S:100/M:125/L:150/XL:170)
|
|
Handlebar
|
Giant Contact 35 Trail, 35x780mm
|
|
Brake lever
|
Tektro HD-M745 Orion
|
|
Brakes
|
Tektro HD-M745
|
|
Crankset
|
SRAM X-Sync Eagle 38T 104BCD chainring Praxis e-Cadet+ custom forged crankarm set (Q-factor=168, S:160, M/L:165, XL:170)
|
|---|---|
|
Motor
|
Giant SyncDrive Pro, 80Nm, 360% tuneable support, powered by YAMAHA. Pedal assist up to 20 mph.
|
|
Shifter
|
SRAM SX Eagle 12-speed
|
|
Front derailleur
|
MRP 1X CS custom
|
|
Chain
|
SRAM SX Eagle
|
|
Cassette
|
SRAM PG-1210 Eagle
12s
|
|
|
|
|
Rear derailleur
|
SRAM SX Eagle
12s
|
|
|
|
|
Frame
|
ALUXX SL-grade aluminum, Advanced forged composite upper rocker, 140mm Maestro suspension system
|
|---|---|
|
Rear suspension
|
Fox Float DPS Performance EVOL
|
|
Front suspension
|
RockShox 35 Gold RL
DebonAir
|
|
|
|
|
Rims
|
Giant AM 27.5+, Tubeless ready, 35mm inner width
|
|---|---|
|
Tires
|
Maxxis Minion DHF 27.5x2.6" Foldable, Tubeless, EXO, Dual compound [F] Maxxis HighRollerII 27.5x2.6" Foldable, Tubeless, EXO, Dual Compound [R]
|
|
Spokes
|
Sapim E-Lite [r] Race [f]
|
|
Rear hub
|
Giant eTracker Boost, Sealed cartridge bearing, 6-bolt, [F] 110x15 [R] 148x12mm Thru-axle
|
|
Front hub
|
Giant eTracker Boost, Sealed cartridge bearing, 6-bolt, [F] 110x15 [R] 148x12mm Thru-axle
|
Geometry
| Size | MD | SM | LG | XL |
|---|---|---|---|---|
|
a
Seat tube length
|
445,0
|
406,0
|
482,0
|
507,0
|
|
b
Seat tube angle
|
74,0º
|
74,0º
|
74,0º
|
74,0º
|
|
c
Top tube length
|
616,0
|
591,0
|
636,0
|
661,0
|
|
d
Head tube length
|
100,0
|
95,0
|
110,0
|
130,0
|
|
e
Head tube angle
|
66,5º
|
66,5º
|
66,5º
|
66,5º
|
|
f
Rake
|
46,0
|
46,0
|
46,0
|
46,0
|
|
g
Trail
|
109,0
|
109,0
|
109,0
|
109,0
|
|
h
Wheelbase
|
1216,0
|
1190,0
|
1237,0
|
1265,0
|
|
i
Chainstay length
|
476,0
|
476,0
|
476,0
|
476,0
|
|
j
Bottom bracket drop
|
15,0
|
15,0
|
15,0
|
15,0
|
|
k
Stack height
|
590,0
|
585,0
|
599,0
|
617,0
|
|
l
Reach
|
448,0
|
424,0
|
466,0
|
485,0
|
|
m
Standover height
|
746,0
|
745,0
|
778,0
|
798,0
|
|
x
Bottom bracket height
|
340,0
|
340,0
|
340,0
|
340,0
|
|
y
Front center
|
740,0
|
714,0
|
761,0
|
789,0
|
