Giant Trance X Advanced Pro 29 0 2021

MTB Trail
Groupset
Shimano XTR
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Front travel
150mm
Rear travel
135mm

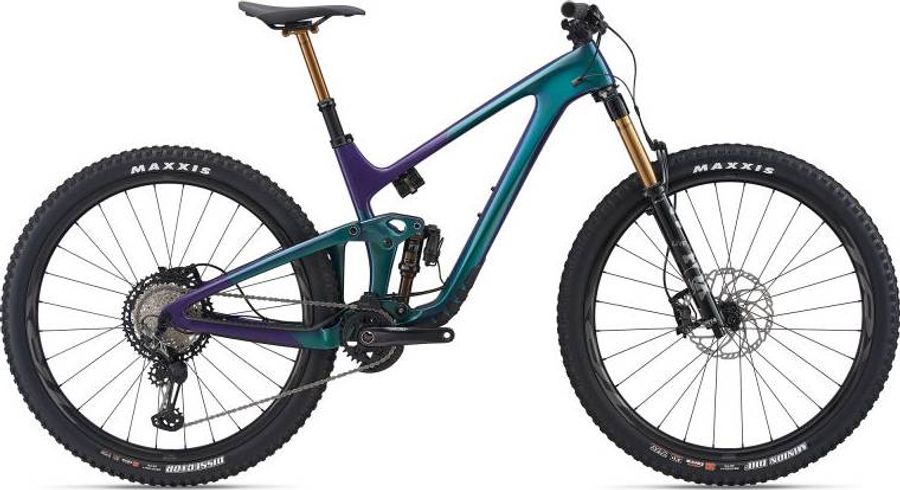

Giant Trance X Advanced Pro 29 0 2021

About the Giant Trance X Advanced Pro 29 0 2021

The Giant Trance X Advanced Pro 29 0 2021 is a Full suspension Trail Mountain Bike with a carbon frame. Equipped with a Shimano XTR drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and hydraulic disc brakes.

Features

The Giant Trance X Advanced Pro 29 0 2021 has 3 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Components
Steam
Giant Contact SL 35
Saddle
Giant Romero SL, SST rails
Seatpost
Fox Transfer Factory dropper with Shimano remote, 30.9
Handlebar
Giant Contact SLR Trail, composite, 35
Brake lever
Shimano Deore XT
Brakes
Shimano Deore XT BR-M8000 403 (BL-M8000) g Hydraulic disc brake 2 piston
Average weight (g)
403 (BL-M8000)
Brake hose color kit
Black
Brake hose kit
SM-BH90-SB
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
Model
BR-M8000
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad option
G04S Metal
Pad option
J04C Metal
Pad standard
G02A Resin
G03A Resin
Pad standard
J02A Resin
J03A Resin
Pad mount
Pad axle
Piston
2
Piston material
Ceramic
Recommended brake lever
BL-M8000
BL-T8000
Recommended disc brake rotor
RT-MT800
SM-RT86
Drivetrain
Crankset
Shimano Deore XT, 30t with MRP AMG V2 Carbon guide
Shifter
Shimano Deore XT
Bottom bracket
Shimano, press fit
Cassette
Shimano Deore XT CS-M8100-12 HYPERGLIDE+
Aluminum gear finish
Anodized
Aluminum gear pieces
2
Aluminum spider arm finish
Painted
Aluminum spider arm pieces
1
Combination names
10-45T
10-51T
Compatible chain
HG 12-speed
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M8100-12
Steel gear finish
Plated
Steel gear pieces
10
Type
HYPERGLIDE+
Weights
10-45T: 461g
10-51T: 470g
Chain
Shimano CN-M6100 252 g
Average weight (g)
252
Chromizing treatment roller link pin
Model
CN-M6100
Pin link plate
Gray
Roller link plate
Brown
Type
HG 12-speed
Rear derailleur
Shimano XTR RD-M9100-SGS 240 g SGS 12s
Average weight (g)
240
B axle finish
Anodized
B axle hollow
B axle material
Aluminum
Bracket body finish
Anodized
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M9100-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Frameset
Frame
Advanced-Grade Composite front and rear triangles, 135mm Maestro suspension, flip chip
Rear suspension
Fox Float DPX2 Factory
Front suspension
Fox 36 Factory
Wheels
Rims
Giant TRX-1 29 Carbon WheelSystem, 30mm inner
Tires
[F] Maxxis Minion DHF, tubeless, 29x2.5, WT, 3C, MaxxTerra, EXO, TR [R] Maxxis Dissector, tubeless, 29x2.4, WT, 3C, MaxxTerra, EXO, TR
Spokes
Giant TRX-1 29 WheelSystem, DBL technology
Rear hub
Giant TRX-1 29 WheelSystem, Boost
Front hub
Giant TRX-1 29 WheelSystem, Boost

Geometry

Size SM MD LG XL
a
Seat tube length
430,0
430,0
465,0
496,0
b
Seat tube angle
77,2º
77,2º
77,2º
77,2º
c
Top tube length
-
-
-
-
d
Head tube length
95,0
100,0
110,0
120,0
e
Head tube angle
65,5º
65,5º
65,5º
65,5º
f
Rake
44,0
44,0
44,0
44,0
g
Trail
125,14
125,14
125,14
125,14
h
Wheelbase
-
-
-
-
i
Chainstay length
-
-
-
-
j
Bottom bracket drop
-27,0
-27,0
-27,0
-27,0
k
Stack height
-
-
-
-
l
Reach
-
-
-
-
m
Standover height
-
-
-
-
x
Bottom bracket height
401,6
401,6
401,6
401,6
y
Front center
-
-
-
-
