Giant Trance X Advanced Pro 29 1 2021

MTB Trail
Groupset
SRAM GX Eagle
Frame material
Carbon
Wheel size
29"
Suspension type
Full suspension
Front travel
150mm
Rear travel
135mm

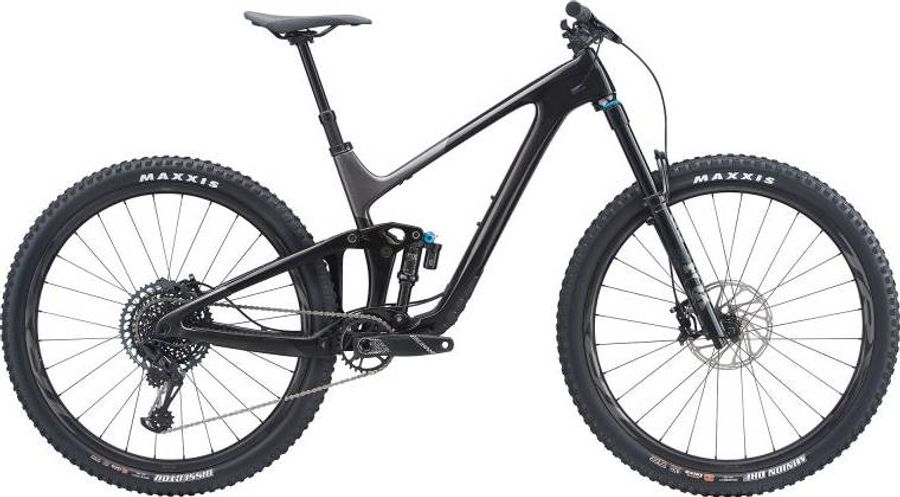

Giant Trance X Advanced Pro 29 1 2021

About the Giant Trance X Advanced Pro 29 1 2021

The Giant Trance X Advanced Pro 29 1 2021 is a Full suspension Trail Mountain Bike with a carbon frame. Equipped with a SRAM GX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and hydraulic disc brakes.

Features

The Giant Trance X Advanced Pro 29 1 2021 has 3 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Components
Steam
Giant Contact SL 35
Saddle
Giant Romero SL, SST rails
Seatpost
Giant Contact Switch dropper with remote, 30.9
Handlebar
Giant Contact SLR Trail, composite, 35
Brake lever
SRAM G2 R
Brakes
SRAM G2 R Hydraulic 393 g
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Gloss Black
Model
DB-G2-R-A1
Name
G2 R
Orientation
Front, Rear
Pad type disc
Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor
Weight
393
Drivetrain
Crankset
Truvativ Descendent 6k Eagle, DUB Boost, 30t
Shifter
SRAM GX Eagle
Bottom bracket
SRAM DUB, press fit
Cassette
SRAM XG-1275 Eagle 12s
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1275-B1
Name
XG-1275 Eagle Cassette
Speed
12s
Technology cassete
XG
Chain
SRAM NX Eagle 252 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Grey
Color outer link
Grey
Compat speed
12s-Eagle
Inner link finish
Polished
Model
CN-EAGL-NX-A1
Name
NX Eagle Chain
Outer link finish
Polished
Pin variant
Solid Pin
Weight based on
114 links
Weight
252
Rear derailleur
SRAM GX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Aluminum
Color
Lunar
Max tooth
52
Model
RD-GX-1-B2
Name
GX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Frameset
Frame
Advanced-Grade Composite front and rear triangles, 135mm Maestro suspension, flip chip
Front suspension
Fox 36 Performance Elite
Rear suspension
Fox Float DPX2 Performance
Wheels
Rims
Giant TRX-2 29 WheelSystem, 30mm inner
Tires
[F] Maxxis Minion DHF, tubeless, 29x2.5, WT, 3C, MaxxTerra, EXO, TR [R] Maxxis Dissector, tubeless, 29x2.4, WT, 3C, MaxxTerra, EXO, TR
Spokes
Giant TRX-2 29 WheelSystem, DBL technology
Rear hub
Giant TRX-2 29 WheelSystem, Boost
Front hub
Giant TRX-2 29 WheelSystem, Boost

Geometry

Size SM MD LG XL
a
Seat tube length
430,0
430,0
465,0
496,0
b
Seat tube angle
77,2º
77,2º
77,2º
77,2º
c
Top tube length
-
-
-
-
d
Head tube length
95,0
100,0
110,0
120,0
e
Head tube angle
65,5º
65,5º
65,5º
65,5º
f
Rake
44,0
44,0
44,0
44,0
g
Trail
125,14
125,14
125,14
125,14
h
Wheelbase
-
-
-
-
i
Chainstay length
-
-
-
-
j
Bottom bracket drop
-27,0
-27,0
-27,0
-27,0
k
Stack height
-
-
-
-
l
Reach
-
-
-
-
m
Standover height
-
-
-
-
x
Bottom bracket height
401,6
401,6
401,6
401,6
y
Front center
-
-
-
-
