Giant XTC Advanced 27.5+ 1 2017

MTB Trail
Groupset
Shimano XT
Frame material
Carbon
Wheel size
27,5"
Suspension type
Hardtail
Front travel
120mm

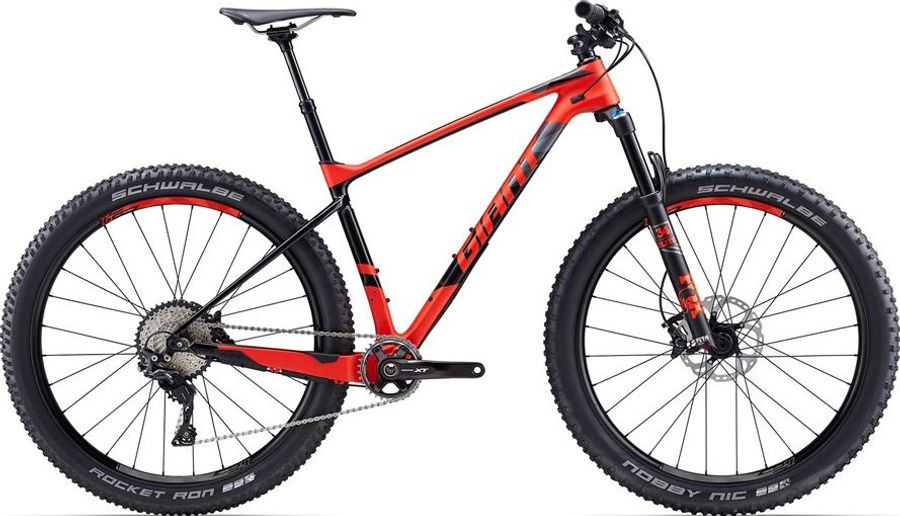

Giant XTC Advanced 27.5+ 1 2017

About the Giant XTC Advanced 27.5+ 1 2017

The Giant XTC Advanced 27.5+ 1 2017 is a Hardtail Trail Mountain Bike with a carbon frame. Equipped with a Shimano XT drivetrain of 11 gears (1x11). Its features include dropper seatpost, boost 110 , and boost 148.

Features

The Giant XTC Advanced 27.5+ 1 2017 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Components
Steam
Giant Contact
Saddle
Giant Contact SL Neutral, SST tubular rails
Seatpost
Tranz X YSP-11 Dropper Post w/ under bar remote, 27.2mm
Handlebar
Giant Contact Trail, 31.8mm
Brake lever
Shimano XT
Brakes
Shimano Deore XT BR-M8000 403 (BL-M8000) g Hydraulic disc brake 2 piston
Average weight (g)
403 (BL-M8000)
Brake hose color kit
Black
Brake hose kit
SM-BH90-SB
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
Model
BR-M8000
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad option
G04S Metal
Pad option
J04C Metal
Pad standard
G02A Resin
G03A Resin
Pad standard
J02A Resin
J03A Resin
Pad mount
Pad axle
Piston
2
Piston material
Ceramic
Recommended brake lever
BL-M8000
BL-T8000
Recommended disc brake rotor
RT-MT800
SM-RT86
Drivetrain
Crankset
Shimano Deore XT, 32T
Shifter
Shimano SLX
Bottom bracket
Shimano, Press fit
Rear derailleur
Shimano Deore XT RD-M8000-GS 271 g GS 11s
Average weight (g)
271
B axle hollow
B axle material
Stainless steel
Bracket finish
Painted
Bracket material
Aluminum
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG-X 11-speed
Lower pulley max
42T(2x11-speed),
46T(1x11-speed)
Lower pulley min
40T
Model
RD-M8000-GS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
11T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
GS
Speeds
11
Upper pulley max
11T
Upper pulley min
11T
Total capacity
39T
Cassette
Shimano SLX CS-M7000-11 HG
Aluminum gear pieces
1 (11-40T)
1 (11-42T)
2 (11-46T)
Aluminum spider arm finish
Anodized
Aluminum spider arm pieces
1
Combination names
11-40T
11-42T
11-46T
Compatible chain
HG 11-speed, LG
Lock ring finish
Plated
Lock ring material
Steel
Model
CS-M7000-11
Steel gear finish
Shot-Ni
Steel gear pieces
10 (11-40T)
10 (11-42T)
9 (11-46T)
Type
HG
Weights
11-40T: 450g
11-42T: 476g
11-46T: 482g
Chain
KMC X11
Frameset
Frame
Advanced-grade composite w/ horizontal dropouts
Front suspension
Fox 34 Float Performance Elite
Wheels
Rims
Giant Plus, 40mm wide
Tires
[F] Schwalbe Nobby Nic, 27.5x3.0, Snakeskin, TL Easy, Trailstar [R] Schwalbe Rocket Ron, 27.5x2.8, Snakeskin, TL Easy, Pacestar
Spokes
Sapim Race, 14/15g
Rear hub
Giant Performance Tracker Disc, 28h, [F] Boost 110x15mm, [R] Boost 148x12mm
Front hub
Giant Performance Tracker Disc, 28h, [F] Boost 110x15mm, [R] Boost 148x12mm

Geometry

Size SM MD LG XL
a
Seat tube length
-
-
-
-
b
Seat tube angle
72,0º
71,5º
71,0º
71,0º
c
Top tube length
587,0
607,0
627,0
648,0
d
Head tube length
94,0
94,0
104,0
114,0
e
Head tube angle
69,0º
69,0º
69,0º
69,0º
f
Rake
-
-
-
-
g
Trail
-
-
-
-
h
Wheelbase
1092,0
1107,0
1120,0
1143,0
i
Chainstay length
432,0
432,0
432,0
432,0
j
Bottom bracket drop
-
-
-
-
k
Stack height
618,0
618,0
628,0
637,0
l
Reach
388,0
403,0
414,0
431,0
m
Standover height
739,0
765,0
795,0
826,0
x
Bottom bracket height
-
-
-
-
y
Front center
-
-
-
-
