Giant XTC Advanced 27.5+ 2 2017

MTB Trail
Groupset
SRAM NX
Frame material
Carbon
Wheel size
27,5"
Suspension type
Hardtail
Front travel
120mm

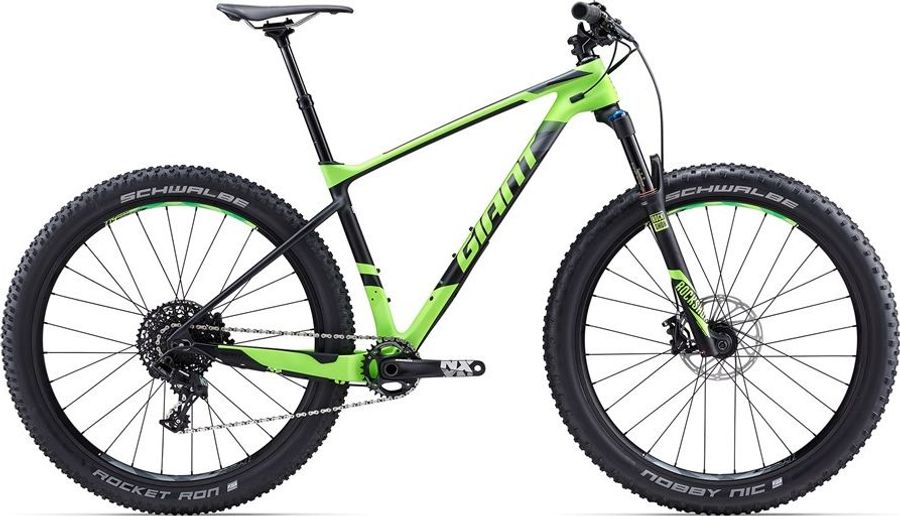

Giant XTC Advanced 27.5+ 2 2017

About the Giant XTC Advanced 27.5+ 2 2017

The Giant XTC Advanced 27.5+ 2 2017 is a Hardtail Trail Mountain Bike with a carbon frame. Equipped with a SRAM NX drivetrain of 11 gears (1x11). Its features include dropper seatpost, boost 110 , and boost 148.

Features

The Giant XTC Advanced 27.5+ 2 2017 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Components
Steam
Giant Connect
Saddle
Giant Contact SL Neutral, SST tubular rails
Seatpost
Tranz X YSP-11 Dropper Post w/ under bar remote, 27.2mm
Handlebar
Giant Connect Trail, 31.8mm
Brake lever
SRAM Level TL
Brakes
SRAM Level TL Hydraulic 370 g
Application
MTB
Blade material
Aluminum - Forged
Bracket disk brake
Direct mount DIR, Flat Mount 20mm offset, Flat Mount no offset, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Diffusion Black Anodized, Gloss Black
Model
DB-LVL-TL-A1
Name
Level TL
Orientation
Front, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor (TARGET)
Weight
370
Drivetrain
Crankset
SRAM NX, 30T
Shifter
SRAM NX
Bottom bracket
SRAM GXP, Press fit
Rear derailleur
SRAM NX 11s 322 g
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
42
Model
RD-NX-1-A1
Name
NX 1x11 X-HORIZON™ Rear Derailleur
Pulley bearings material
Steel
Speed
11s
Weight
322
Cassette
SRAM PG-1130 11s
Cog finish cassete
Black, Silver
Cog sizes
11-26t:11,12,13,14,15,16,17,19,21,23,26
11-28t:11,12,13,14,15,16,17,19,22,25,28
11-32t:11,12,13,14,15,17,19,22,25,28,32
11-36t:11,12,13,15,17,19,22,25,28,32,36
11-42t: 11,13,15,17,19,22,25,28,32,36,42
Gearing
11-26t
11-28t
11-32t
11-36t
11-42t
Model
CS-PG-1130-A1
Name
PG-1130 Cassette
Speed
11s
Technology cassete
PG
Chain
KMC X11
Frameset
Frame
Advanced-grade composite w/ horizontal dropouts
Front suspension
RockShox Reba RL Solo Air 1620 g
Color
Diffusion Black, Gloss Black, Gloss White
Damper type
n/a, RL
fork offset
40mm (26"), 42mm (27.5"), 46mm (29"), 51mm (29")
Maximum rotor size
200mm
Minimum rotor size
160mm
Model
FS-REBA-RL-A6
Name
Reba RL
Spring
Solo Air
Travel (mm)
100mm, 120mm, 80mm
Upper tube type
32mm straight wall aluminum
Weight based on
15x100 Maxle Stealth, Tapered steerer, 120mm travel
Weight
1620
Wheel size
26", 27.5", 27.5" B, 29", 29" B/27.5"+
Wheels
Rims
Giant Plus, 35mm wide
Tires
[F] Schwalbe Nobby Nic, 27.5x3.0, Folding, Performance [R] Schwalbe Rocket Ron, 27.5x2.8, Folding, Performance
Spokes
Stainless Steel, 14g
Rear hub
Giant Performance Tracker Disc, 28h, [F] Boost 110x15mm, [R] Boost 148x12mm
Front hub
Giant Performance Tracker Disc, 28h, [F] Boost 110x15mm, [R] Boost 148x12mm

Geometry

Size SM MD LG XL
a
Seat tube length
-
-
-
-
b
Seat tube angle
72,0º
71,5º
71,0º
71,0º
c
Top tube length
587,0
607,0
627,0
648,0
d
Head tube length
94,0
94,0
104,0
114,0
e
Head tube angle
69,0º
69,0º
69,0º
69,0º
f
Rake
-
-
-
-
g
Trail
-
-
-
-
h
Wheelbase
1092,0
1107,0
1120,0
1143,0
i
Chainstay length
432,0
432,0
432,0
432,0
j
Bottom bracket drop
-
-
-
-
k
Stack height
618,0
618,0
628,0
637,0
l
Reach
388,0
403,0
414,0
431,0
m
Standover height
739,0
765,0
795,0
826,0
x
Bottom bracket height
-
-
-
-
y
Front center
-
-
-
-
