Giant XTC Advanced 29 0 2017

MTB Cross Country
Groupset
SRAM XX1 Eagle
Frame material
Carbon
Wheel size
29"
Suspension type
Hardtail
Front travel
100mm

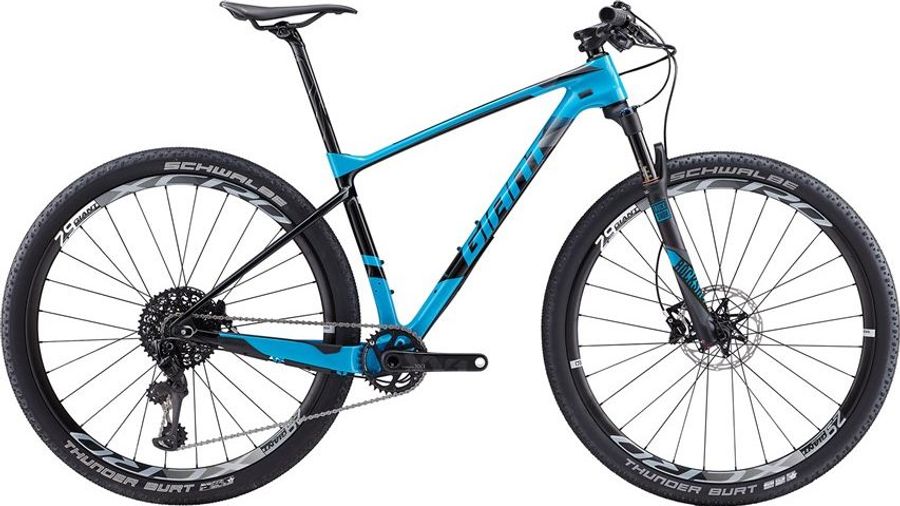

Giant XTC Advanced 29 0 2017

About the Giant XTC Advanced 29 0 2017

The Giant XTC Advanced 29 0 2017 is a Hardtail Cross Country Mountain Bike with a carbon frame. Equipped with a SRAM XX1 Eagle drivetrain of 12 gears (1x12). Its features include boost 110 , boost 148, and hydraulic disc brakes.

Features

The Giant XTC Advanced 29 0 2017 has 4 features listed below.
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
trava-remota-guidao
Remote lockout More info

Specifications

Components
Steam
Giant Contact SLR, Composite
Saddle
Giant Contact SLR Forward, Composite rails
Seatpost
Giant Contact SLR, Composite, 27.2mm
Handlebar
Giant Contact SLR XC Flat, Composite, 31.8mm
Brake lever
SRAM Level Ultimate
Brakes
SRAM Level Ultimate Hydraulic 317 g
Application
MTB
Blade material
Carbon
Bracket disk brake
Direct mount DIR, Flat Mount 20mm offset, Flat Mount no offset, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Black Anodized, Gold
Model
DB-LVL-ULT-A1
Name
Level Ultimate
Orientation
Front, Rear
Pad type disc
Aluminum-backed organic, Steel-backed metal sintered
Weight based on
Direct Mount (Ti Bolts), 800mm hose, 160mm CLX Rotor (Ti Bolts)
Weight
317
Drivetrain
Crankset
SRAM XX1 Eagle Composite, 34T
Shifter
SRAM XX1 Eagle
Bottom bracket
SRAM GXP, Press fit
Cassette
SRAM XX1 XG1299 Eagle
Rear derailleur
SRAM XX1 Eagle 12s
Cable pull ratio
X-actuation
Color
Black, Lunar
Max tooth
52
Model
RD-XX-1-B2
Name
XX1 Eagle Rear Derailleur
Speed
12s
Chain
SRAM XX1 Eagle 239 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Black, Gold
Color outer link
Black, Gold
Compat speed
12s-Eagle
Inner link finish
Chrome plated +PVD
Model
CN-EAGL-XX1-A1
Name
XX1 Eagle Chain
Outer link finish
Nickel+PVD
Pin variant
Hollow Pin
Weight based on
114 links
Weight
239
Frameset
Frame
Advanced-grade composite w/ horizontal dropouts
Front suspension
RockShox SID World Cup DebonAir
Color
Diffusion Black, Gloss Black
Damper type
Charger 2
fork offset
42mm (27.5"), 51mm (29")
Max tire width (mm)
62, 81
Maximum rotor size
203mm, 220mm
Minimum rotor size
160mm
Model
FS-SID-WC-B3
Name
SID World Cup
Spring
DebonAir
Travel (mm)
100mm
Upper tube type
32mm straight wall aluminum
Wheel size
27.5", 29"
Wheels
Rims
Giant XCR 0 Composite DBL WheelSystem; 21mm wide, Tubeless compatible
Tires
Schwalbe Thunder Burt, 29x2.1, EVO, TL Easy
Spokes
Giant XCR 0 Composite DBL WheelSystem; DT Swiss Aerolite Bladed Stainless
Rear hub
Giant XCR 0 Composite DBL WheelSystem; 28h, [F] Boost 110x15mm, [R] Boost 148x12mm
Front hub
Giant XCR 0 Composite DBL WheelSystem; 28h, [F] Boost 110x15mm, [R] Boost 148x12mm

Geometry

Size SM MD LG XL
a
Seat tube length
390,0
440,0
490,0
535,0
b
Seat tube angle
73,0º
72,5º
72,0º
72,0º
c
Top tube length
592,0
612,0
632,0
652,0
d
Head tube length
95,0
95,0
105,0
115,0
e
Head tube angle
70,0º
70,0º
70,0º
70,0º
f
Rake
51,0
51,0
51,0
51,0
g
Trail
82,0
82,0
82,0
82,0
h
Wheelbase
1081,0
1095,0
1109,0
1129,0
i
Chainstay length
432,0
432,0
432,0
432,0
j
Bottom bracket drop
60,0
60,0
60,0
60,0
k
Stack height
619,0
619,0
628,0
638,0
l
Reach
405,0
419,0
430,0
-
m
Standover height
746,0
772,0
804,0
834,0
x
Bottom bracket height
314,0
314,0
314,0
314,0
y
Front center
656,0
670,0
684,0
704,0
