Giant XTC Advanced 29 1 2019

MTB Cross Country
Groupset
SRAM GX Eagle
Frame material
Carbon
Wheel size
29"
Suspension type
Hardtail

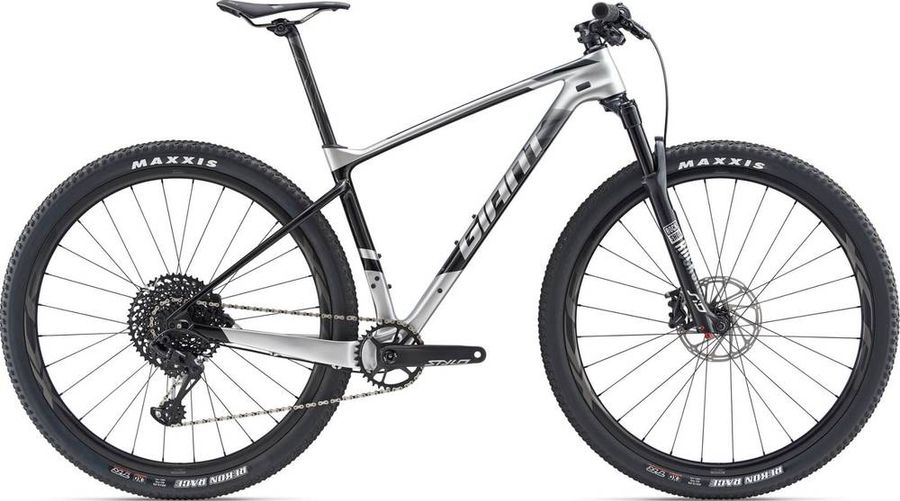

Giant XTC Advanced 29 1 2019

About the Giant XTC Advanced 29 1 2019

The Giant XTC Advanced 29 1 2019 is a Hardtail Cross Country Mountain Bike with a carbon frame. Equipped with a SRAM GX Eagle drivetrain of 12 gears (1x12).

Specifications

Components
Brakes
SRAM Level T Hydraulic 410 g
Application
MTB
Blade material
Aluminum - Stamped
Bracket disk brake
Direct mount DIR, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Gloss Black
Model
DB-LVL-T-A1
Name
Level T
Orientation
Front, L/F, L/R, R/F, R/R, Rear
Pad type disc
Steel-backed metal sintered, Steel-backed organic
Weight based on
Direct Mount, 800mm hose, 160mm CL Rotor (TARGET)
Weight
410
Seatpost
Giant Contact
Steam
Giant Contact
Brake lever
SRAM Level TL
Saddle
Giant Contact
Handlebar
Giant Contact
Drivetrain
Bottom bracket
SRAM GXP 108 g
BB frame interface
English/BSA (MTB/Road: 68/73mm), English/BSA (MTB: 83mm), English/BSA 100mm, English/BSA 68/73mm, English/BSA 68mm, English/BSA 73mm, English/BSA 83mm, English/BSA Tandem, Italian (70mm)
Bearing type
Ceramic, Standard
Chain line
51.0mm, n/a
Crank interface
GXP
Cup material
Aluminum
Model
BB-GXP-A1
Name
GXP Bottom Bracket
Spindle diameter
24mm
Weight based on
BB GXP Team English 68/73
Weight
108
Cassette
SRAM XG-1275 Eagle 12s
Cog finish cassete
Black
Cog sizes
10-52t:10,12,14,16,18,21,24,28,32,36,42,52
Gearing
10-52t
Model
CS-XG-1275-B1
Name
XG-1275 Eagle Cassette
Speed
12s
Technology cassete
XG
Crankset
Truvativ Stylo 6K 11/12s
BB compatibility
BB30/PF30-68/73mm
GXP 100mm/PF GXP 121mm
GXP/PF GXP 68/73mm
PowerSpline BB
BB spindle interface
24mm, 30mm, Power Spline
Bolt circle diameter bcd
Direct Mount (DM)
Chain line
49.0mm, 52.0mm, 66.5mm, 76.5mm
Chainring material
Aluminum
Chainring size
30T, 32T, 34T
Crank arm length
165mm, 170mm, 175mm
Model
FC-STYL-6K-A1
Name
STYLO 6K Crankset
Speeds
11/12
Shifter
SRAM GX Eagle 11s
Cable length
2200mm
Cable pull ratio
X-actuation
Color
Black
Compatible derailleur hub
RD: 11s
Matchmaker compatible
Yes
Model
SL-GX-1PA-A1
Name
GX-e 11-speed Trigger Shifter
Shifter type
Trigger
Speeds
11
Rear derailleur
SRAM GX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Aluminum
Color
Lunar
Max tooth
52
Model
RD-GX-1-B2
Name
GX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Frameset
Frame
Giant Advanced-Grade Composite Carbon
Front suspension
RockShox SID
Wheels
Tires
Maxxis Rekon Race
Rims
Giant XCR 1
Front hub
Giant Tracker Performance
Spokes
Sapim Leader
Rear hub
Giant Tracker Performance

Geometry

Size S M L XL
a
Seat tube length
390,0
440,0
490,0
535,0
b
Seat tube angle
73,0º
72,5º
72,0º
72,0º
c
Top tube length
585,0
605,0
625,0
645,0
d
Head tube length
95,0
95,0
105,0
115,0
e
Head tube angle
70,0º
70,0º
70,0º
70,0º
f
Rake
-
-
-
-
g
Trail
-
-
-
-
h
Wheelbase
1074,0
1088,0
1102,0
1122,0
i
Chainstay length
425,0
425,0
425,0
425,0
j
Bottom bracket drop
60,0
60,0
60,0
60,0
k
Stack height
612,0
612,0
621,0
631,0
l
Reach
398,0
412,0
423,0
440,0
m
Standover height
739,0
765,0
797,0
827,0
x
Bottom bracket height
-
-
-
-
y
Front center
-
-
-
-
