Giant XTC Advanced 29 1 2021

MTB Cross Country
Groupset
Shimano XT
Frame material
Carbon
Wheel size
29"
Suspension type
Hardtail
Front travel
100mm

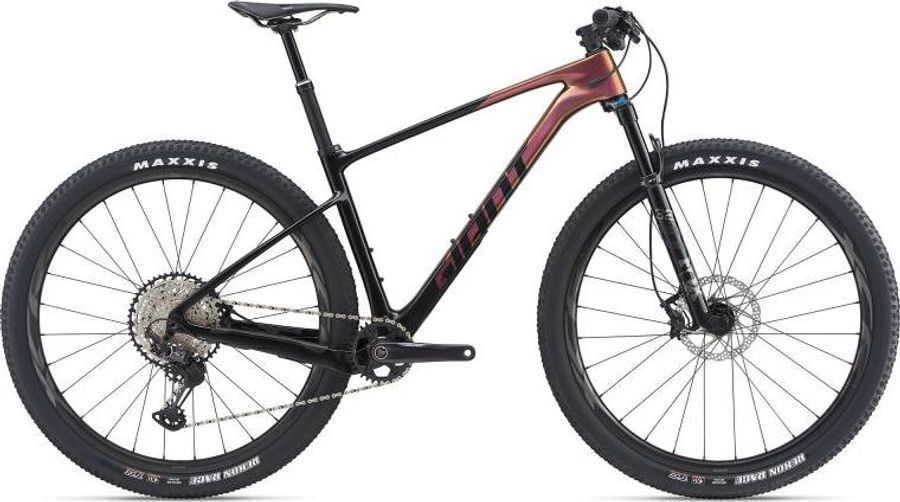

Giant XTC Advanced 29 1 2021

About the Giant XTC Advanced 29 1 2021

The Giant XTC Advanced 29 1 2021 is a Hardtail Cross Country Mountain Bike with a carbon frame. Equipped with a Shimano XT drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and hydraulic disc brakes.

Features

The Giant XTC Advanced 29 1 2021 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
freio-hidraulico
Hydraulic disc brakes More info
trava-remota-guidao
Remote lockout More info

Specifications

Components
Steam
Giant Contact
Saddle
Giant Contact SL (neutral), composite base, SST rails, UniClip accessory mount
Seatpost
Giant Contact Switch, 100mm, 30.9, vertical remote
Handlebar
Giant Contact SL XC Flat, 780x31.8
Brake lever
Shimano Deore XT
Brakes
Shimano Deore XT BR-M8000 403 (BL-M8000) g Hydraulic disc brake 2 piston
Average weight (g)
403 (BL-M8000)
Brake hose color kit
Black
Brake hose kit
SM-BH90-SB
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
Model
BR-M8000
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad option
G04S Metal
Pad option
J04C Metal
Pad standard
G02A Resin
G03A Resin
Pad standard
J02A Resin
J03A Resin
Pad mount
Pad axle
Piston
2
Piston material
Ceramic
Recommended brake lever
BL-M8000
BL-T8000
Recommended disc brake rotor
RT-MT800
SM-RT86
Drivetrain
Crankset
Shimano Deore XT, 32t
Shifter
Shimano Deore XT
Bottom bracket
Shimano, press fit
Rear derailleur
Shimano Deore RD-M6100 SGS 12s
B axle hollow
B axle material
Stainless steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M6100-SGS
P axle material
Steel
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Cassette
Shimano SLX CS-M7100-12 HYPERGLIDE+
Aluminum gear finish
Anodized
Aluminum gear pieces
1
Aluminum spider arm finish
Painted
Aluminum spider arm pieces
1
Combination names
10-45T
10-51T
Compatible chain
HG 12-speed
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M7100-12
Steel gear finish
Plated
Steel gear pieces
11
Type
HYPERGLIDE+
Weights
10-45T: 513g
10-51T: 534g
Chain
KMC X12
Frameset
Frame
Advanced-Grade Composite
Front suspension
Fox 32 Float Performance SC
Wheels
Rims
Giant XCR-2 29 Carbon WheelSystem, 25mm inner
Tires
Maxxis Recon Race 29x2.25, foldable, TLR, EXO, tubeless
Spokes
Giant XCR-2 29 WheelSystem, DBL technology
Rear hub
Giant XCR-2 29 WheelSystem, Boost
Front hub
Giant XCR-2 29 WheelSystem, Boost

Geometry

Size SM MD LG XL
a
Seat tube length
380,0
431,0
475,0
525,0
b
Seat tube angle
73,5º
73,5º
73,5º
73,5º
c
Top tube length
592,0
611,0
632,0
662,0
d
Head tube length
95,0
95,0
105,0
115,0
e
Head tube angle
69,5º
69,5º
70,0º
70,0º
f
Rake
43,0
43,0
43,0
43,0
g
Trail
94,9
94,9
94,9
94,9
h
Wheelbase
1084,0
1103,0
1125,0
1156,0
i
Chainstay length
422,0
422,0
422,0
422,0
j
Bottom bracket drop
58,0
58,0
58,0
58,0
k
Stack height
601,0
601,0
610,0
629,0
l
Reach
413,0
432,0
450,0
474,0
m
Standover height
734,0
761,0
788,0
826,0
x
Bottom bracket height
316,0
316,0
316,0
316,0
y
Front center
668,0
687,0
709,0
740,0
