Giant XTC Advanced 29 2 2017
Groupset
Shimano SLX
Frame material
Carbon
Wheel size
29"
Suspension type
Hardtail
Front travel
100mm

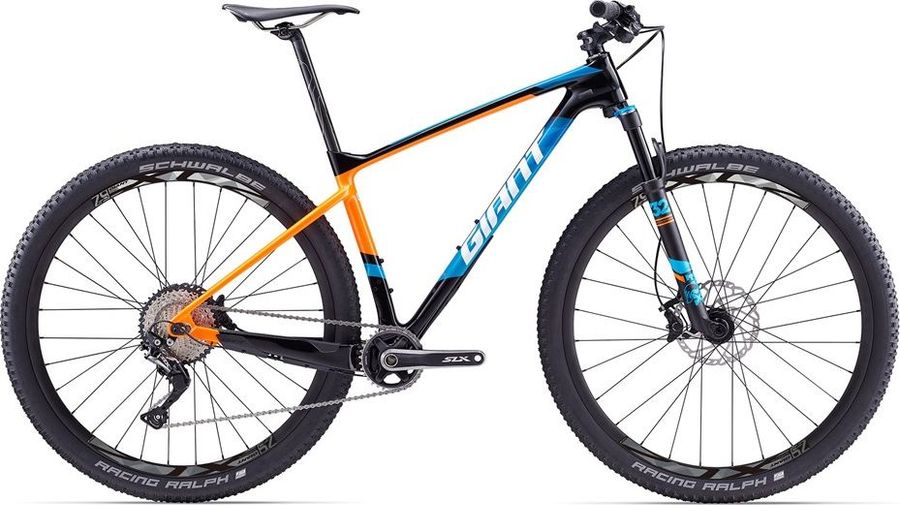

About the Giant XTC Advanced 29 2 2017
The Giant XTC Advanced 29 2 2017 is a Hardtail Cross Country Mountain Bike with a carbon frame. Equipped with a Shimano SLX drivetrain of 11 gears (1x11). Its features include boost 110 , boost 148, and hydraulic disc brakes.
Features
Boost 110
More info
Boost 110
Boost 148
More info
Boost 148
Hydraulic disc brakes
More info
Hydraulic disc brakes
Specifications
|
Steam
|
Giant Contact
|
|---|---|
|
Saddle
|
Giant Contact SL Forward, SST tubular rails
|
|
Seatpost
|
Giant Contact, Composite, 27.2mm
|
|
Handlebar
|
Giant Contact Trail, 31.8mm
|
|
Brake lever
|
Shimano SLX
|
|
Brakes
|
Shimano SLX BR-M7000
|
|
Crankset
|
Shimano SLX, 30T
|
|---|---|
|
Shifter
|
Shimano SLX
|
|
Bottom bracket
|
Shimano, Press fit
|
|
Cassette
|
Shimano SLX CS-M7000-11
HG
|
|
1 (11-42T) 2 (11-46T) 11-42T 11-46T 10 (11-42T) 9 (11-46T) 11-42T: 476g 11-46T: 482g |
|
|
Rear derailleur
|
Shimano SLX RD-M7000-11-SGS
|
|
Chain
|
Shimano CN-HG601
257 g
|
|
|
|
|
Frame
|
Advanced-grade composite w/ horizontal dropouts
|
|---|---|
|
Front suspension
|
Fox 32 Float Performance SC
|
|
Rims
|
Giant XC-2
|
|---|---|
|
Tires
|
Schwalbe Racing Ralph, 29x2.25, Performance, Folding
|
|
Spokes
|
Sapim Race, 14/15g
|
|
Rear hub
|
Giant Performance Tracker Disc, [F] Boost 110x15mm 28h, [R] Boost 148x12mm 32h
|
|
Front hub
|
Giant Performance Tracker Disc, [F] Boost 110x15mm 28h, [R] Boost 148x12mm 32h
|
Geometry
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
|
a
Seat tube length
|
390,0
|
440,0
|
490,0
|
535,0
|
|
b
Seat tube angle
|
73,0º
|
72,5º
|
72,0º
|
72,0º
|
|
c
Top tube length
|
592,0
|
612,0
|
632,0
|
652,0
|
|
d
Head tube length
|
95,0
|
95,0
|
105,0
|
115,0
|
|
e
Head tube angle
|
70,0º
|
70,0º
|
70,0º
|
70,0º
|
|
f
Rake
|
51,0
|
51,0
|
51,0
|
51,0
|
|
g
Trail
|
82,0
|
82,0
|
82,0
|
82,0
|
|
h
Wheelbase
|
1081,0
|
1095,0
|
1109,0
|
1129,0
|
|
i
Chainstay length
|
432,0
|
432,0
|
432,0
|
432,0
|
|
j
Bottom bracket drop
|
60,0
|
60,0
|
60,0
|
60,0
|
|
k
Stack height
|
619,0
|
619,0
|
628,0
|
638,0
|
|
l
Reach
|
405,0
|
419,0
|
430,0
|
-
|
|
m
Standover height
|
746,0
|
772,0
|
804,0
|
834,0
|
|
x
Bottom bracket height
|
314,0
|
314,0
|
314,0
|
314,0
|
|
y
Front center
|
656,0
|
670,0
|
684,0
|
704,0
|
