Giant XTC Advanced 29 2 2021

MTB Cross Country
Groupset
Shimano SLX
Frame material
Carbon
Wheel size
29"
Suspension type
Hardtail
Front travel
100mm

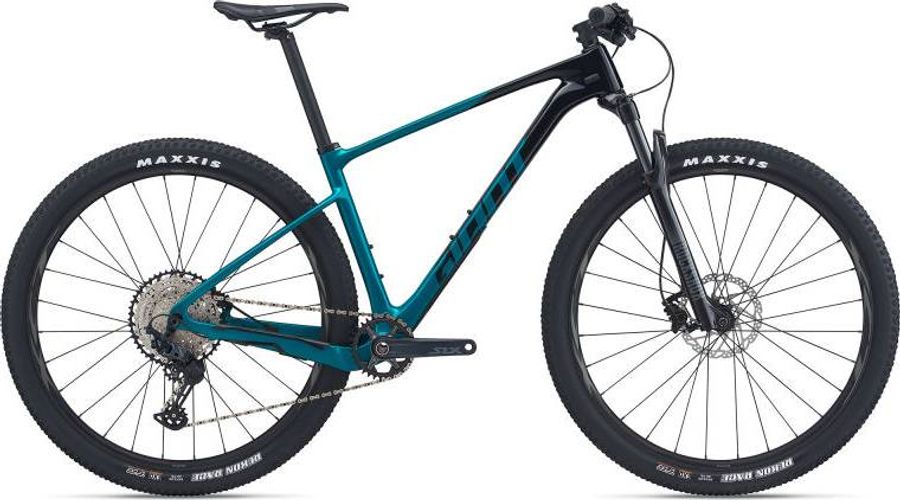

Giant XTC Advanced 29 2 2021

About the Giant XTC Advanced 29 2 2021

The Giant XTC Advanced 29 2 2021 is a Hardtail Cross Country Mountain Bike with a carbon frame. Equipped with a Shimano SLX drivetrain of 12 gears (1x12). Its features include boost 110 , boost 148, and hydraulic disc brakes.

Features

The Giant XTC Advanced 29 2 2021 has 4 features listed below.
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
trava-remota-guidao
Remote lockout More info

Specifications

Components
Steam
Giant Contact
Saddle
Giant Contact (neutral), UniClip accessory mount
Seatpost
Giant Connect, 30.9
Handlebar
Giant Contact SL XC Flat, 780x31.8
Brake lever
Shimano MT501
Brakes
Shimano BR-MT500 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT500
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin (stainless steel)
Piston
2
Piston material
Resin
Recommended disc brake rotor
SM-RT54*
SM-RT56*
Drivetrain
Crankset
Shimano SLX, 32t
Shifter
Shimano SLX
Bottom bracket
Shimano, press fit
Cassette
Shimano SLX CS-M7100-12 HYPERGLIDE+
Aluminum gear finish
Anodized
Aluminum gear pieces
1
Aluminum spider arm finish
Painted
Aluminum spider arm pieces
1
Combination names
10-45T
10-51T
Compatible chain
HG 12-speed
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M7100-12
Steel gear finish
Plated
Steel gear pieces
11
Type
HYPERGLIDE+
Weights
10-45T: 513g
10-51T: 534g
Chain
KMC X12
Rear derailleur
Shimano SLX RD-M7100 313 g SGS 12s
Average weight (g)
313
B axle hollow
B axle material
Stainless steel
Bracket body finish
Painted
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M7100-SGS
P axle material
Steel
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Frameset
Frame
Advanced-Grade Composite
Front suspension
RockShox Recon Silver RL Solo Air
Color
Diffusion Black, Gloss Black
Damper type
Motion Control
fork offset
37mm (27.5"), 42mm (27.5"), 42mm (29"), 46mm (27.5"), 46mm (29"), 51mm (29")
Max tire width (mm)
62, 81
Maximum rotor size
220mm
Minimum rotor size
160mm
Model
FS-RCNS-RL-D1
Name
Recon Silver RL
Spring
Solo Air
Travel (mm)
100mm, 120mm, 130mm, 140mm, 150mm
Upper tube type
32mm straight wall steel
Wheel size
27.5", 29"
Wheels
Rims
Giant XCT 29 wheelset, alloy, 25mm inner
Tires
Maxxis Recon Race 29x2.25, foldable, TLR, EXO, tubeless
Spokes
Sapim
Rear hub
Shimano Boost [F] 15x110 [R] 12x148, sealed bearing
Front hub
Shimano Boost [F] 15x110 [R] 12x148, sealed bearing

Geometry

Size SM MD LG
a
Seat tube length
380,0
431,0
475,0
b
Seat tube angle
73,5º
73,5º
73,5º
c
Top tube length
592,0
611,0
632,0
d
Head tube length
95,0
95,0
105,0
e
Head tube angle
69,5º
69,5º
70,0º
f
Rake
43,0
43,0
43,0
g
Trail
94,9
94,9
94,9
h
Wheelbase
1084,0
1103,0
1125,0
i
Chainstay length
422,0
422,0
422,0
j
Bottom bracket drop
58,0
58,0
58,0
k
Stack height
601,0
601,0
610,0
l
Reach
413,0
432,0
450,0
m
Standover height
734,0
761,0
788,0
x
Bottom bracket height
316,0
316,0
316,0
y
Front center
668,0
687,0
709,0
