Giant XTC Advanced 29 3 2017
Groupset
SRAM NX
Frame material
Carbon
Wheel size
29"
Suspension type
Hardtail
Front travel
100mm

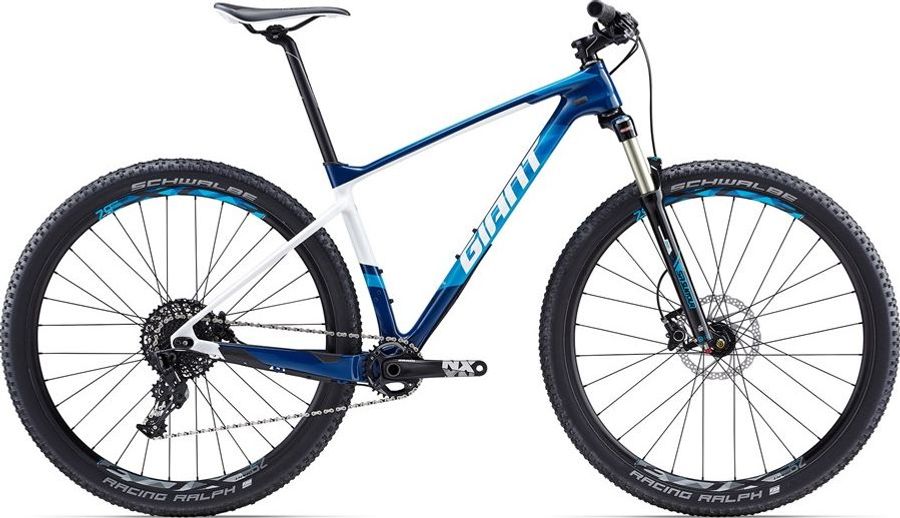

About the Giant XTC Advanced 29 3 2017
The Giant XTC Advanced 29 3 2017 is a Hardtail Cross Country Mountain Bike with a carbon frame. Equipped with a SRAM NX drivetrain of 11 gears (1x11). Its features include boost 148 e hydraulic disc brakes.
Features
Boost 148
More info
Boost 148
Hydraulic disc brakes
More info
Hydraulic disc brakes
Specifications
|
Steam
|
Giant Connect
|
|---|---|
|
Saddle
|
Giant Contact Forward
|
|
Seatpost
|
Giant Connect, 27.2mm
|
|
Handlebar
|
Giant Connect Trail, 31.8mm
|
|
Brake lever
|
Shimano M365
|
|
Brakes
|
Shimano Altus BR-M365
|
|
Crankset
|
SRAM NX, 30T
|
|---|---|
|
Shifter
|
SRAM NX
|
|
Bottom bracket
|
SRAM GXP, Press fit
|
|
Rear derailleur
|
SRAM NX
11s
322 g
|
|
|
|
|
Cassette
|
SRAM PG-1130
11s
|
|
11-28t:11,12,13,14,15,16,17,19,22,25,28 11-32t:11,12,13,14,15,17,19,22,25,28,32 11-36t:11,12,13,15,17,19,22,25,28,32,36 11-42t: 11,13,15,17,19,22,25,28,32,36,42 11-28t 11-32t 11-36t 11-42t |
|
|
Chain
|
KMC X11
|
|
Frame
|
Advanced-grade composite w/ horizontal dropouts
|
|---|---|
|
Front suspension
|
SR Suntour Raidon
|
|
Rims
|
Giant XC-3
|
|---|---|
|
Tires
|
Schwalbe Racing Ralph, 29x2.25, Performance, Folding
|
|
Spokes
|
Stainless Steel, 14g
|
|
Rear hub
|
Giant Sport Tracker Disc, [F] 15mm thru-axle 28h, [R] Boost 148x12mm 32h
|
|
Front hub
|
Giant Sport Tracker Disc, [F] 15mm thru-axle 28h, [R] Boost 148x12mm 32h
|
Geometry
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
|
a
Seat tube length
|
390,0
|
440,0
|
490,0
|
535,0
|
|
b
Seat tube angle
|
73,0º
|
72,5º
|
72,0º
|
72,0º
|
|
c
Top tube length
|
592,0
|
612,0
|
632,0
|
652,0
|
|
d
Head tube length
|
95,0
|
95,0
|
105,0
|
115,0
|
|
e
Head tube angle
|
70,0º
|
70,0º
|
70,0º
|
70,0º
|
|
f
Rake
|
51,0
|
51,0
|
51,0
|
51,0
|
|
g
Trail
|
82,0
|
82,0
|
82,0
|
82,0
|
|
h
Wheelbase
|
1081,0
|
1095,0
|
1109,0
|
1129,0
|
|
i
Chainstay length
|
432,0
|
432,0
|
432,0
|
432,0
|
|
j
Bottom bracket drop
|
60,0
|
60,0
|
60,0
|
60,0
|
|
k
Stack height
|
619,0
|
619,0
|
628,0
|
638,0
|
|
l
Reach
|
405,0
|
419,0
|
430,0
|
-
|
|
m
Standover height
|
746,0
|
772,0
|
804,0
|
834,0
|
|
x
Bottom bracket height
|
314,0
|
314,0
|
314,0
|
314,0
|
|
y
Front center
|
656,0
|
670,0
|
684,0
|
704,0
|
