Giant XTC Advanced + 2020

MTB Trail
Groupset
SRAM SX Eagle
Frame material
Carbon
Wheel size
27,5"
Suspension type
Hardtail
Front travel
130mm

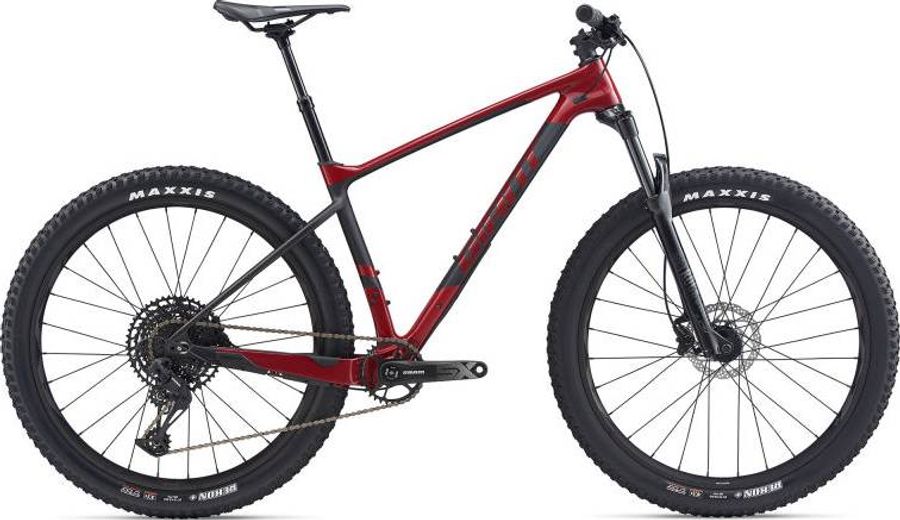

Giant XTC Advanced + 2020

About the Giant XTC Advanced + 2020

The Giant XTC Advanced + 2020 is a Hardtail Trail Mountain Bike with a carbon frame. Equipped with a SRAM SX Eagle drivetrain. Its features include dropper seatpost, boost 110 , and hydraulic disc brakes.

Features

The Giant XTC Advanced + 2020 has 5 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
tubeless-ready
Tubeless ready More info

Specifications

Components
Steam
Giant Contact
Saddle
Giant Contact (neutral)
Seatpost
JD YSP11 dropper post with remote
Handlebar
Giant Connect Trail, 780x31.8
Brake lever
Shimano MT401
Brakes
Shimano BR-MT400 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Secondary color
Silver
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT400
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin
Piston
2
Piston material
Resin
Recommended brake lever
BL-MT400
BL-MT401
BL-MT402-3A
Recommended disc brake rotor
SM-RT30*
SM-RT54*
SM-RT56*
Drivetrain
Crankset
SRAM SX Eagle DUB, 32t
Shifter
SRAM SX Eagle
Bottom bracket
SRAM DUB, press fit
Cassette
SRAM SX Eagle
Chain
SRAM SX Eagle
Rear derailleur
SRAM SX Eagle 12s
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
50
Model
RD-SX-1-A1
Name
SX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Frameset
Frame
Advanced-Grade Composite with horizontal dropouts
Front suspension
RockShox Judy Silver TK Solo Air
Color
Diffusion Black, Gloss Black
Damper type
TurnKey
fork offset
42mm (27.5"), 51mm (27.5"), 51mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
160mm
Model
FS-JDYS-TK-A2
Name
Judy Silver TK
Spring
Solo Air
Travel (mm)
100mm, 120mm, 130mm, 80mm
Upper tube type
30mm straight wall steel
Wheel size
27.5", 29"
Wheels
Rims
Giant AM+ 27.5” tubeless ready sleeve-joint rim, 35mm inner width
Tires
Maxxis Rekon+ 27.5x2.8, EXO, TR, tubeless
Spokes
Sapim
Rear hub
Giant Tracker Performance, sealed bearing
Front hub
Giant Tracker Performance, sealed bearing

Geometry

Size SM MD LG XL
a
Seat tube length
390,0
440,0
490,0
535,0
b
Seat tube angle
72,0º
71,5º
71,0º
71,0º
c
Top tube length
595,0
615,0
635,0
655,0
d
Head tube length
95,0
95,0
105,0
115,0
e
Head tube angle
69,0º
69,0º
69,0º
69,0º
f
Rake
51,0
51,0
51,0
51,0
g
Trail
88,0
88,0
88,0
88,0
h
Wheelbase
1,1e3
1114,0
1128,0
1149,0
i
Chainstay length
440,0
440,0
440,0
440,0
j
Bottom bracket drop
55,0
55,0
55,0
55,0
k
Stack height
625,0
625,0
635,0
644,0
l
Reach
395,0
410,0
421,0
438,0
m
Standover height
747,0
771,0
803,0
833,0
x
Bottom bracket height
300,0
300,0
300,0
300,0
y
Front center
666,0
680,0
694,0
715,0
