Giant XTC Advanced +2 2019

MTB Trail
Groupset
SRAM NX Eagle
Frame material
Carbon
Wheel size
27,5"
Suspension type
Hardtail
Front travel
120mm

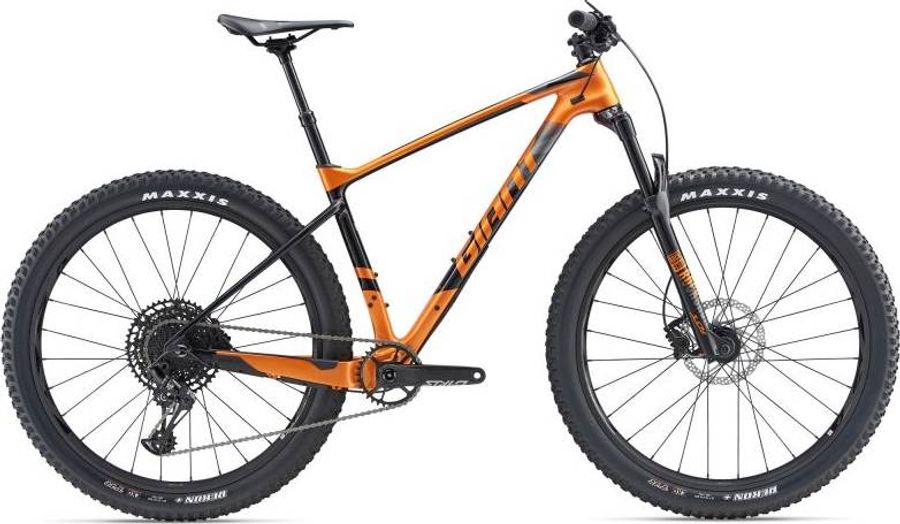

Giant XTC Advanced +2 2019

About the Giant XTC Advanced +2 2019

The Giant XTC Advanced +2 2019 is a Hardtail Trail Mountain Bike with a carbon frame. Equipped with a SRAM NX Eagle drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and boost 148.

Features

The Giant XTC Advanced +2 2019 has 6 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
cubo-traseiro-boost
Boost 148 More info
freio-hidraulico
Hydraulic disc brakes More info
tapered-head-tube
Tapered head tube More info
tubeless-ready
Tubeless ready More info

Specifications

Components
Steam
Giant Connect
Saddle
Giant Contact (neutral)
Seatpost
Tranz X YSP-11 dropper post, under-bar remote
Handlebar
Giant Connect Trail, 780 x 31.8mm
Brake lever
Shimano MT-501
Brakes
Shimano BR-MT500 Hydraulic disc brake 2 piston
Brake hose color kit
Black
Brake hose kit
SM-BH59-JK-SS
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Aluminum
Caliper fixing bolt anti loosen method
Snap ring
Caliper fixing bolt material
Steel
Caliper fixing bolt tool size
5 mm
Primary color
Black
Hose joint
Straight
J-Kit spec for OEM
Model
BR-MT500
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad standard
B03S Resin
Pad mount
Split pin (stainless steel)
Piston
2
Piston material
Resin
Recommended disc brake rotor
SM-RT54*
SM-RT56*
Drivetrain
Crankset
TruVativ Stylo 6k Eagle Dub, Boost, 32
Shifter
SRAM NX Eagle, 1x12
Bottom bracket
SRAM GXP Dub Press Fit
Chain
SRAM GX Eagle 244 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Black
Color outer link
Silver
Compat speed
12s-Eagle
Inner link finish
Black Oxide
Model
CN-EAGL-GX-A1
Name
GX Eagle Chain
Outer link finish
Nickel
Pin variant
Solid Pin
Weight based on
114 links
Weight
244
Rear derailleur
SRAM NX Eagle 12s 339 g
Cable pull ratio
X-actuation
Cage
Long
Cage material
Steel
Color
Black
Max tooth
50
Model
RD-NX-1-B1
Name
NX Eagle Rear Derailleur
Pulley bearings material
Steel
Speed
12s
Weight
339
Cassette
SRAM NX Eagle
Frameset
Frame
Advanced-Grade Composite with horizontal dropouts
Front suspension
RockShox Judy Gold RL Solo Air
Color
Diffusion Black, Gloss Black
Damper type
Motion Control
fork offset
42mm (27.5"), 51mm (27.5"), 51mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
160mm
Model
FS-JDYG-RL-A2
Name
Judy Gold RL
Spring
Solo Air
Travel (mm)
100mm, 120mm, 80mm
Upper tube type
30mm straight wall aluminum
Wheel size
27.5", 29"
Wheels
Rims
Giant AM+ 27.5, tubeless ready, sleeve-joint rim, 35mm inner width
Tires
Maxxis Rekon+ 27.5x2.8, 60 tpi, EXO, TR, tubeless
Spokes
Sapim
Rear hub
[F] Giant Tracker Performance Boost 15x110mm, sealed bearing [R] Giant Tracker Performance Boost 12x148, sealed bearing
Front hub
[F] Giant Tracker Performance Boost 15x110mm, sealed bearing [R] Giant Tracker Performance Boost 12x148, sealed bearing

Geometry

Size SM MD LG XL
a
Seat tube length
390,0
440,0
490,0
535,0
b
Seat tube angle
72,0º
71,5º
71,0º
71,0º
c
Top tube length
595,0
615,0
635,0
655,0
d
Head tube length
95,0
95,0
105,0
115,0
e
Head tube angle
69,0º
69,0º
69,0º
69,0º
f
Rake
51,0
51,0
51,0
51,0
g
Trail
88,0
88,0
88,0
88,0
h
Wheelbase
1,1e3
1114,0
1128,0
1149,0
i
Chainstay length
440,0
440,0
440,0
440,0
j
Bottom bracket drop
55,0
55,0
55,0
55,0
k
Stack height
625,0
625,0
635,0
644,0
l
Reach
395,0
410,0
421,0
438,0
m
Standover height
747,0
771,0
803,0
833,0
x
Bottom bracket height
300,0
300,0
300,0
300,0
y
Front center
666,0
680,0
694,0
715,0
