Giant XTC Advanced SL 29 0 2020

MTB Cross Country
Groupset
SRAM XX1 Eagle AXS
Frame material
Carbon
Wheel size
29"
Suspension type
Hardtail
Weight
8,94 kg
Front travel
100mm
Giant XTC Advanced SL 29 0 2020

About the Giant XTC Advanced SL 29 0 2020

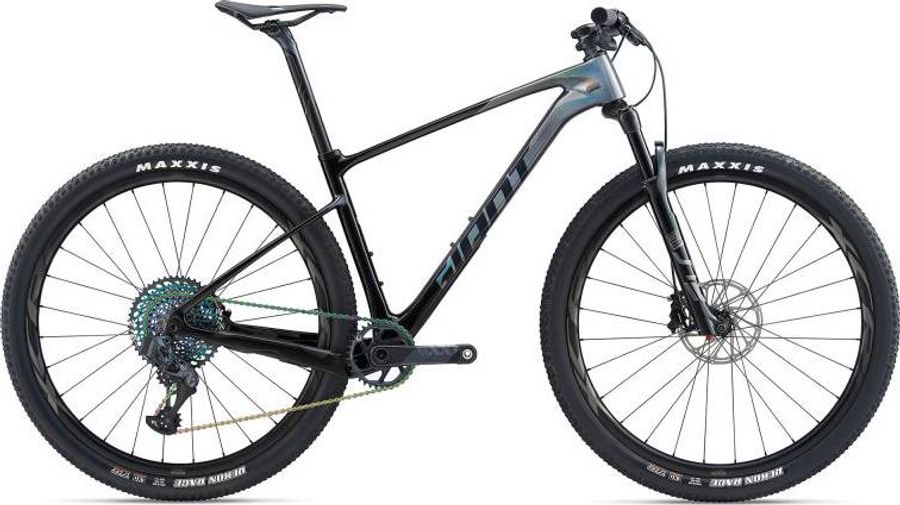

The Giant XTC Advanced SL 29 0 2020 is a Hardtail Cross Country Mountain Bike with a carbon frame. Equipped with a SRAM XX1 Eagle AXS drivetrain. Its features include boost 110 e hydraulic disc brakes. The bike weighs approximately 8,94 kg.

Features

The Giant XTC Advanced SL 29 0 2020 has 2 features listed below.
cubo-dianteiro-boost
Boost 110 More info
freio-hidraulico
Hydraulic disc brakes More info

Specifications

Components
Steam
Giant Contact SLR, composite
Saddle
Giant Contact SLR (forward)
Seatpost
Giant Contact SLR, composite, 30.9
Handlebar
Giant Contact SLR XC Flat, composite 750x31.8
Brake lever
SRAM Level Ultimate
Brakes
SRAM Level Ultimate Hydraulic 317 g
Application
MTB
Blade material
Carbon
Bracket disk brake
Direct mount DIR, Flat Mount 20mm offset, Flat Mount no offset, Intl Std(140mm Rear,160mm Frt rotor) 0IS, Intl Std(160mm Rear,180mm Frt rotor) 20I, Intl Std(170mm Rear rotor) 30I, Intl Std(180mm Rear,200mm Frt rotor) 40I, Intl Std(200mm Rear rotor) 60I, Post mount (10mm spacer) 10S, Post mount (20mm bracket) 20P, Post mount (20mm spacer) 20S, Post mount (30mm bracket) 30P, Post mount (40mm bracket) 40P
Brake type
Hydraulic
Color
Black Anodized, Gold
Model
DB-LVL-ULT-A1
Name
Level Ultimate
Orientation
Front, Rear
Pad type disc
Aluminum-backed organic, Steel-backed metal sintered
Weight based on
Direct Mount (Ti Bolts), 800mm hose, 160mm CLX Rotor (Ti Bolts)
Weight
317
Drivetrain
Crankset
SRAM XX1 Eagle AXS DUB, 34t with MRP 1x Carbon
Shifter
SRAM XX1 Eagle AXS
Bottom bracket
SRAM DUB, press fit
Cassette
SRAM X01 Eagle
Rear derailleur
SRAM XX1 Eagle AXS 12s
Cage material
Carbon
Color
Black
Max tooth
52
Model
RD-XX-1E-A1
Name
XX1 Eagle AXS derailleur
Pulley bearings material
Steel
Speed
12s
Chain
SRAM XX1 Eagle 239 g
Chain connector
PowerLock
Chain length links
126 links
Color inner link
Black, Gold
Color outer link
Black, Gold
Compat speed
12s-Eagle
Inner link finish
Chrome plated +PVD
Model
CN-EAGL-XX1-A1
Name
XX1 Eagle Chain
Outer link finish
Nickel+PVD
Pin variant
Hollow Pin
Weight based on
114 links
Weight
239
Frameset
Frame
Advanced SL-Grade Composite
Front suspension
RockShox SID Ultimate DebonAir 1582 g
Color
Gloss Black, Gloss Blue
Damper type
Charger 2 RLC
fork offset
42mm (27.5"), 42mm (29"), 51mm (29")
Max tire width (mm)
81
Maximum rotor size
220mm
Minimum rotor size
160mm
Model
FS-SID-ULT-B4
Name
SID Ultimate
Spring
DebonAir
Travel (mm)
100mm, 120mm
Upper tube type
32mm straight wall aluminum
Weight based on
27.5" BOOST, 100mm, Maxle Stealth
Weight
1582
Wheel size
27.5", 29"
Wheels
Rims
Giant XCR-0 29 Composite WheelSystem
Tires
Maxxis Recon Race 29x2.25, foldable, TLR, EXO, tubeless
Spokes
Giant XCR-0 29 WheelSystem
Rear hub
Giant XCR-0 29 WheelSystem
Front hub
Giant XCR-0 29 WheelSystem

Geometry

Size MD LG XL
a
Seat tube length
431,0
475,0
525,0
b
Seat tube angle
73,5º
73,5º
73,5º
c
Top tube length
611,0
632,0
662,0
d
Head tube length
95,0
105,0
115,0
e
Head tube angle
69,5º
70,0º
70,0º
f
Rake
43,0
43,0
43,0
g
Trail
94,9
94,9
94,9
h
Wheelbase
1103,0
1125,0
1156,0
i
Chainstay length
422,0
422,0
422,0
j
Bottom bracket drop
58,0
58,0
58,0
k
Stack height
601,0
610,0
629,0
l
Reach
432,0
432,0
474,0
m
Standover height
761,0
788,0
826,0
x
Bottom bracket height
316,0
316,0
316,0
y
Front center
687,0
709,0
740,0
