Giant XTC Advanced SL 29 0 2021

MTB Cross Country
Groupset
Shimano XTR
Frame material
Carbon
Wheel size
29"
Suspension type
Hardtail
Front travel
100mm

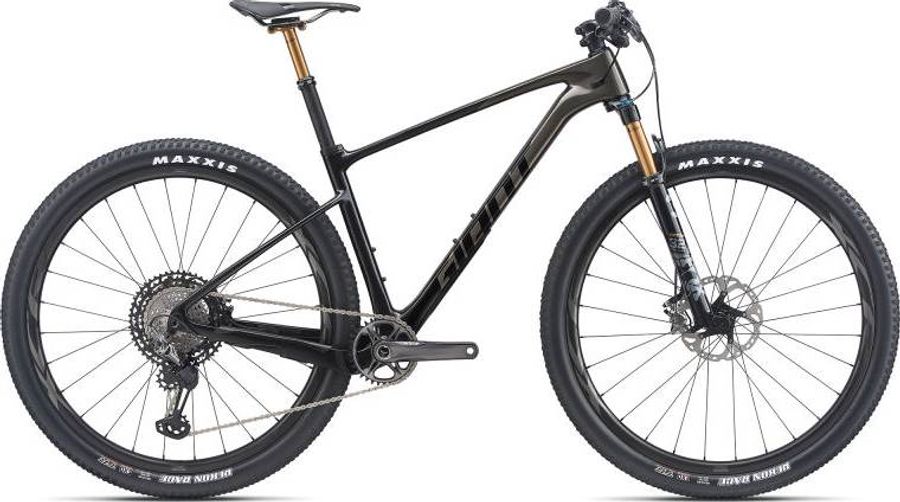

Giant XTC Advanced SL 29 0 2021

About the Giant XTC Advanced SL 29 0 2021

The Giant XTC Advanced SL 29 0 2021 is a Hardtail Cross Country Mountain Bike with a carbon frame. Equipped with a Shimano XTR drivetrain of 12 gears (1x12). Its features include dropper seatpost, boost 110 , and hydraulic disc brakes.

Features

The Giant XTC Advanced SL 29 0 2021 has 4 features listed below.
canote-retratil
Dropper seatpost More info
cubo-dianteiro-boost
Boost 110 More info
freio-hidraulico
Hydraulic disc brakes More info
trava-remota-guidao
Remote lockout More info

Specifications

Components
Steam
Giant Contact SLR, 8 degree
Saddle
Giant Contact SL, Neutral
Seatpost
Fox Transfer Factory dropper, 30.9mm
Handlebar
Giant Contact SLR XC Flat, 31.8mm
Brake lever
Shimano XTR hydraulic
Brakes
Shimano XTR BR-M9000 316.1 g Hydraulic disc brake 2 piston
Average weight (g)
316.1
Brake hose color kit
Black
Brake hose kit
SM-BH90-SBM
Brake type
Hydraulic disc brake
Caliper finish
Painted
Caliper material
Magnesium
Caliper fixing bolt anti loosen method
Wiring
Caliper fixing bolt material
Ti
Caliper fixing bolt tool size
** 4 mm
Primary color
Series color
Hose joint
Banjo
ICE TECHNOLOGIES pad compatible caliper
J-Kit spec for OEM
Model
BR-M9000
Mount type
Post-type
Oil
SHIMANO Mineral
One way bleeding
Pad option
J02A Resin
J03A Resin
Pad option
J04C Metal
Pad standard
G02A Resin
G03A Resin
Pad standard
G04Ti Metal
Pad mount
Pad axle
Piston
2
Piston material
Ceramic
Recommended disc brake rotor
SM-RT99
* SM-RT99-A
Drivetrain
Crankset
Shimano XTR, 34T
Shifter
Shimano XTR, 12sp
Bottom bracket
Shimano press fit
Cassette
Shimano Deore XT CS-M8100-12 HYPERGLIDE+
Aluminum gear finish
Anodized
Aluminum gear pieces
2
Aluminum spider arm finish
Painted
Aluminum spider arm pieces
1
Combination names
10-45T
10-51T
Compatible chain
HG 12-speed
Lock ring finish
Anodized
Lock ring material
Aluminum
Model
CS-M8100-12
Steel gear finish
Plated
Steel gear pieces
10
Type
HYPERGLIDE+
Weights
10-45T: 461g
10-51T: 470g
Chain
Shimano CN-M9100 242 g
Average weight (g)
242
Chromizing treatment roller link pin
Model
CN-M9100
Pin link plate
SIL-TEC
Roller
SIL-TEC
Roller link plate
Chromizing
Type
HG 12-speed
Rear derailleur
Shimano XTR RD-M9100-SGS 240 g SGS 12s
Average weight (g)
240
B axle finish
Anodized
B axle hollow
B axle material
Aluminum
Bracket body finish
Anodized
Bracket body material
Aluminum
Compatible chain
HG 12-speed
Lower pulley max
51T
Lower pulley min
51T
Model
RD-M9100-SGS
P axle material
Steel
pulley.guide_pulley_bearing
Sealed bearing
pulley.screws_material
Stainless steel
pulley.sunken_type_pulley_screw
Pulley teeth
13T
pulley.tension_pulley_bearing
Sealed bearing
Pulley cage
SGS
Speeds
12
Upper pulley max
10T
Upper pulley min
10T
Total capacity
41T
Frameset
Frame
Advanced SL grade composite, Boost
Front suspension
Fox 32 Float Factory
Wheels
Rims
Giant XCR 0 29 Hookless Composite, DBL, WheelSystem, 28H
Tires
Maxxis Rekon Race 120tpi, TR, EXO, Folding, 29x2.25’’
Spokes
Giant Round DBL
Rear hub
Giant XCR 0, 28H
Front hub
Giant XCR 0, 28H

Geometry

Size SM MD LG XL
a
Seat tube length
380,0
431,0
475,0
525,0
b
Seat tube angle
73,5º
73,5º
73,5º
73,5º
c
Top tube length
592,0
611,0
632,0
662,0
d
Head tube length
95,0
95,0
105,0
115,0
e
Head tube angle
69,5º
69,5º
70,0º
70,0º
f
Rake
43,0
43,0
43,0
43,0
g
Trail
94,9
94,9
94,9
94,9
h
Wheelbase
1084,0
1103,0
1125,0
1156,0
i
Chainstay length
422,0
422,0
422,0
422,0
j
Bottom bracket drop
58,0
58,0
58,0
58,0
k
Stack height
601,0
601,0
610,0
629,0
l
Reach
413,0
432,0
450,0
474,0
m
Standover height
734,0
761,0
788,0
826,0
x
Bottom bracket height
316,0
316,0
316,0
316,0
y
Front center
668,0
687,0
709,0
740,0
